3
Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.
We recommend that you pull everything out of the box and lay it out. We have
grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.
x4
x2
x1
x15
x5
x5
x15
x2
x2
x4
For installing the hanger bracket and wiring the fan
For installing the blades
Remote
For installing the housing
For installing the light kit
bag
bag bag
Hunter Pro Tip:
Find a part that is missing or damaged?
Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.

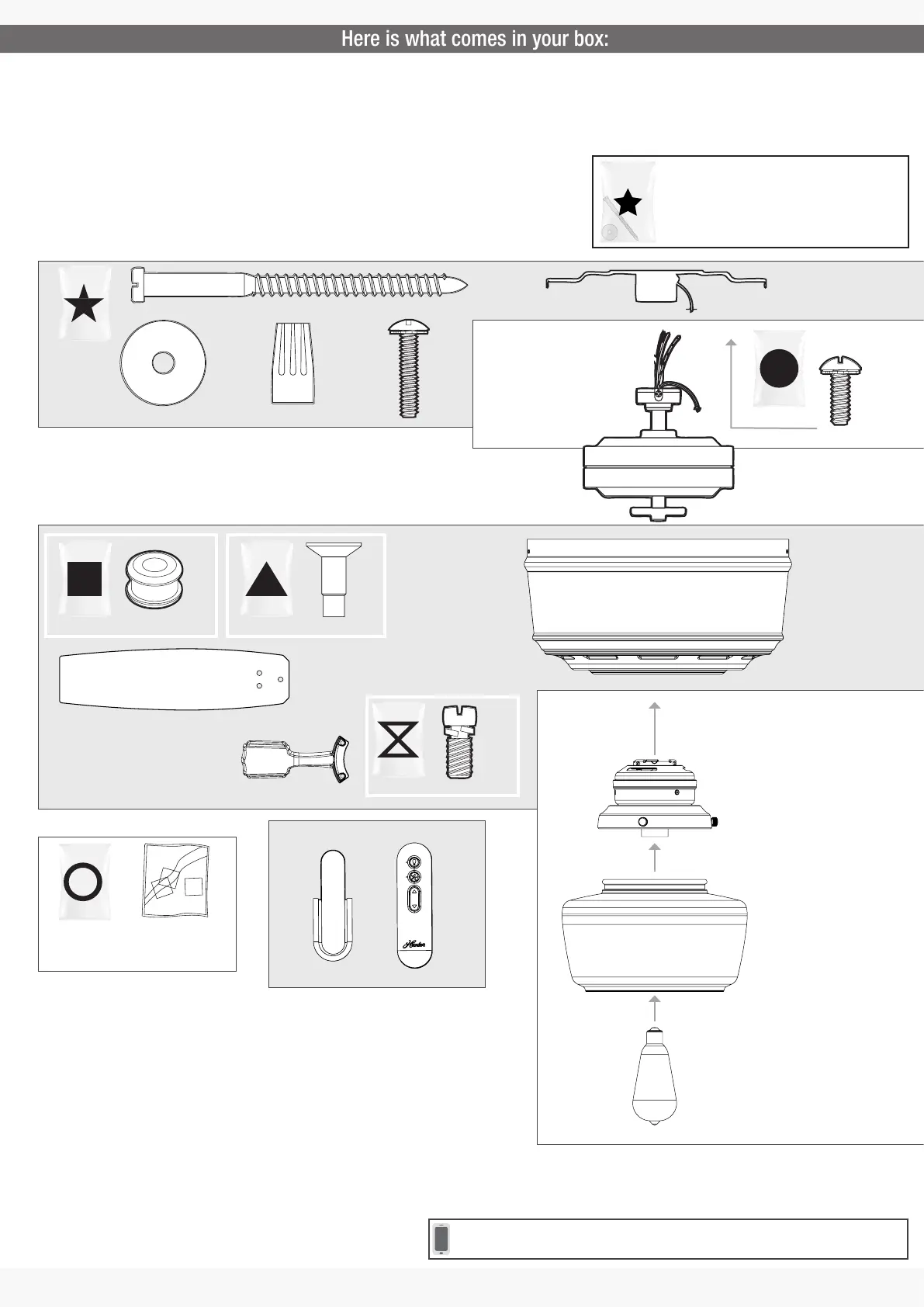

Here is what comes in your box:
bag
Spare Parts
For your convenience,
you may receive extra fasteners.
bag
x10
bag
Motor
Ceiling Bracket
Locking
Screw
Wire Nut
Washer
Wood Screw
Bulb
Glass
Light Fixture
Motor Housing
Blade Arm
Blade
Motor Housing
Screw
Blade Screw
Grommet
Blade Arm Screw
To Next Page
