7
Ceiling Bracket Hanging Fan Wiring Motor Housing Blades Light Remote Troubleshooting

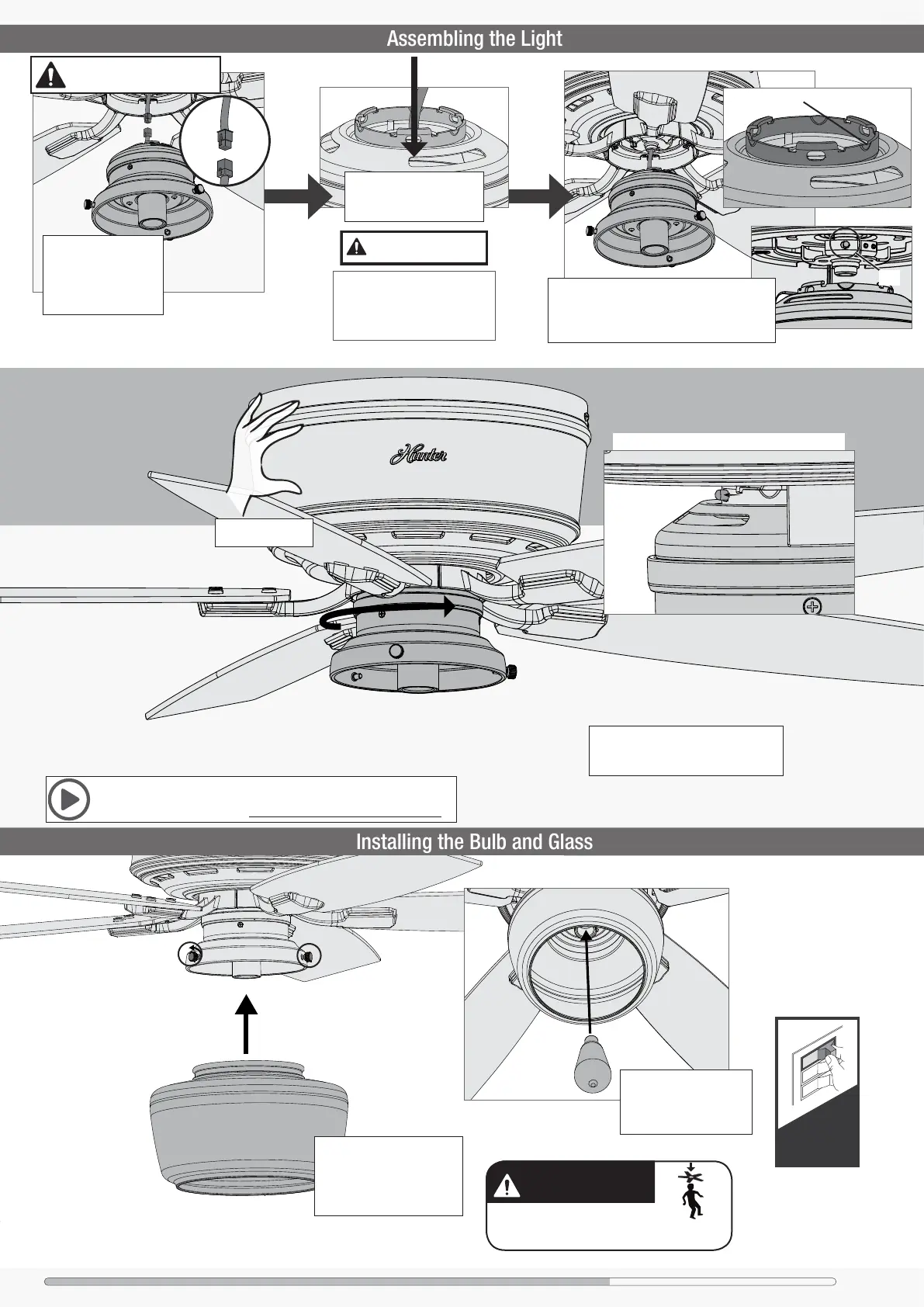

Installing the Bulb and Glass
ON
Turn Power
Need a little more help with assembling this light?
Visit our light kit video at: http://bit.ly/HunterQuickConnect
Some components not shown for visual clarity.
Hold the fan body stationary and rotate
the light xture clockwise to engage the
locking pin.
Lift the glass and attach it
to the light xture using the
three thumbscrews. Tighten
all three screws securely
by hand.
Install the included bulb
into the socket. When
necessary, replace with
bulb of same wattage.
Blade Screw
Grommet
Repeat x5
Blade Arm Screw
Notch
IMPORTANT
Push the connector and
excess wire into the hole at
the top of the light xture.
The connector and excess wiring
must be pushed into the light
xture in order to successfully
mount the light xture to the fan.
Pin
Raise the light kit to the bottom of the fan.
Align the notch on the mounting ring on the
top of the light kit with the pin in the mounting
bracket on the bottom of the fan.
Connect the plugs from
the fan and light xture.
Make sure to line up
the colored markings
on the connectors.
Remove the cardboard plug
guard before proceeding!
HOLD HERE
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
To Next Page
