Check the outlet box:

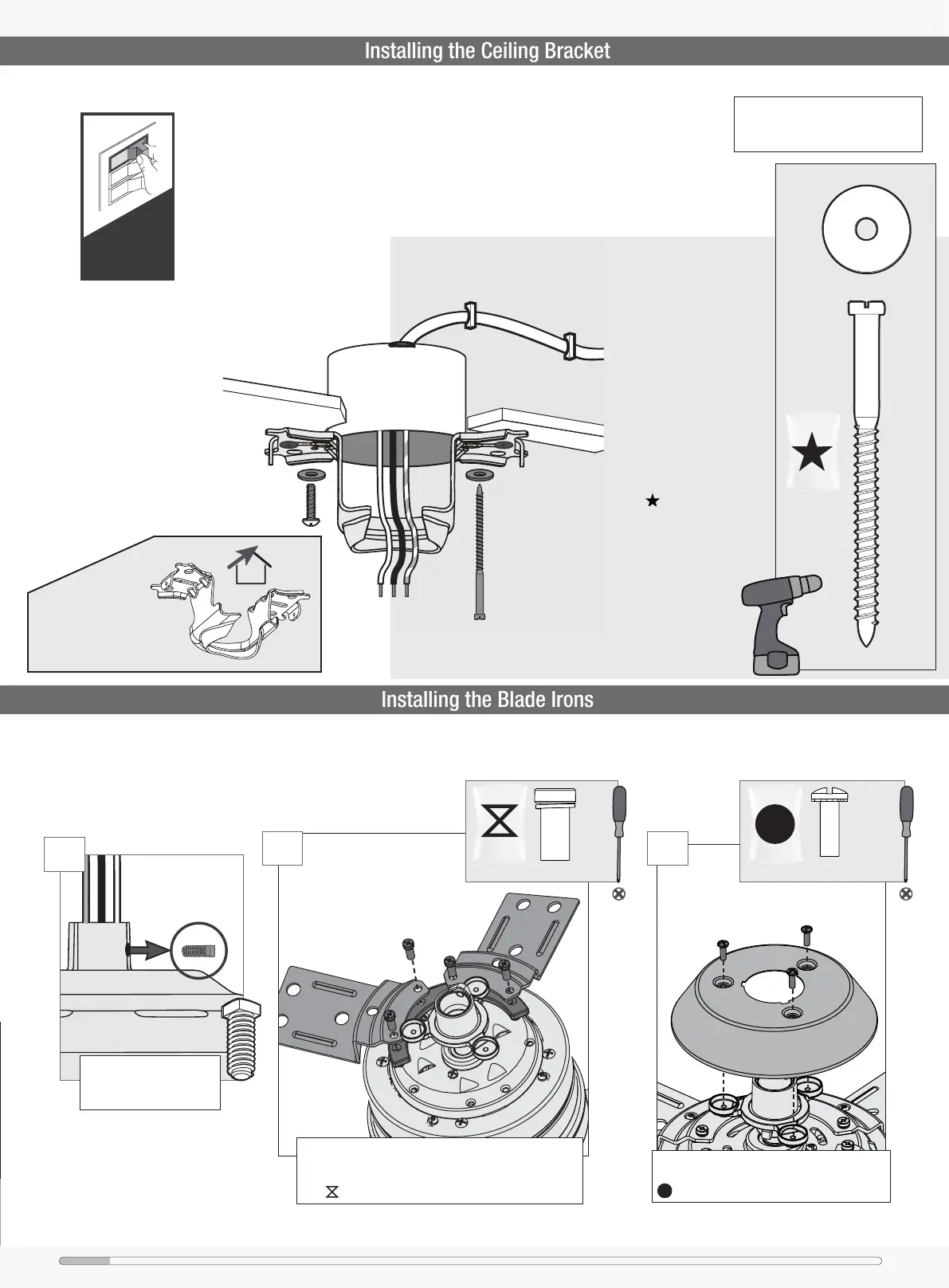

Installing the Ceiling Bracket
Installing the Blade Irons
Use wood screws and
washers (included) when
securing to support structure
with approved electrical
outlet box. Drill 9/64” pilot
holes in support structure
to aid in securing ceiling
bracket with hardware found
in the hardware bag.
Use machine screws
(provided with outlet box)
and washers when securing
to existing ceiling fan-rated
outlet box. Make sure it is
securely installed and is
acceptable for fan support of
31.8 kg (70 lbs) or less.
Option 2:
Wood Screws
Option 1:
Machine Screws
OFF
Turn Power
Do this rst!
The machine screws are the ones
that came with your outlet box.
Hunter Pro Tip:
For angled ceilings,
point opening
toward peak.
ANGLED
MOUNTING TIP
bag
Wood Screw
Washer
x2
x2
You have two options for installation. Pick which one works best for your location. Remove any existing
bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box.
K
E
E
P
!
1
STEP
Remove the pre-installed
setscrew so that the
downrod can be inserted.
Align the spacer with the holes on top of the motor as
shown. Lightly attach both blade irons to the motor
through the spacer with screws found in the hardware
bag , then securely tighten after screws are attached.
8 of 8
Blade Iron Screw
bag
2
STEP
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Upper Switch Housing Reverse
Lower the top housing onto the top of the motor.
Install the three top housing screws found in the
hardware bag.
3 of 3
Top Housing Screw
3
STEP
bag
