Hunter Ellipse 90063 User Manual

6
A13
A
3 Pin
2 Pin
Fan Motor
Light
Light
Green
Black
Black
Red
Red
White
Black
Black
White
White
Bare Copper
Ground
A14
Night Light
Night Light
Switch 1 (AC In)
Main Switch 1 (AC In)
Switch 2 (AC In)
*Option Fan & Main Light Together
*Option
A15
F
1
2
F
A16
G

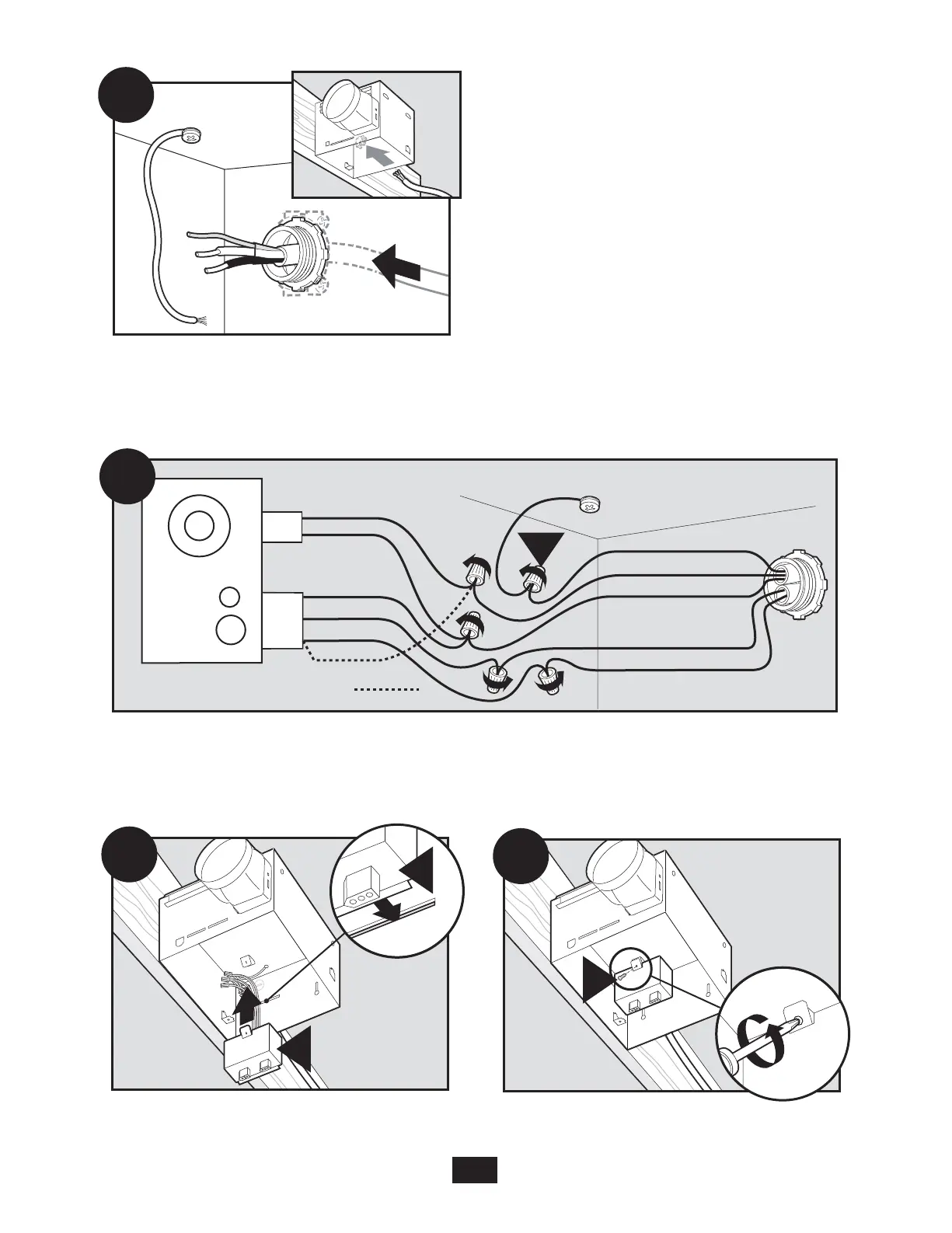

Pull wires through the strain relief.
Connect wires as shown.
Install the wiring cover plate. Make sure all
wiring connections are inside the box or under
the wiring cover plate.
Tighten the wiring cover plate screw.
41722-01 R20200515
