Hunter Gilmour - Assembling the Light Kit

7
1886
1886
Ceiling Bracket Hanging Fan Wiring Canopy Blades Light Bulbs Remote
Installing the Globe
NOTE: Check to ensure
proper engagement.
Attach the globe by lifting and
turning clockwise one third of a
full turn of the globe until it stops.
WARNING
GLOBE FALL HAZARD
To prevent SERIOUS INJURY, make sure that
globe is properly secured.
Install the included bulbs
into the sockets. When
necessary, replace with
bulbs of same wattage.
Lift the globe and align the
notches in the globe with
the tabs in the light kit.
Notch
Tab

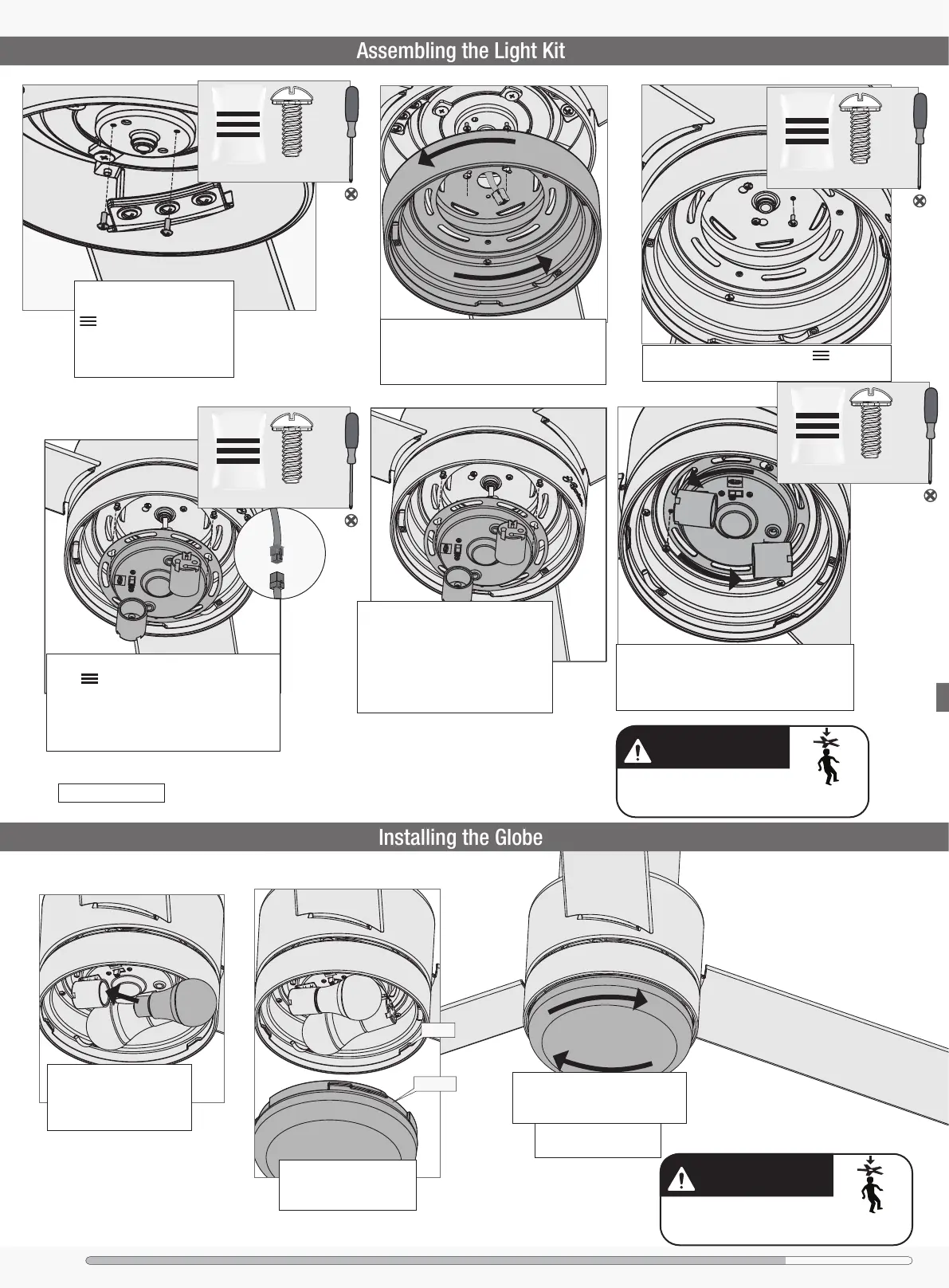

Assembling the Light Kit
Insert the third screw, found in the hardware
bag, into place and then tighten all three screws.
Partially install two light kit
assembly screws, found in the
hardware bag, halfway into
the motor housing as shown.
It does not matter which two
screw holes you choose.
Feed the wire plug through the center hole
of the upper switch housing, then wrap
keyhole slots around the screws and twist
counterclockwise.
WARNING
FAN FALL HAZARD
Make sure all screws are tight to secure
the light xture.
2 of 6
Light Kit Screw
bag
2 of 6
Light Kit Screw
bag
1 of 6
Light Kit Screw
bag
1 of 6
Light Kit Screw
bag
Partially install two of the light kit screws found
in the bag. It does not matter which two
screw holes you choose. Connect the plugs
from the upper and lower switch housings.
Make sure to line up the colored markings on
the connectors.
Align the keyhole slots in the light kit
housing with the two screws. Make
sure all the wires from the fan and the
light kit are snug inside the center of
the light kit, not pinched in between
the upper switch housing and the light
kit or hanging out of the sides.
Turn the light kit counterclockwise until the light
kit screws are rmly situated in the narrow end
of the keyhole slots. Install the third screw and
tighten all three screws securely.
Fan style may vary.
Note:
Installing the Remote Control Cradle
