16

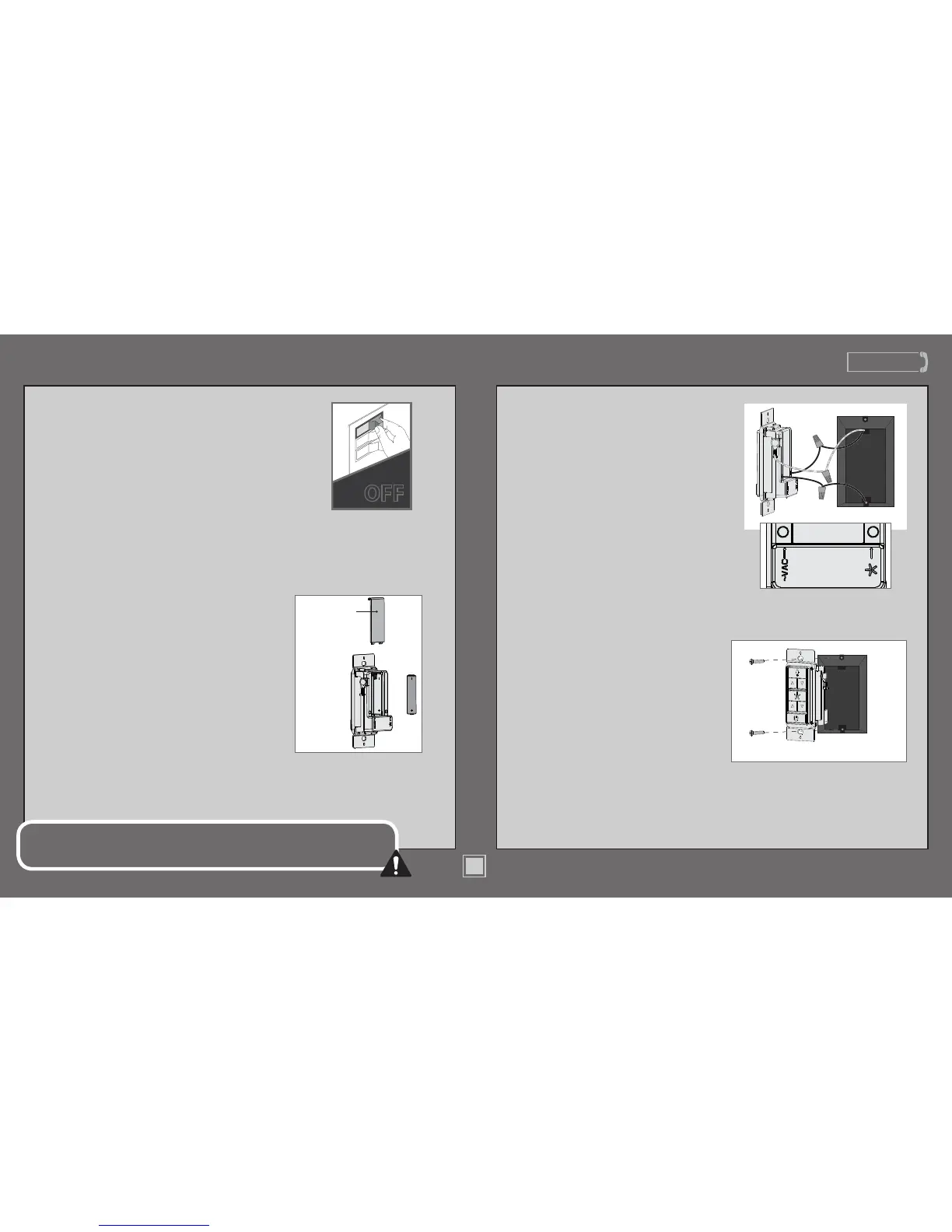

Wall Control
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Ensure the power is OFF at the outlet box
and wall switch location before proceeding
with installation.
Turn Power
OFF
1
Turning off the power
2
Installing the battery
To access the battery compartment, slide
the battery door up.
Replace the used battery with two AAA
batteries when needed.
Battery
Door
3
Wiring the Wall Control
Connect the grounding wire from the wall
control to the ground control from the
switch box using the provided wire nuts.
Connect the “LIVE IN” from the switch
box to the “~VAC” from the wall control
using the provided wire nuts.
Connect the “LIVE OUT” from the switch
box to the “FAN” out from the wall control
using the provided wire nuts.
Push all wires into the switch box.
4
Installing the Wall Control
Install the longer screws through
the slots in the wall control into the
switch box screw holes.
M3641-01 • 12/20/16 • © 2016 Hunter Fan Company
