8
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Glass Remote

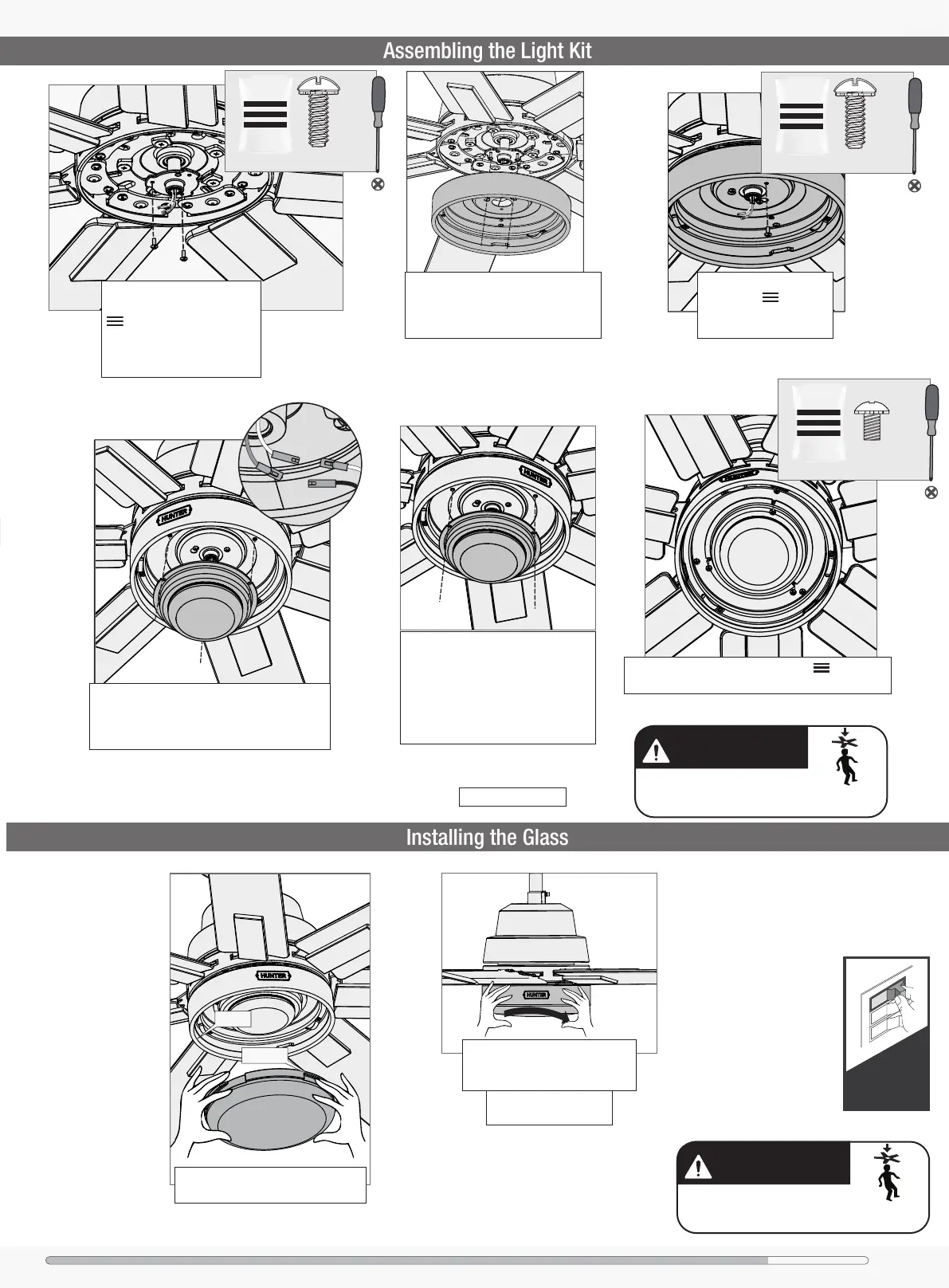

Insert the third screw,
found in the hardware
bag, into place and then
tighten all three screws.
Partially install two light kit
assembly screws, found in the
hardware bag, halfway into
the motor housing as shown.
It does not matter which two
screw holes you choose.
FAN FALL HAZARD
Make sure all screws are tight to secure
the light xture.
Fan style may vary.
Note:
Align the holes of LED assembly with
the holes of the upper switch housing.
Make sure all the wires from the fan
and the light kit are snug inside the
center of the light kit, not pinched in
between the upper switch housing and
the light kit or hanging out of the sides.
Insert the light kit screws, found in the hardware
bag. Tighten all three screws.
PLift the LED assembly and connect the single
pin connectors to the connectors from the fan.
Connect the white wires together. Connect the
blue and black wires together.
Feed the wire plugs through the center
hole of the upper switch housing, then
wrap keyhole slots around the screws
and twist counterclockwise.
1 of 3
Light Kit Screw
bag
2 of 3
Light Kit Screw
bag
ON
Turn Power
Lift the globe and align the notches in
the globe with the tabs in the light kit.
NOTE: Check to ensure
proper engagement.
Attach the globe by lifting and
turning clockwise one third of a
full turn of the glass until it stops.
Notch
Tab
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
3 of 3
Short Light Kit
Screw
bag
To Next Page
