7
8
2 of 2
Short Light Kit
Screw
bag

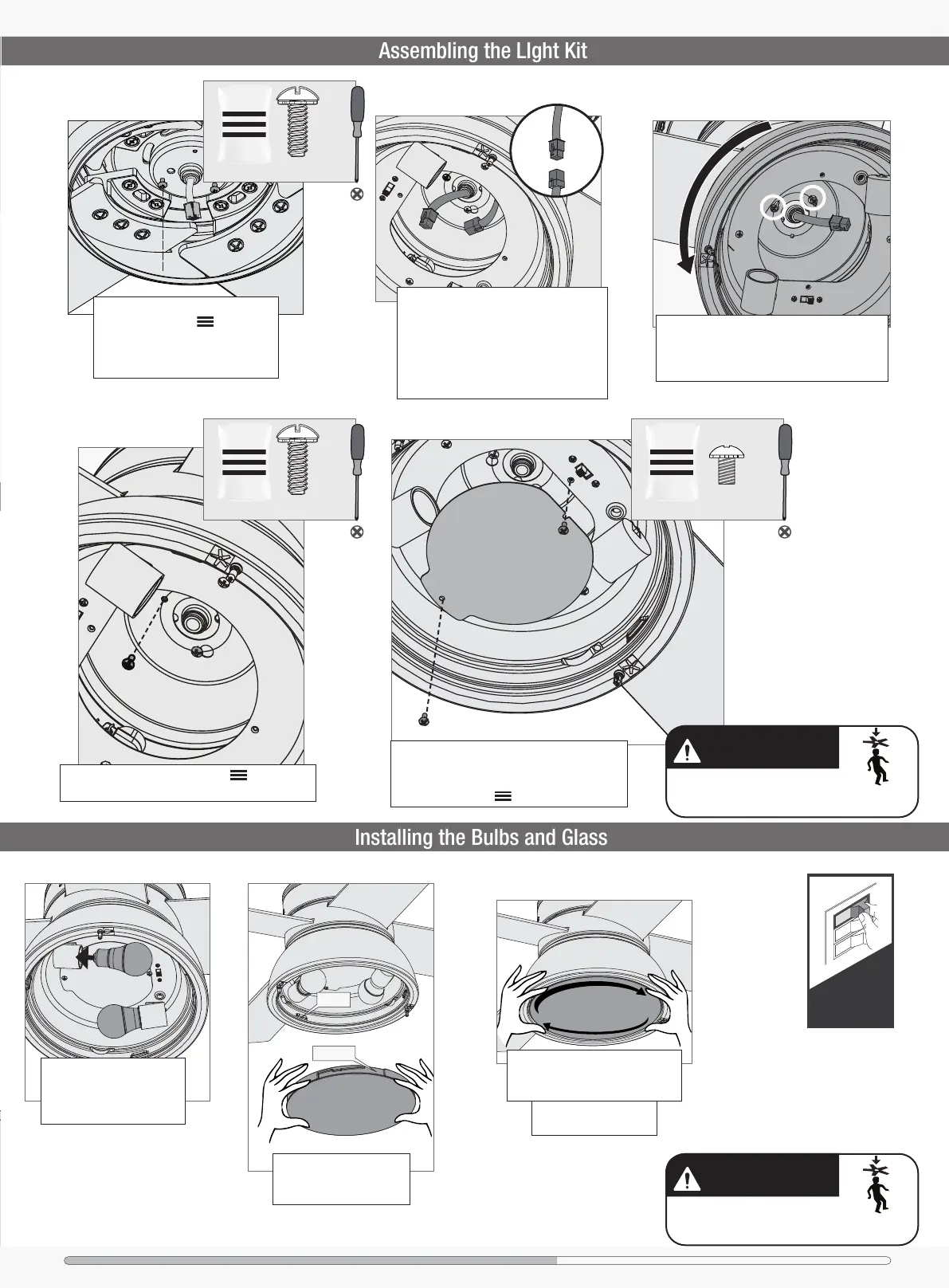

Carefully push all switch housing components
into the switch housing, then install the switch
housing plate using two short light kit assembly
screws, found in the hardware bag.
Partially install two light kit assembly
screws, found in the hardware
bag, halfway into the motor housing
as shown. It does not matter which
two screw holes you choose.
Installing the Bulbs and Glass
ON
Turn Power
Install the included LED
bulbs into the sockets.
When necessary, replace
with bulbs of same wattage.
Lift the globe and align the
notches in the globe with
the tabs in the light kit.
NOTE: Check to ensure
proper engagement.
Attach the globe by lifting and
turning clockwise one third of a
full turn of the glass until it stops.
Notch
Tab
Align the keyhole slots in the top of the light kit
assembly with the partially installed assembly
screws. Wrap the keyhole slots around the
screws and twist counterclockwise.
Feed the 9-pin plug connector coming
from the bottom of the motor housing
through the center hole in the light kit
assembly. Connect it to the plug connector
found in the switch housing area of the
light kit assembly. Make sure to line up
the colored markings on the connectors.
FAN FALL HAZARD
Make sure all screws are tight to secure
the light xture.
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
2 of 3
Light Kit Screw
bag
3 of 3
Light Kit Screw
bag
Insert the third screw, found in the hardware
bag, in place and rmly tighten all the three screws.
