We know wiring is hard. Let’s make it easier.
Follow these steps to get your fan wired quickly and safely. Follow the route below that best matches your wall switch
setup. If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a quali ed electrician.
Blue
Grounding
G
r
e
e
n
/
Y
e
l
l
o
w
S
t
r
i
p
e
Green/Yellow Stripe
Black
Black
Ungrounded
x4
Wire Nut

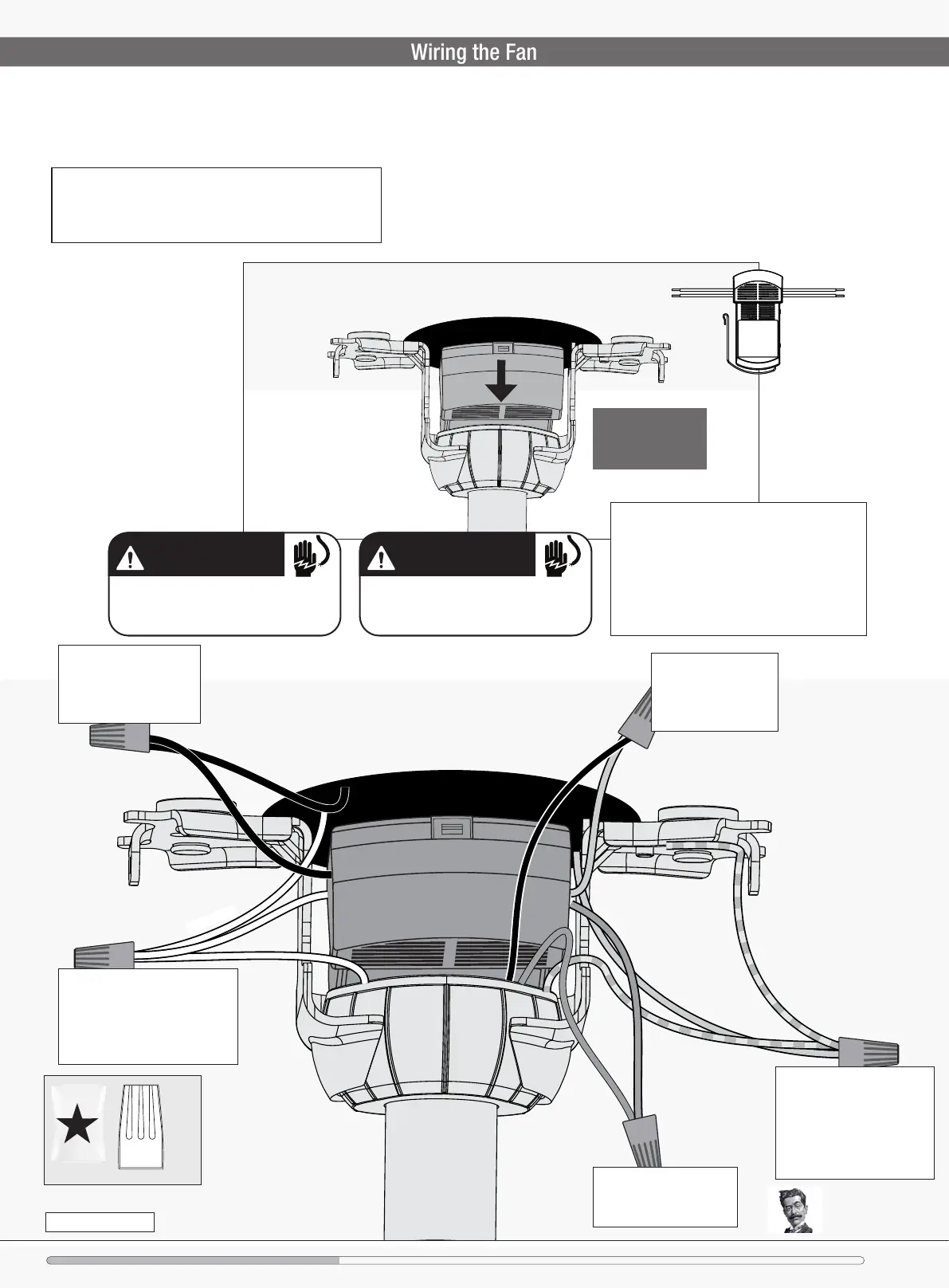

Connect the three
grounding wires (green,
green/yellow stripe, or
bare copper) coming from
the ceiling, downrod, and
hanging bracket.
Connect the yellow
wire from the
receiver to the black
wire from the fan.
Yellow
Connect the blue wire
from the receiver to the
blue wire from the fan.
Connect the white (grounded)
wire from the ceiling to both
the white wire from the
receiver and the white wire
from the fan.
White
White
Grounded
Connect the black
(ungrounded) wire from
the ceiling to the black
wire from the receiver.
Slide the remote
receiver onto the
top of the bracket.
Blue
DR19-01 r091420
Hunter Pro Tip:
Here is how to connect the wires:
Push the bare metal ends of the wires together and slide a wire
nut over them. Then, twist the wire nut clockwise until tight.
Give it a gentle pull to make sure none of the wires are loose.
All wiring must be in accordance with
national and local electrical codes ANSI/NFPA
70. If you are unfamiliar with wiring or in
doubt, consult a quali ed electrician.
The ceiling fan must be grounded. If the
ground wire for the installation site is not
present, immediately STOP installation and
consult a quali ed electrician.
Have extra wiring?
Turn the wires upward and push them carefully
back through the hanger bracket into the outlet
box. Spread the wires apart, with the grounded
wires on one side of the outlet box and the
ungrounded wires on the other side of the outlet
box. Make sure that the wires are still attached
to the wire nuts.
Hunter Pro Tip:
Fan style may vary.
