42489-01 • 02/16/12 • Hunter Fan Company
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
3-1. Unbundle the wires from the fan.
3-2. Insert the downrod through the canopy and canopy trim ring.
Feed the wires from the fan through the downrod on one side of
the pin in the ball.
3-3. Loosen the square head setscrew on the adapter to install the pipe
and ball assembly. Note: When the pipe and ball assembly is fully
installed, 2-3 threads on the pipe will still be visible; this is normal.
Securely retighten the setscrew with a wrench or pliers.
CAUTION: e adapter has a special coating on the threads. Do not
remove this coating; the coating prevents the downrod from unscrewing.
Once assembled, do not remove the downrod.
Note: To hang the fan, you must tilt the canopy to an almost vertical
position so that the canopy slots sit on the ceiling plate hooks.
3-4. Raise the fan and align the slots in the canopy with the hooks on
the ceiling plate.
3-5. Place the slots over the hooks to hang the fan.

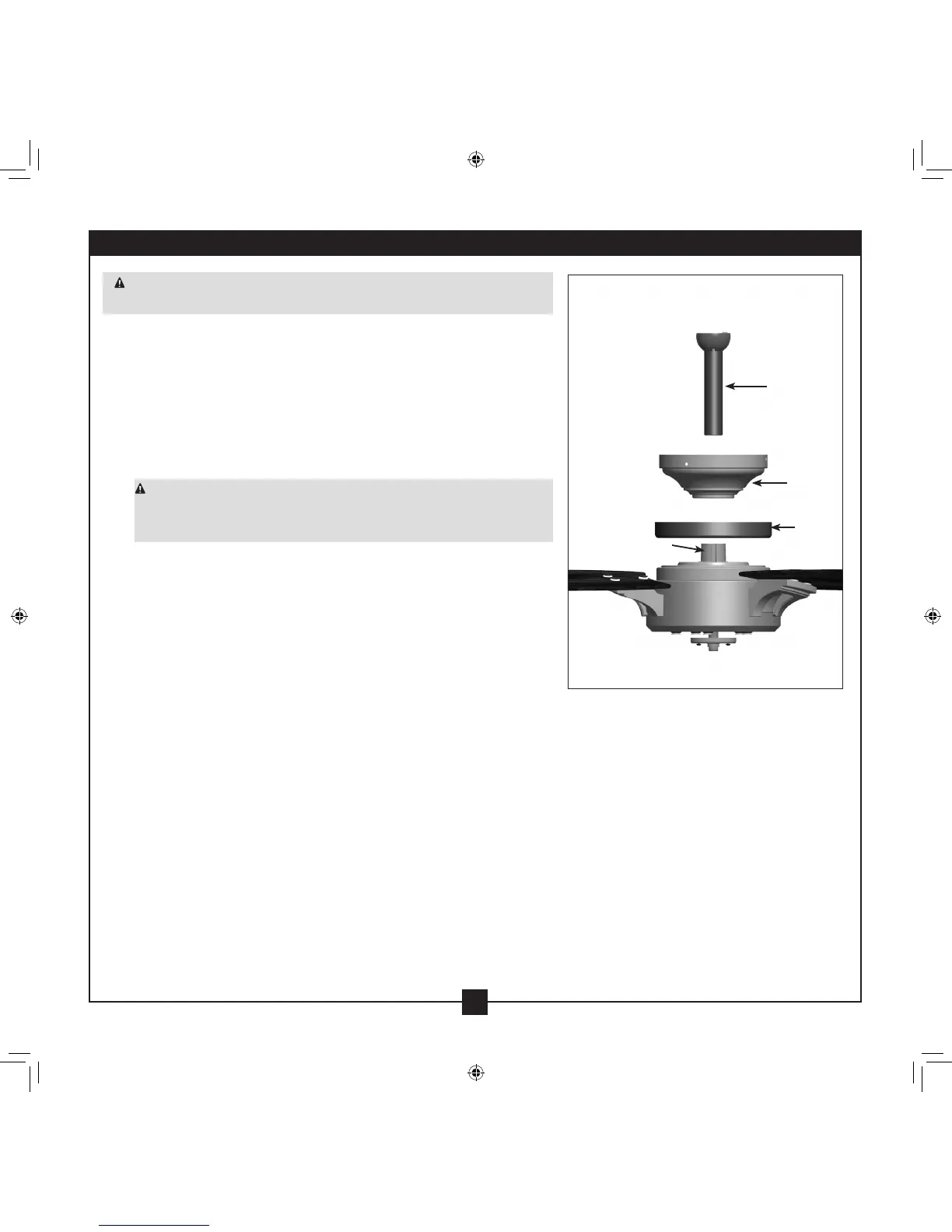

Steps 3-2 – 3-3
Downrod
Canopy
Setscrew
Canopy
Trim Ring
3 • Assembling and Hanging the Fan
To Next Page
