NOTE: When attaching ceiling plate to the outlet box support,
make certain bushings remain in place.
NOTE: Tighten the ceiling plate mounting screws only enough to
provide slight compression of the bushings. Do not overtighten.
Step 4A. Assemble Top Housing
CAUTION: Do not lift motor by wires.
A. Assemble the housing to the hanger adapter using (3) #8-32
screws. See Figures 4C and 4D. First align the (3) raised tabs on
the hanger adaptor with the (3) narrow notches in the top housing.
Make certain the housing sits flat on top of the adaptor. Tighten
the screws securely.
NOTE: Assembly Methods For
Installer’s Choice Hanging System
Your new Hunter fan can be hung in (2) different manners. (1) as
a low profile fan or (2) as a ball type hanging fan. Please read
Steps 5 through 7 and decide which style mounting to use.
Step 4: Installation of Ceiling Plate
A.
Install the (3) rubber bushings into the top of the ceiling
plate by inserting small side of the rubber bushing into the three
holes in the ceiling plate. See Figure 4.
B. Thread the lead wires through the opening in the ceiling
plate and install the ceiling plate to the 2 x 4 brace which sup-
ports the outlet box. Use (2) #10 wood screws 3" long and (2)
flat washers for mounting. Drill (2) pilot holes for the mounting
screws 9/64" diameter. See Figure 4A.
NOTE: When mounting the fan on a vaulted ceiling, make sure
that one set of elongated slots in the ceiling plate is aligned
vertically with the ceiling joist, or horizontally with the cross
brace if a cross brace is used. Be sure one of the threaded screw
holes in the side of the ceiling plate is facing down. See Figure
4B. The hook in the ceiling plate should be in the down position.
When attaching the canopy to the ceiling plate make sure the
two tabs in the center hole of the canopy align vertically so that
the tabs properly engage the two grooves in the hanger ball.
When properly installed, the round screw clearance hole in the
canopy should be facing down.
41228-01 12/95 - 2 - ©1995 HUNTER FAN CO.™

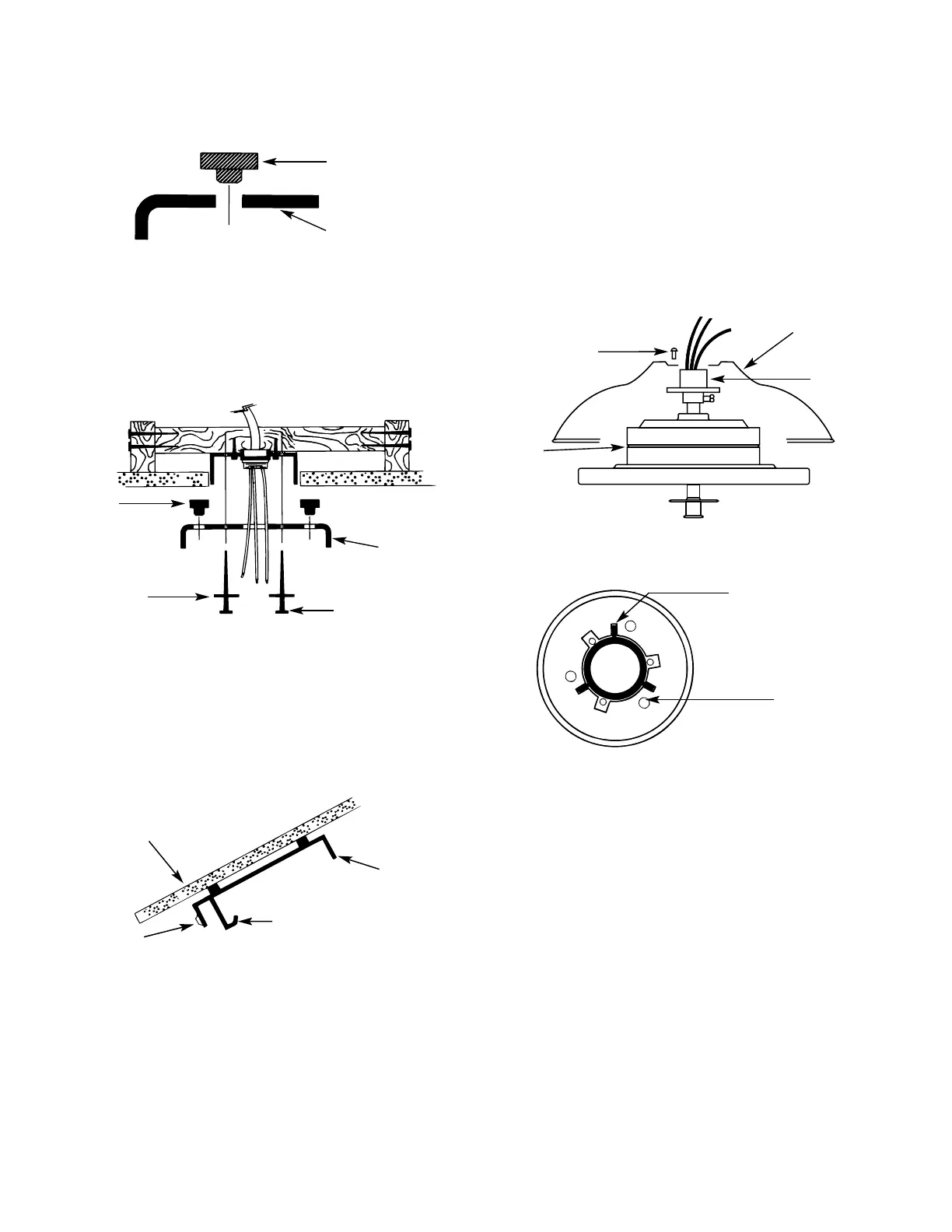

FIGURE 4. Rubber Bushings
FIGURE 4C. Assemble Top Housing
RUBBER
BUSHING
CEILING
PLATE
FIGURE 4A. Installing Ceiling Plate
RUBBER
BUSHING
CEILING
PLATE
FLAT
WASHER
3" WOOD SCREW
VIEW: LOOKING DOWN ON TOP OF FAN
SHOWING TAB AND NOTCH ALIGNMENT
FIGURE 4D. Assembling Top Housing
ALIGN RAISED TABS
ON ADAPTOR WITH
NARROW NOTCHES ON
TOP HOUSING
ASSEMBLY
SCREW
LOCATIONS
CEILING
PLATE
HOOK
SCREW HOLE
VAULTED
CEILING
Figure 4B. Vaulted Ceiling
TOP
HOUSING
HANGER
ADAPTOR
MOTOR
#8-32
SCREW
