Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Control
Screw light kit screws from the
hardware bag halfway into
the motor housing. It does not
matter which two screw holes
you choose.
Feed the wire plug through the center
hole of the upper switch housing,
then wrap keyhole slots around the
screws and twist counterclockwise.
Insert a third screw, found in the
hardware bag, into place and
then tighten all three screws.
1 of 3
Light Kit Screw
bag
2 of 3
Light Kit Screw
bag
1
STEP
2
STEP
3
STEP

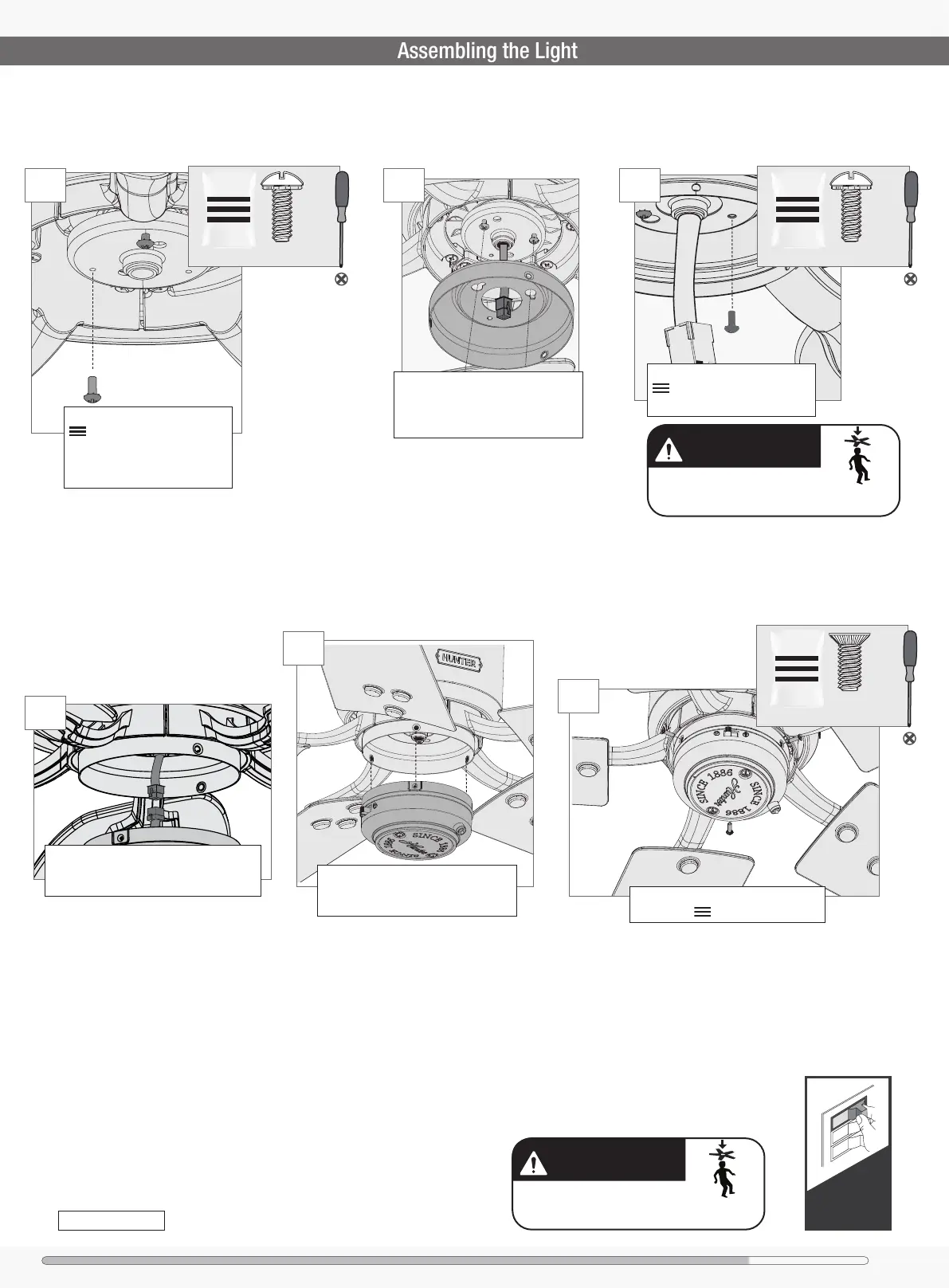

Assembling the Light
WARNING
FAN FALL HAZARD
Make sure all three screws are tight to secure
the upper switch housing to the mounting plate.
Connect the plugs from the upper and
lower switch housings. Make sure to line
up the colored markings on the connectors.
Lift the lower switch housing up until its
screw holes are aligned with the screw
holes in the upper switch housing.
Install the three switch housing screws
found in the hardware bag.
3 of 3
Switch Housing
Screw
bag
4
STEP
5
STEP
6
STEP
WARNING
FAN FALL HAZARD
Make sure all three screws are tight to secure the
lower switch housing to the upper switch housing
Fan style may vary.
Note:
ON
Turn Power
