Hurricane HBD-41 - ASSEMBLY PROCEDURES; DYM1666 Handle Assembly; Grass Catcher Mounting

9

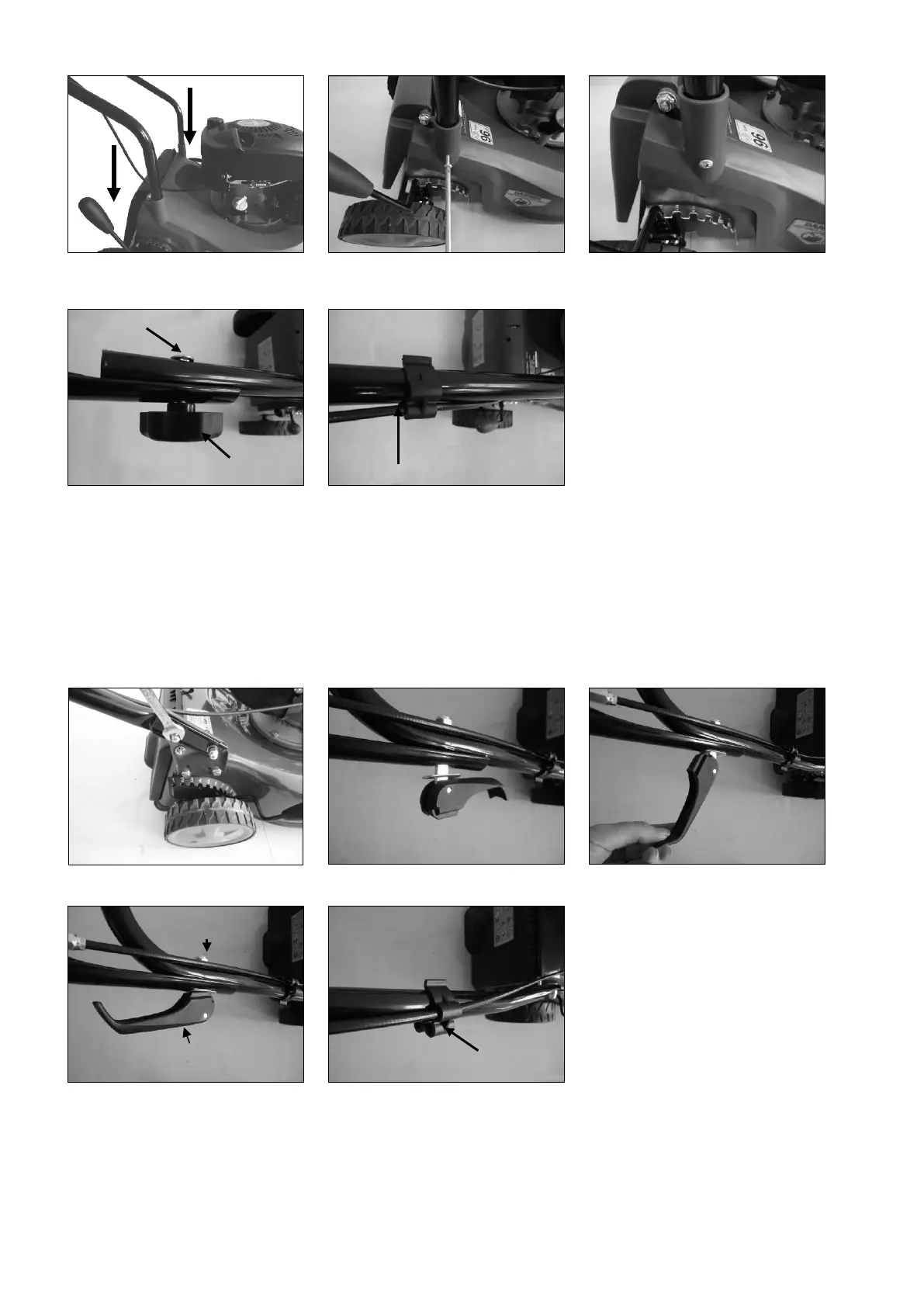

Figure 5 Figure 6 Figure 7
Figure 8 Figure 9
5.1.2 for DYM1666
1. Fix the lower handlebars to the rear deck with a wrench (fig. 8).
2. Open the two quick release skewers to unfold the upper handlebar (fig. 9).
3. Bring the the upper handlebar in the operating position. Close the two quick release skewers (fig. 9 & 10).
4. Adjust the tension by turning the lock nut with a wrench (fig. 11).
5. Attach the cable clamp at the shown position with the bowden cables underneath (fig. 12).
Figure 8 Figure 9 Figure 10
Figure 11 Figure 12
5.2 MOUNTING AND DISMOUNTING THE GRASS CATCHER
1. To fit: Raise the rear cover and hitch the grass catcher to the rear of mower (fig.13-18).
2. To remove: Lift the rear cover. Lift up the grass catcher.
locking knob
bolt
cable clamp
quick release skewer
lock nut
cable clamp
