Operator's Manual
26750TSC Compact Tiller
For additional information email info@ardisam.com or call 800-345-6007 M-F 8-5
PARTS BREAKDOWN

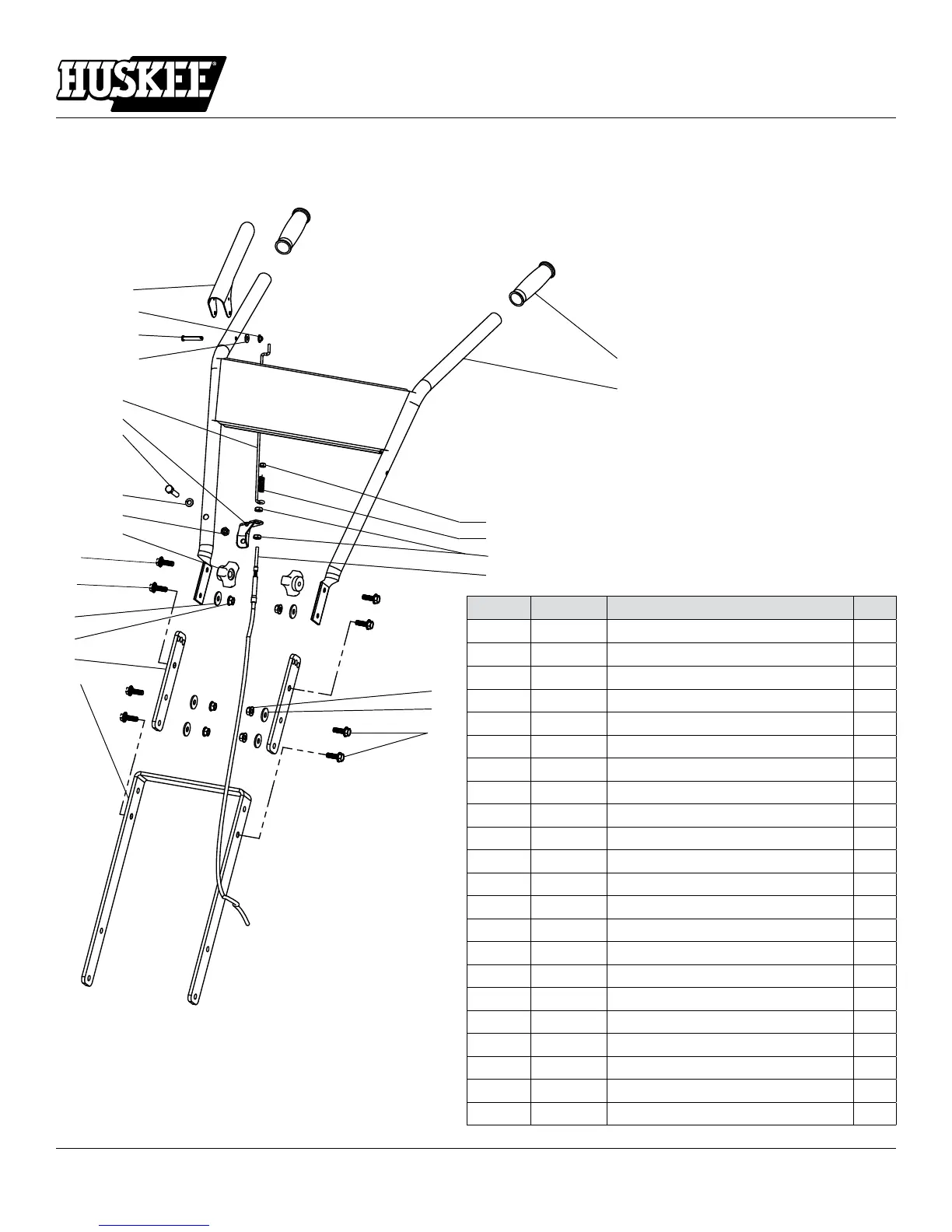

HANDLEBAR ASSEMBLY PARTS EXPLOSION AND PARTS LIST
6
5
7
8
9
17
16
15
10
12
11
13
19
1
2
3
4
14
18
3
2
1
20
21
22
REF. NO. PART # DESCRIPTION QT Y.
1 18135 BOLT M8 X 1.25 X 25 SFH GR8.8 ZN 6
2 3245 WASHER M8 8.4MM X 24MM X 2.2MM ZN 6
3 64132 NUT M8 X 1.25 HSF 6
4 18011 STRAP HANDLE BAR MIDDLE 2
5 3359 WELDMENT, HANDLEBAR FT PRO SERIES 1
6 13833 HANDLEBAR GRIP 1 IN ID 2
7 53650 LEVER CONTROL 1
8 3248 NUT M5 X 0.8 HFNYLK 1
9 13159 BOLT 60D X 32 SHLDR M5 X 7MM HH 1
10 53629 BRACKET CABLE MOUNT 1
11 504 LOCKWASHER-SPRING 5/16" 1
12 12770 BOLT M8 X 1.25 X 40MM HH 1
13 13508 NUT M8 1.0 HSF 1
14 13822 CABLE FT PULLEY 787MM SHEATH 2
15 4620 NUT M8 X 1.25 HJAM 1
16 53620 SPRING COMPRESSION FORWARD ARM 1
17 IN58 NUT 5M X 0.8 NYLOC 1
18 53612 LINK 295MM LONG 1
19 13601 KNOB M8 THREE STAR 2
20 18010 HANDLEBAR LOWER STRAP 1
21 3308 WASHER FLAT M5 5.3 X 10 X 1.0 1
22 13906 BOLT M8 X 1.25 X 20 SFH 2
