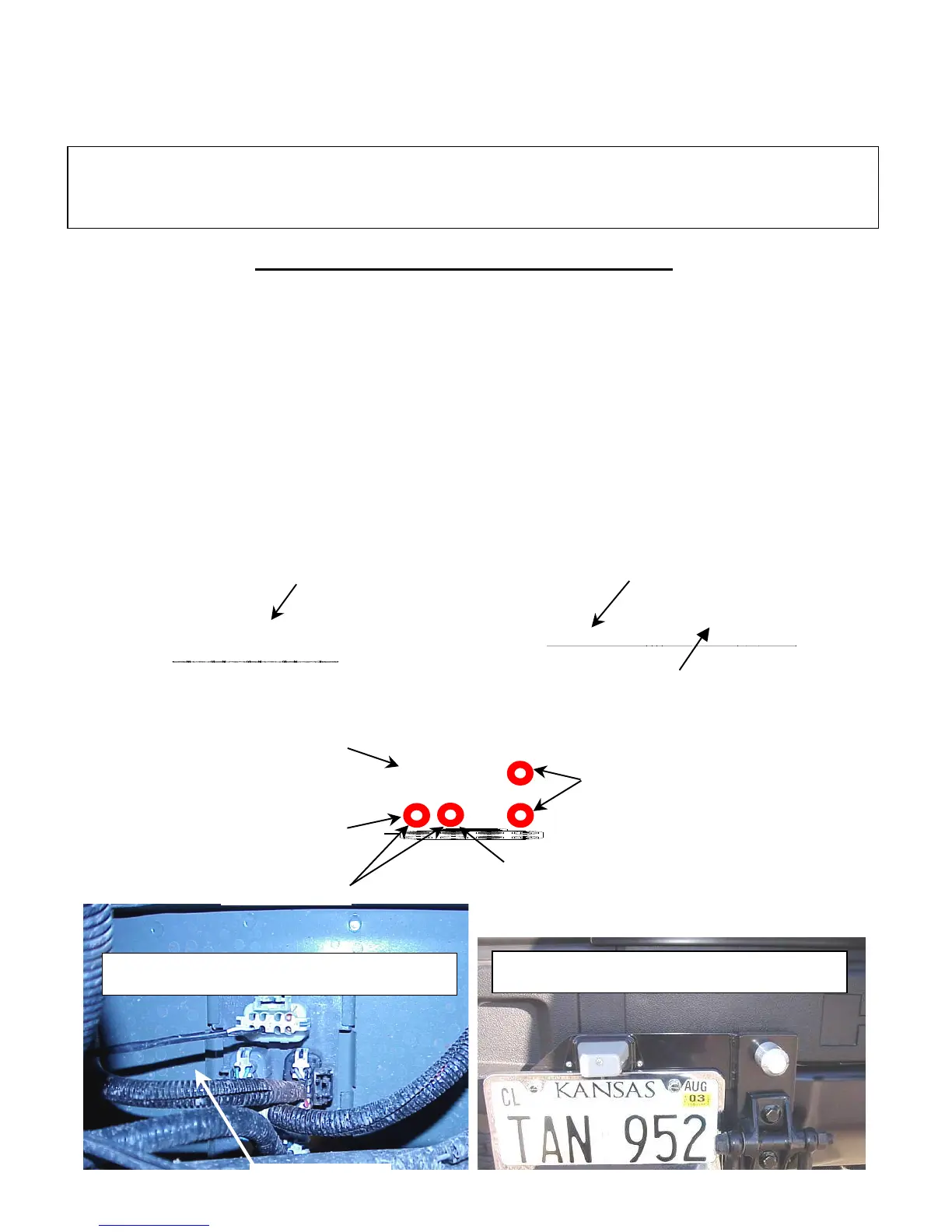

License Plate Light Wiring Instructions
1. In front of rear bumper underneath vehicle on driver side, locate cluster of three plugs. The white
plug housing should have no existing wiring.
2. Remove the white plug housing from receptacle by pushing in the tab and pulling down.
3. Remove the wire retainer from the plug housing.
4. Remove the two orange plugs as shown in drawing.
5. Push terminal ends for tag light into plug as shown in drawing.
6. Replace wire retainer.
7. Route plug housing and wire back to receptacle and plug in firmly to engage tabs.
8. Use provided wire ties to secure excess wire.
Photo below shows finished installation.
9. Install license plate
10. Turn vehicle lights on, check to see that license plate light functions
WIRE
TERMINAL TAB MUST BE DOWN
WHEN INSERTED INTO PLUG
WIRE RETAINER
DO NOT REMOVE
THESE ORANGE PLUGS
WHITE PLUG
HOUSING
INSERT WHITE WIRE
REMOVE THESE
ORANGE PLUGS
Photo Showing Connection of
License Plate Wiring
INSERT BLACK WIRE
License Plate Wires
License Plate Mounting and
Striker Plate Assembly
NOTE: Your Hummer H2 tire carrier is manufactured using the highest quality materials. The
hinge pin is stainless steel and the bushings are oil-impregnated bronze. Lubrication should not be
required. We have included a grease fitting for supplemental lubrication if deemed necessary.
Hummer License Plate Frame Not Included
