ASSEMBLY
ASSEMBLING THE RUBBER FOOT AND
WHEELS
See Figure 3.
Mount the rubber foot as shown in figure 3.
Tighten firmly with an open-end wrench (not included)
to secure it in position.
Mount the wheels as shown in figure 3.
Tighten firmly with an open-end wrench (not included)
to secure the wheels in position.

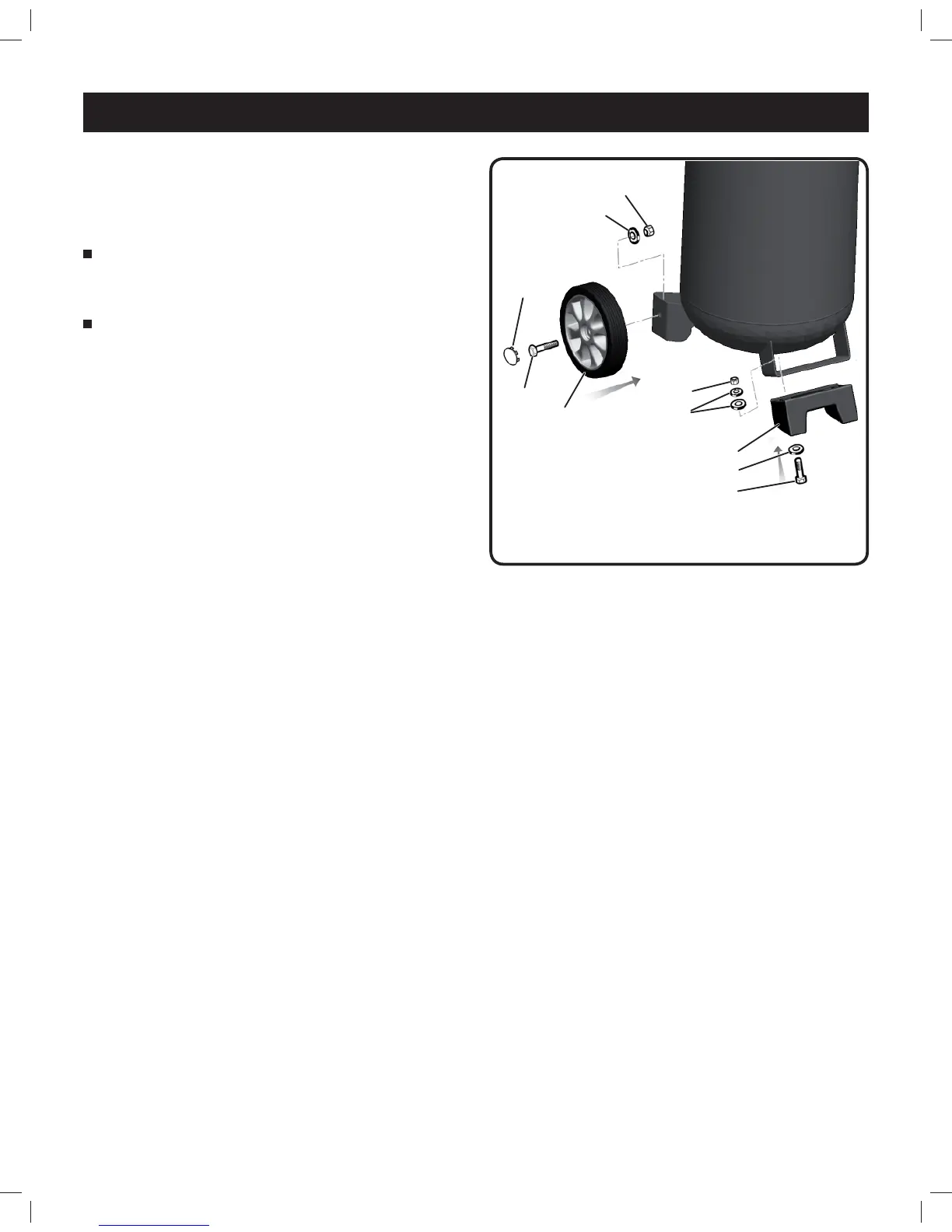

Fig. 3
WHEEL
SCREW
WASHER
WASHER
SCREW
WHEEL
PLUG
RUBBER FOOT
NUT
NUT
WASHER
