3
English
WARNING
The mounting template is designed to ac-
commodate stud layout of 16 inch (40.6
cm) on center.
Note: Stud layouts may vary.
If your wall studs are not located 16’’ apart, use a 1/2’’
(12.7 mm) thick, 8’’ (20.3 cm) wide, plywood panel
long enough to attach to the studs using (4) # 12x2’’
wood screws (not provided).
The mounting brackets may then be attached to the
plywood panel using the 4 screws (28) provided.
WARNING
For plywood installation, to prevent the
unit from falling, make sure you select the
proper length of fastener for the secure
mounting of plywood to the wall studs.
WARNING
It is necessary to affix the mounting plate
directly to a framing stud or other ap-
propriate surface able to support 67 lbs
(30 kg).

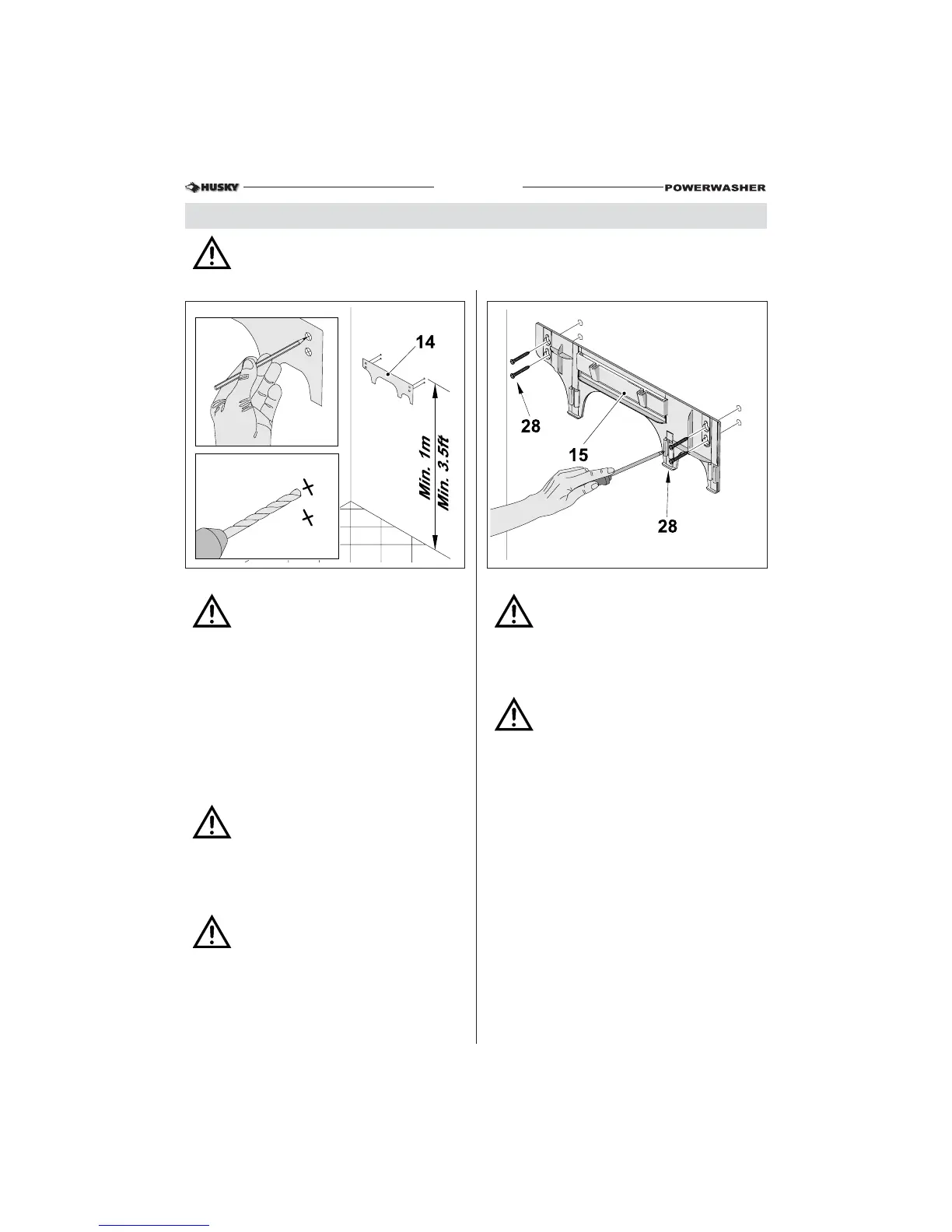

Fig. 1
Fig. 2
WARNING
WARNING
WARNING
Mounting bracket is designed for use with HD 1500 HSDS only.
WARNING
Consult local hardware professional for
proper mounting fasteners.
WARNING
Failure to use proper mounting fasteners
or follow mounting instructions may result
in damage to equipment, property or
personal injury.
WARNING WARNING
WARNING
WARNING
1.0 MOVING AND STORAGE INSTRUCTIONS
A
B
