Starter

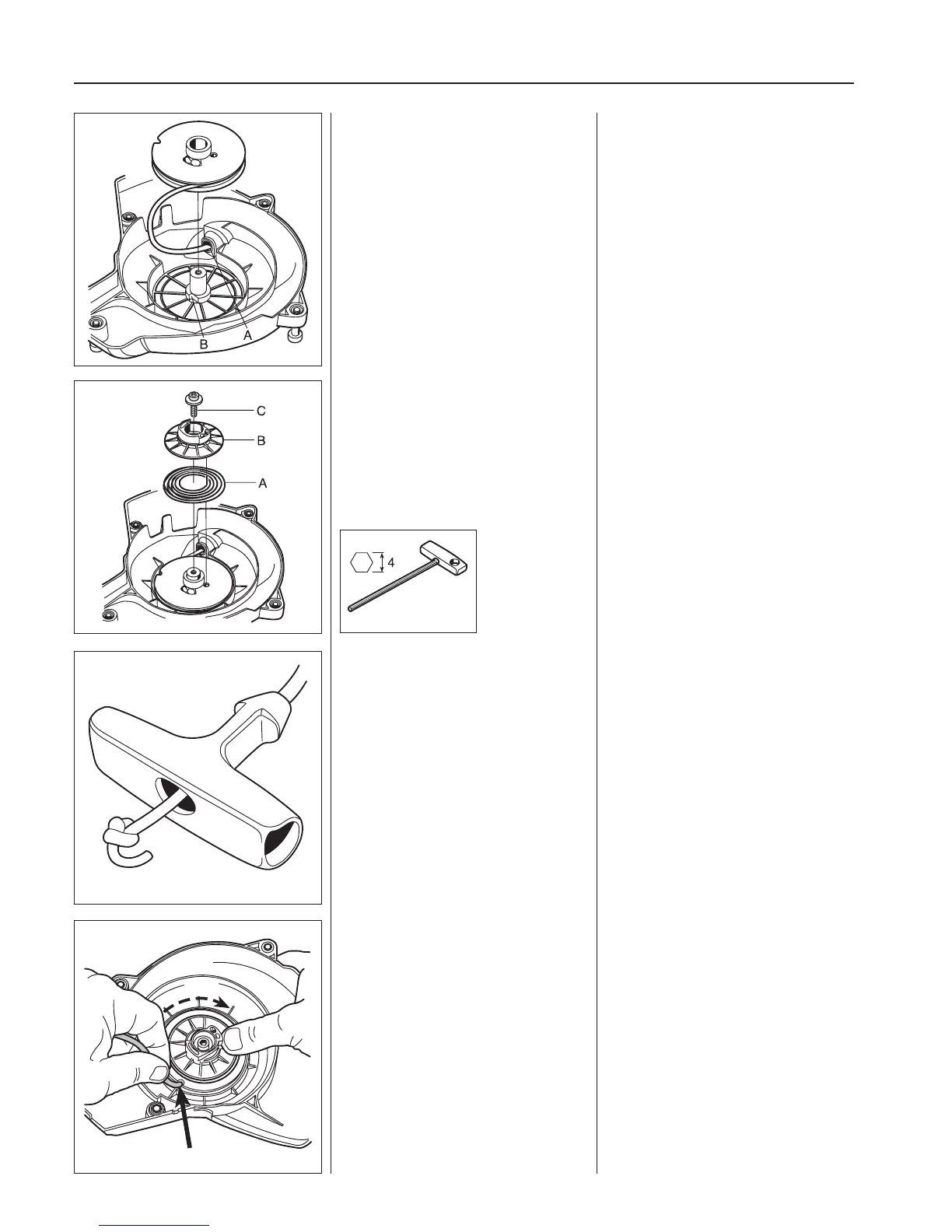

Fit the starter handle. Fit the starter handle on the cord.
Run the starter cord through the handle
and make a knot in the starter cord.
Pull the cord into the handle.
Tighten the return spring.
Check the spring tension.
Tighten the return spring.
Pull out the starter cord completely and
check that the recoil spring is entirely
loose.
Lift the starter cord up out of the cut-out
on starter pulley.
Then turn the starter pulley clockwise 7
to 8 times.
Check the spring tension. With the cord
completely pulled out the cord pulley
should be able to be turned at least
another half revolution.
Lubricate the recoil spring and the starter
pulley’s stub axle with cold resistant
grease or thin oil.
Insert the starter pulley in position.
Lubricate the return spring and the starter
pulley’s stub axle with cold resistant
grease or thin oil.
Move the starter cord through the guide in
the starter housing (A).
Guide the free end of the return spring
in towards the spring attachment on the
hub of the starter pulley (B) and slide
the starter pulley down into the starter
housing.
Fit the pressure equalisation spring,
the drive disc and the screw with the
underlying washer.
Lubricate the pressure equalisation spring
(A) with a little grease.
Place the pressure equalisation spring on
the starter pulley with the long extension
spring turned up towards the drive disc
(B).
Tighten the screw with the underlying
washer (C).
Replacing the drive
See the Electrical System chapter.
Replacing the drive
See the Electrical System chapter.
