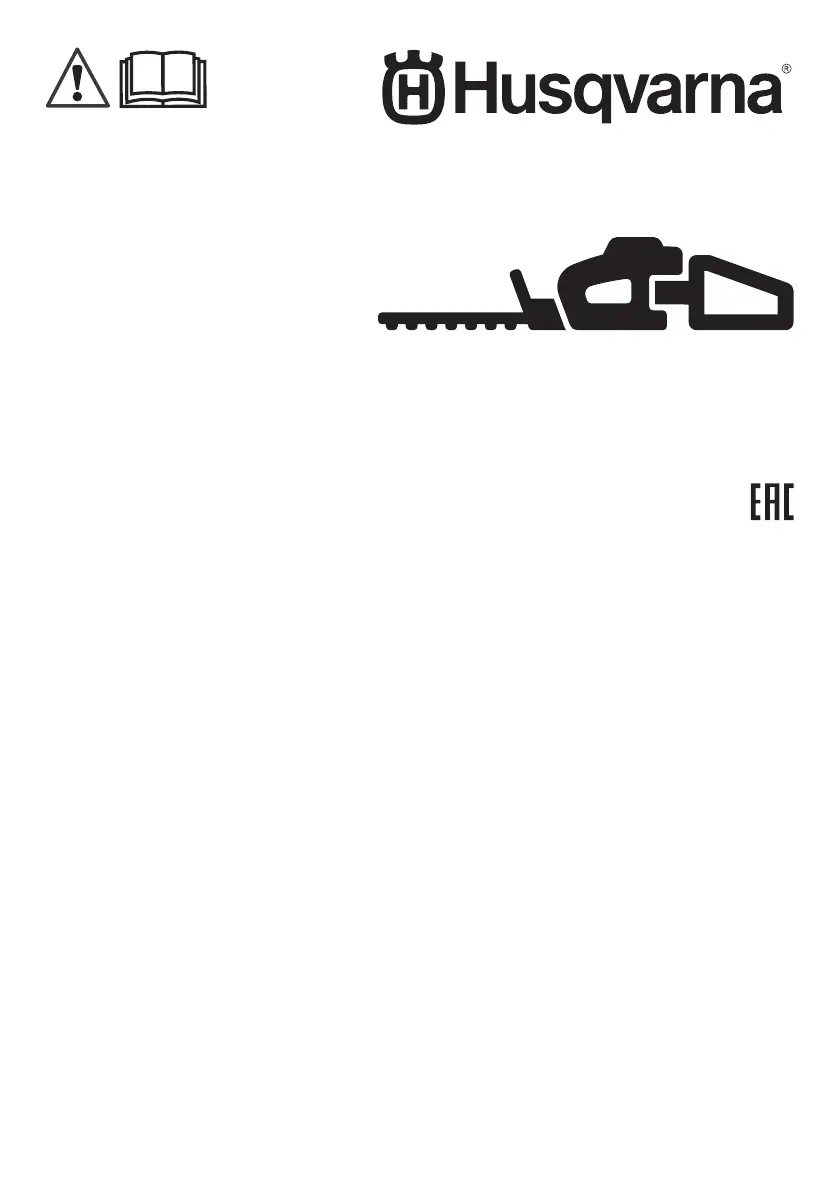

Husqvarna 522HD60X - User Manual

Other manuals for Husqvarna 522HD60X

Workshop Manual60 pages

Questions and Answers

W
Wendy DavisAug 13, 2025
Why does my Husqvarna 522HD60X Trimmer engine stop when idling?
- A
  Angela BrownAug 13, 2025
  If your Husqvarna Trimmer engine stops when idling, the issue might be: * The stop screw for the throttle not operating correctly: Check and adjust it. * A blocked fuel filter or fuel hose: Clean or replace the filter, and clear any blockages. * Air in fuel pipes: Remove the air. * A defective or worn needle valve: Replace the needle valve. * A defective heat insulation seal: Replace it. * The lever arm of the needle valve being too high or not operating correctly: Adjust the lever arm height or ensure it operates correctly. * A damaged or incorrectly attached needle valve spring: Replace the damaged spring or attach it correctly. * An object in the needle valve guide: Remove any objects.
M
Martin PalmerAug 17, 2025
How to fix a Husqvarna 522HD60X Trimmer that is hard to start?
- C
  Chris TorresAug 17, 2025
  If your Husqvarna Trimmer's engine is hard to start, several factors could be the cause. It might be due to: * The stop screw for the throttle not operating correctly: Check and adjust it. * A blocked fuel filter: Clean or replace the fuel filter. * A blocked fuel hose: Clear any blockages. * Air in the fuel pipes: Remove the air. * Incorrect fuel: Use the correct type of fuel. * A defective, worn, or blocked needle valve: Replace the needle valve or clear any blockage. * A damaged or incorrectly operating lever arm of the needle valve: Replace the damaged lever arm or ensure it operates correctly. * A damaged control diaphragm or defective seal: Replace the control diaphragm or its seal. * An object in the needle valve guide: Remove any objects.
R
rodriguezrandyAug 21, 2025
Why doesn't the idle speed become stable on my Husqvarna 522HD60X Trimmer?
- M
  Mackenzie TorresAug 21, 2025
  If the idle speed on your Husqvarna Trimmer is unstable, it could be due to: * The stop screw for the throttle not operating correctly: Check and adjust it. * A blocked fuel filter or fuel hose: Clean or replace the filter, and clear any hose blockages. * Air in the fuel pipes: Remove the air. * Incorrect fuel: Use the correct type of fuel. * A defective or worn needle valve: Replace the needle valve. * A carburetor that is not attached correctly: Attach the carburetor correctly. * The lever arm of the needle valve not operating correctly: Ensure it operates correctly. * A needle valve spring that is not attached correctly: Attach the needle valve spring correctly. * A damaged control diaphragm: Replace it. * An object in the needle valve guide: Remove any objects.
L
Lauren FrankAug 25, 2025
What causes a Husqvarna 522HD60X Trimmer engine not to operate on idle speed?
- S
  Sara HernandezAug 26, 2025
  If your Husqvarna Trimmer engine won't operate at idle speed, check the following: * The stop screw for the throttle: Ensure it operates correctly and adjust if necessary. * Fuel filter: Clean or replace if blocked. * Fuel hose: Clear any blockages. * Fuel pipes: Remove any air. * Carburetor: Attach it correctly. * Lever arm of the needle valve: Ensure it operates correctly.
A
Amy MccormickSep 5, 2025
How to fix too low idle speed on Husqvarna 522HD60X Trimmer?
- L
  Luke NewtonSep 5, 2025
  If the idle speed is too low on your Husqvarna Trimmer, consider these potential causes: * A defective heat insulation seal: Replace it. * A damaged, too high, or incorrectly operating lever arm of the needle valve: Replace the damaged lever arm, adjust the lever arm height, or ensure it operates correctly. * A worn needle valve: Replace it. * An object in the needle valve guide: Remove any objects.
F
felicia04Sep 8, 2025
Why does Husqvarna 522HD60X Trimmer engine stop when decreasing speed?
- D
  Diana TaylorSep 8, 2025
  If your Husqvarna Trimmer engine stops when decreasing speed, check for: * A defective pump diaphragm: Replace it. * The lever arm of the needle valve being too high or not operating correctly: Adjust the lever arm height or ensure it operates correctly. * A worn needle valve: Replace it. * An object in the needle valve guide: Remove any objects.
J
Jonathan RodriguezNov 27, 2025
Why is my Husqvarna 522HD60X Trimmer performance unsatisfactory at high speed?
- Z
  Zoe CabreraNov 27, 2025
  Unsatisfactory high-speed performance in your Husqvarna Trimmer can stem from several issues. Check for: * A blocked fuel filter: Clean or replace it. * A blocked fuel hose or vacuum pulse pipe: Clear any blockages. * Air in the fuel pipes: Remove the air. * Incorrect fuel: Use the correct type of fuel. * Vacuum pulse leakage: Check and repair any leaks. * Loose screws on the pump cover: Tighten them. * A defective pump diaphragm or needle valve: Replace them. * A carburetor that is not attached correctly: Attach the carburetor correctly. * A damaged or incorrectly operating lever arm of the needle valve: Replace the damaged lever arm or ensure it operates correctly. * A damaged or incorrectly attached needle valve spring: Replace the damaged spring or attach it correc...
M
Marie JohnsonDec 3, 2025
What to do if Husqvarna Trimmer engine does not increase speed?

Summary

Introduction to the Hedge Trimmer

Product Overview and Description

Visual identification and brief description of the hedge trimmer's parts and function.

Intended Use Guidelines

Specifies the correct applications for the hedge trimmer and restrictions on its use.

Safety Information

Product Symbols Explained

Explains the meaning of various safety symbols displayed on the product for user awareness.

Safety Definitions and General Instructions

Defines safety terms (Warning, Caution, Note) and provides fundamental safety guidelines for operation.

Operation Safety Instructions

Detailed safety precautions and procedures to follow during product operation to prevent injury.

Personal Protective Equipment (PPE)

Mandatory personal protective gear required for safe operation of the hedge trimmer.

Personal Protective Equipment (PPE) Details

Specifics on approved hearing protection, eye protection, gloves, and appropriate clothing.

Product Safety Device Checks

Instructions on checking the functionality of safety devices like the throttle trigger lockout.

Stop Switch Check Procedure

Steps to verify the correct operation of the engine stop switch for immediate shutdown.

Hand Guard Inspection

Procedure to ensure the hand guard is correctly attached and free from damage.

Vibration Damping System Check

Visual inspection of vibration damping units for damage or deformation.

Muffler and Spark Arrester Check

Guidelines for inspecting the muffler and spark arrester screen for damage and function.

Product Operation

Operating the Hedge Trimmer

Instructions on how to safely operate the hedge trimmer along hedges.

Fuel Safety Precautions

Critical safety warnings and procedures related to handling and using fuel for the engine.

Safety Instructions for Maintenance

Essential safety guidelines to follow before performing any maintenance tasks on the product.

Fuel Type and Mixture Ratios

Details on recommended gasoline, two-stroke oil, and precise mixing ratios for the engine.

Refueling Procedure

Step-by-step guide on how to safely refuel the hedge trimmer, including pressure release.

Starting with a Cold Engine

Detailed procedure for starting the hedge trimmer when the engine is cold.

Starting with a Warm Engine

Instructions for starting the hedge trimmer when the engine is already warm.

Stopping the Product

How to safely shut down the hedge trimmer after use using the stop switch.

Blade Tip Protection Installation

Guidance on correctly attaching the blade tip protection for enhanced safety.

Handle Adjustment

Instructions on how to adjust the rear handle to different positions for user comfort.

Maintenance Procedures

Maintenance Schedule Overview

A comprehensive schedule of maintenance tasks based on operating hours for product longevity.

External Cleaning and Muffler Care

Procedures for cleaning the exterior surfaces, muffler, and exhaust pipe.

Adjusting Idle Speed

Steps to correctly set the idle speed for smooth engine operation.

Spark Plug Examination and Care

How to inspect the spark plug for optimal engine performance and starting.

Cooling System Cleaning

Procedure for cleaning the engine's cooling fins and system to prevent overheating.

Air Filter Maintenance

Detailed steps for cleaning and oiling the air filter for proper engine function.

Gear Housing Lubrication

Instructions on lubricating the gear housing using specified grease through the nipple.

Blade Cleaning and Lubrication

Procedures for cleaning and lubricating the cutting blades before storage.

Blade Examination

How to inspect the cutting blades for damage, burrs, and proper movement.

Transportation, Storage, and Disposal

Safe Transportation and Storage Practices

Guidelines for safely transporting and storing the hedge trimmer to prevent damage or hazards.

Fuel Handling for Storage and Transport

Instructions on emptying fuel for transportation or long-term storage to prevent fire risks.

Technical Data

Engine and Ignition Specifications

Technical details on engine displacement, speed, power, and ignition system components.

Fuel, Weight, and Noise Emissions Data

Specifications for fuel tank capacity, weight, and measured sound power/pressure levels.

Vibration Levels and Blade Specifications

Technical data on vibration levels and blade specifications like type and cutting length.

EU Declaration of Conformity

EU Conformity Statement and Standards

Declaration of compliance with EU directives and applied standards for the hedge trimmer.

UK Declaration of Conformity

UK Conformity Statement and Regulations

Declaration of compliance with UK directives and applied standards for the hedge trimmer.

Husqvarna 522HD60X Specifications

General

Engine Type	2-stroke
Power Output	0.6 kW
Cutting Width	60 cm
Fuel Tank Volume	0.5 L
Vibration Level	4.5 m/s²
Cutter Bar Length	60 cm
Shaft Type	Straight shaft
Engine Displacement	21.7 cc
