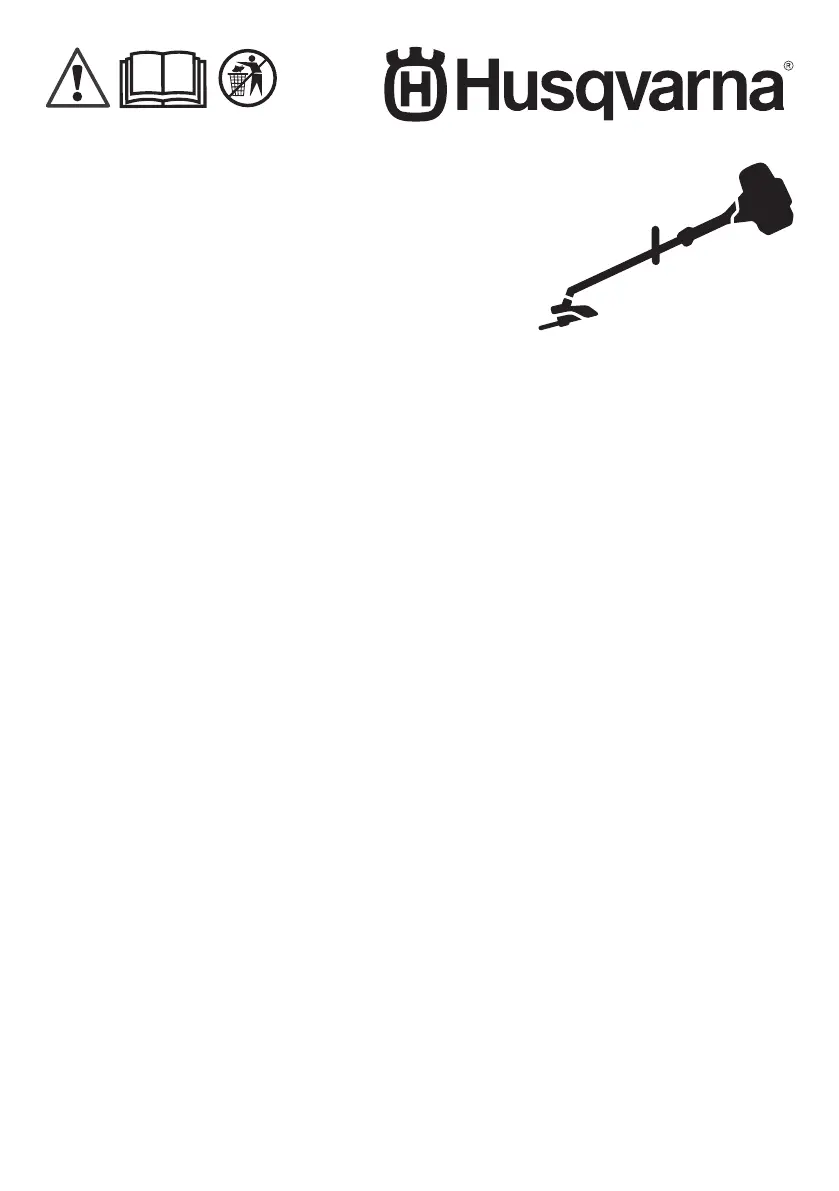

Husqvarna 520iRX - User Manual

Other manuals for Husqvarna 520iRX

Workshop Manual52 pages

Questions and Answers

K
Kimberly PittmanNov 23, 2025
What to do if Husqvarna 520iRX Trimmer charger shows red warning sign?
- J
  Jeremiah AguilarNov 23, 2025
  If a red warning sign flashes on the charger when the battery is attached to your Husqvarna Trimmer, it could be due to: * A defective connection between the charger and the battery. Ensure the power plugs are clean and undamaged. * The battery temperature is too high. Allow the battery to cool down in the charger for 1-5 minutes. * The ambient temperature is too low. Ensure the ambient temperature is above 5°C. * The battery temperature is too low. Ensure the battery temperature is above 5°C. * A defective battery. Verify the battery's condition by pressing the battery start button; at least one green LED should illuminate. If not, replace the battery. * A defective charger. Disconnect the charger from the mains outlet for at least 1 minute, then reconnect it. Check that the ...
A
Alex ClayAug 23, 2025
What to do if Husqvarna 520iRX charger does not start?
- B
  Brenda DeckerAug 23, 2025
  If the charger for your Husqvarna Trimmer doesn't start and no LEDs come on when the battery is attached, consider the following: * Check for a defective connection between the charger and battery. Ensure the power plugs are clean and undamaged. * The battery may be defective. Check the battery start. * The charger may be defective. Disconnect the charger from the mains outlet for at least 1 minute, then reconnect it. Verify that the fan starts and the green LED illuminates for about 3 seconds. If not, replace the charger.
J
johnsonamyAug 27, 2025
What to do if Husqvarna Trimmer keypad lights flash?
- A
  Alexis PooleAug 27, 2025
  If the keypad lights on your Husqvarna Trimmer are flashing, it could be due to: * A defective connection in the keypad connector. Ensure the keypad connector is correctly assembled, dry, undamaged, and free from corrosion. * A short circuit in the keypad. In this case, replace the keypad.
M
Marcus MorganAug 27, 2025
What to do if Husqvarna 520iRX shows red light on keypad?
- N
  Nancy RamirezAug 27, 2025
  If a warning sign on the keypad of your Husqvarna Trimmer shows a red light, it indicates that permanent error codes are preventing the product from running. Erase the error codes using a diagnostic tool. It may also indicate a broken control unit, in which case you should replace it.
F
Frederick PonceAug 29, 2025
Why Husqvarna 520iRX Trimmer motor speed is changing?
- R
  Roberto ColeAug 29, 2025
  If the motor speed of your Husqvarna Trimmer is changing, it could be caused by: * A defective connection in the main switch signal connector. Ensure the connector is correctly assembled, dry, undamaged, and free from corrosion. * A damaged or worn main switch. If so, replace the main switch.
G
Gregory MeyerSep 23, 2025
What to do if Husqvarna 520iRX Trimmer shows no LEDs flash on battery?
- C
  Charles RhodesSep 23, 2025
  If no LEDs flash on the battery of your Husqvarna Trimmer when you press the start button, it indicates a defective battery. Replace the battery to resolve the issue.
T
Tyler MontoyaSep 16, 2025
What to do if Husqvarna 520iRX motor makes sudden movement then stops?
- J
  jamesaustinSep 17, 2025
  If the electrical motor of your Husqvarna Trimmer makes a sudden movement when you push the power trigger and then stops, it is likely due to a short circuit in the control unit. Replace the control unit to resolve this issue.
W
William RobertsSep 18, 2025
What to do if Husqvarna 520iRX has no indication light on the keypad?
- S
  Sarah WiseSep 18, 2025
  If your Husqvarna Trimmer works but there is no indication light on the keypad, it could be caused by: * A defective connection in the keypad connector. Check the keypad function using a battery diagnostic tool and ensure the keypad connector is correctly assembled, dry, undamaged, and free from corrosion. * A broken keypad. Replace the keypad.
M
Michael CarlsonSep 8, 2025
What to do if Husqvarna Trimmer warning sign flashes after start and hangs up?
- D
  Daniel NealSep 8, 2025
  If a warning sign on the keypad of your Husqvarna Trimmer flashes after you start it and the product hangs up with the green LED on, it could be due to: * A defective signal between the battery and the product. Make sure that the power connectors between the battery and the product are not dirty or damaged. * Loose or damaged small cables between the connector and the control unit. Ensure that these cables are secure and undamaged.
S
Sean Reynolds DDSSep 5, 2025
What to do if Husqvarna 520iRX Trimmer product stops when applying work load?
- M
  marissa88Sep 5, 2025
  If your Husqvarna Trimmer stops when you apply a workload, it may be due to defective power connectors. Ensure that the power connectors between the battery and the product are clean and undamaged.

Summary

Product Overview

Introduction and Intended Use

Overview of the battery grass trimmer, its purpose, and intended applications.

Product Components

Visual identification of the product's main parts and accessories.

Product Symbols and Warnings

Symbols on the Product

Explains safety and marking symbols found on the product itself.

General Safety Information

Battery and Charger Symbols

Interpretation of symbols related to batteries and chargers.

Safety Definitions and Warnings

Defines warning terms and provides general power tool safety advice.

Pre-Operation Safety Checks

Essential checks before starting the product for safe operation.

Personal Safety Guidelines

Advice on operator awareness, common sense, and avoiding hazards.

Proper Dress and Workspace

Guidelines on attire, jewelry, and workspace safety.

Product Use and Care

Recommendations for using accessories and maintaining the product.

Preventing Accidental Starts

Precautions to avoid unintentional product activation.

Child Safety Precautions

Warnings regarding children's proximity and access to the machine.

General Usage and Modification Rules

Safety instructions for product use, modifications, and parts.

Assembly and Operation Safety

Cutting Attachment Assembly Safety

Safety considerations when installing cutting attachments.

Operation Safety Instructions

Key safety rules to follow during product operation.

Work Area and Movement Safety

Ensuring a safe working environment and stable movement.

Handling Operational Issues

Procedures for jams, heat, and vibration exposure.

Electromagnetic Fields and Blade Thrust

Information on EM fields and the hazard of blade thrust.

Personal Protective Equipment (PPE)

Head, Hearing, and Eye Protection

Guidance on wearing helmets, hearing, and eye protection.

Gloves, Footwear, and Clothing

Recommendations for protective gloves, boots, and clothing.

Cutting Attachment Safety Rules

Warnings on using correct attachments, guards, and sharpening.

Product Checks and Safety Devices

Trimmer Head and Guard Maintenance

Checks for trimmer head and guard damage and proper usage.

Safety Device Inspection

Importance of inspecting and maintaining product safety devices.

Keypad and Trigger Lockout Checks

Verifying keypad indicators and power trigger lockout function.

Cutting Guard Functionality

Ensuring the cutting attachment guard is correctly fitted and functional.

Locknut and Harness Checks

Inspecting locknut attachment and harness quick release function.

Battery and Charger Safety

Approved Battery Usage

Guidelines for using only approved BLi batteries with the product.

Battery Handling and Storage

Precautions for battery handling, storage, and avoiding electrical hazards.

Battery Charger Safety Rules

Safe practices for operating and storing the battery charger.

Maintenance Safety Procedures

Pre-Maintenance Safety Steps

Essential safety actions before performing product maintenance.

Product Assembly

Handlebar and Loop Hanger Assembly

Instructions for assembling the handlebar and loop hanger.

Trimmer Guard and Blade Assembly

Steps for installing the trimmer guard and blade.

Locknut Attachment and Removal

Procedures for attaching and removing the locknut.

Product Operation Guide

Harness Adjustment for Balance

Adjusting the harness for optimal balance and work position.

Pre-Operation Examination

Inspecting the product for damage and proper function before use.

Blade and Guard Inspection

Checking cutting attachments and guards for damage.

Battery Indicator Meanings

Understanding the LED indicators on the battery and charger.

Starting and Stopping the Product

Procedures for powering the product on and off.

Using SavE Mode

Activating and deactivating the power-saving SavE function.

Changing Trimmer Head Direction

Adjusting the cutting direction of the trimmer head.

Cutting Techniques

Trimming and Clearing Grass

Techniques for trimming grass and clearing vegetation.

Balancing the Product

Adjusting the harness for correct product balance during operation.

Grass Cutting and Sweeping Methods

Techniques for cutting, sweeping, and clearing grass.

Transport Position Setup

Adjusting the handlebar for safe transport.

Product Maintenance

Scheduled Maintenance Tasks

Daily, weekly, and monthly maintenance checklist.

Battery and Charger Inspection

Checking batteries and chargers for damage and cleanliness.

Trimmer Line and Head Maintenance

Inspecting and replacing trimmer line and head.

Cutting Tool Sharpening

Sharpening Grass Blades and Knives

Proper methods for sharpening grass blades and knives.

Troubleshooting and Storage

Keypad Error Indicators

Troubleshooting keypad LED displays and their meanings.

Battery Fault Diagnosis

Identifying and resolving battery-related issues using LED indicators.

Battery Charger Faults

Troubleshooting battery charger LED errors.

Storage and Transportation Guidelines

Safe procedures for storing and transporting the product and battery.

Product and Battery Disposal

Environmental guidelines for disposing of the product and battery.

Technical Specifications

Motor and Performance Data

Technical details on motor, speed, width, and weight.

Noise and Vibration Data

Measured noise and vibration levels for operator safety.

Approved Components and Accessories

Approved Batteries and Chargers

List of compatible batteries and chargers for the product.

Approved Cutting Attachments

List of recommended trimmer heads, blades, and cutters.

EC Conformity Declaration

Declaration of Compliance

Official statement of product compliance with EU directives and standards.

Husqvarna 520iRX Specifications

General

Battery type	Li-Ion
Battery voltage	36 V
Cutting width	40 cm
Sound power level, guaranteed (LWA)	96 dB(A)
Weight (without battery)	4.4 kg
Power source	Battery
Sound power level	96 dB(A)
