Husqvarna CTH 184T Illustrated Parts List

2
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex

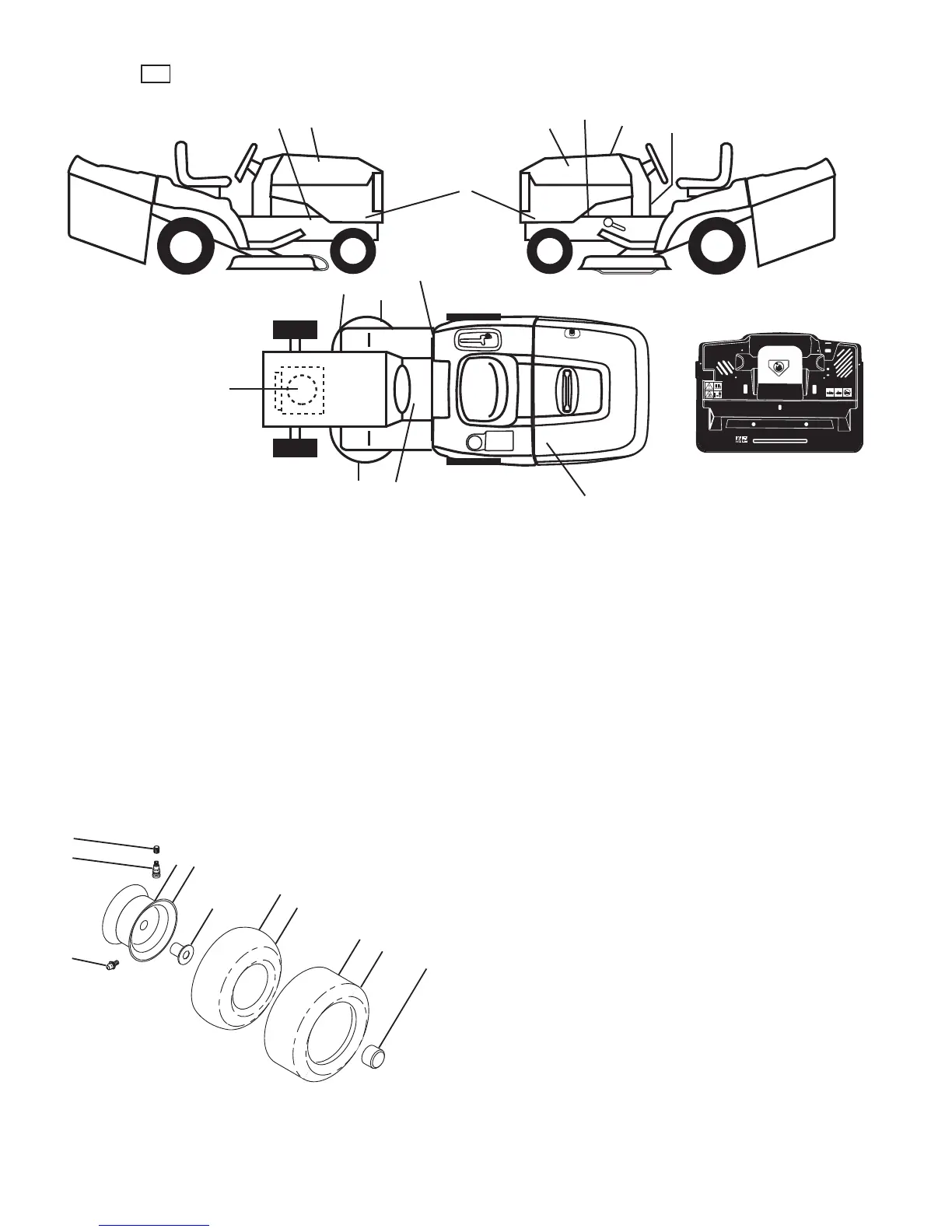

WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Front
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire Front 15 x 6.0-6
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 42 05-31 Tire R 18 x 9.5-8
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 13 83-37 Rim Asm 8" Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
TRACTOR - MODEL NO. CTH 184T (96051007600), PRODUCT NO. 960 51 00-76
DECALS
27
27
KEY PART
NO. NO. DESCRIPTION
1 581 57 83-01 Decal, Warning
2 581 57 97-01 Decal, Warning Eng. Sym.
3 532 42 91-96 Decal, Hood
4 581 51 72-01 Decal, Replacement
6 581 72 41-01 Decal, 100 DBA
7 532 44 02-47 Decal, Lower Dash
8 532 44 61-58 Decal, Side Panel
9 581 57 85-01 Decal, Warn CRD Bagger Elec Dump
11 581 57 91-01 Decal, Cut finger
14 581 57 96-01 Decal, Chassis Hot Muffler
21 532 44 11-89 Decal, Belt
- - 532 44 46-19 Decal, Bypass
- - 532 44 54-93 Decal, Warning Combined
- - 532 44 51-02 Decal, Battery Door
- - 532 44 14-09 Pad Footrest LH
- - 532 44 14-10 Pad Footrest RH
- - 581 52 39-40 Manual Operator's (Euro)
- - 581 52 39-50 Manual Operator's (Scan)
- - 581 52 39-20 Manual Operator's (E-Bloc)
- - 581 52 39-30 Manual Operator's (Baltic)
KEY PART
NO. NO. DESCRIPTION
9
MAX
+
_
90N
MAX
+
_
150N
3
14
21
6
1
3
14
4
7
11
2
11
8
