SERVICE AND ADJUSTMENTS
HOOD
TO REMOVE HOOD AND GRILL ASSEMBLY
(See Fig. 35)
• Raise hood.
• Unsnap headlight wire connector.
• Stand in front of tractor. Grasp hood at sides, tilt toward
engine and lift off of tractor.
• To replace, reverse above procedure.
ENGINE
TO AD JUST THROTTLE CON TROL CABLE
The throttle control has been preset at the factory and
ad just ment should not be necessary. If adjustment is
necessary, see engine manual.
TO AD JUST CARBURETOR
The carburetor has been preset at the factory and ad just ment
should not be necessary. However, minor ad just ment may be
required to compensate for differences in fuel, temperature,
altitude or load. If the carburetor does need adjustment,
see engine manual.

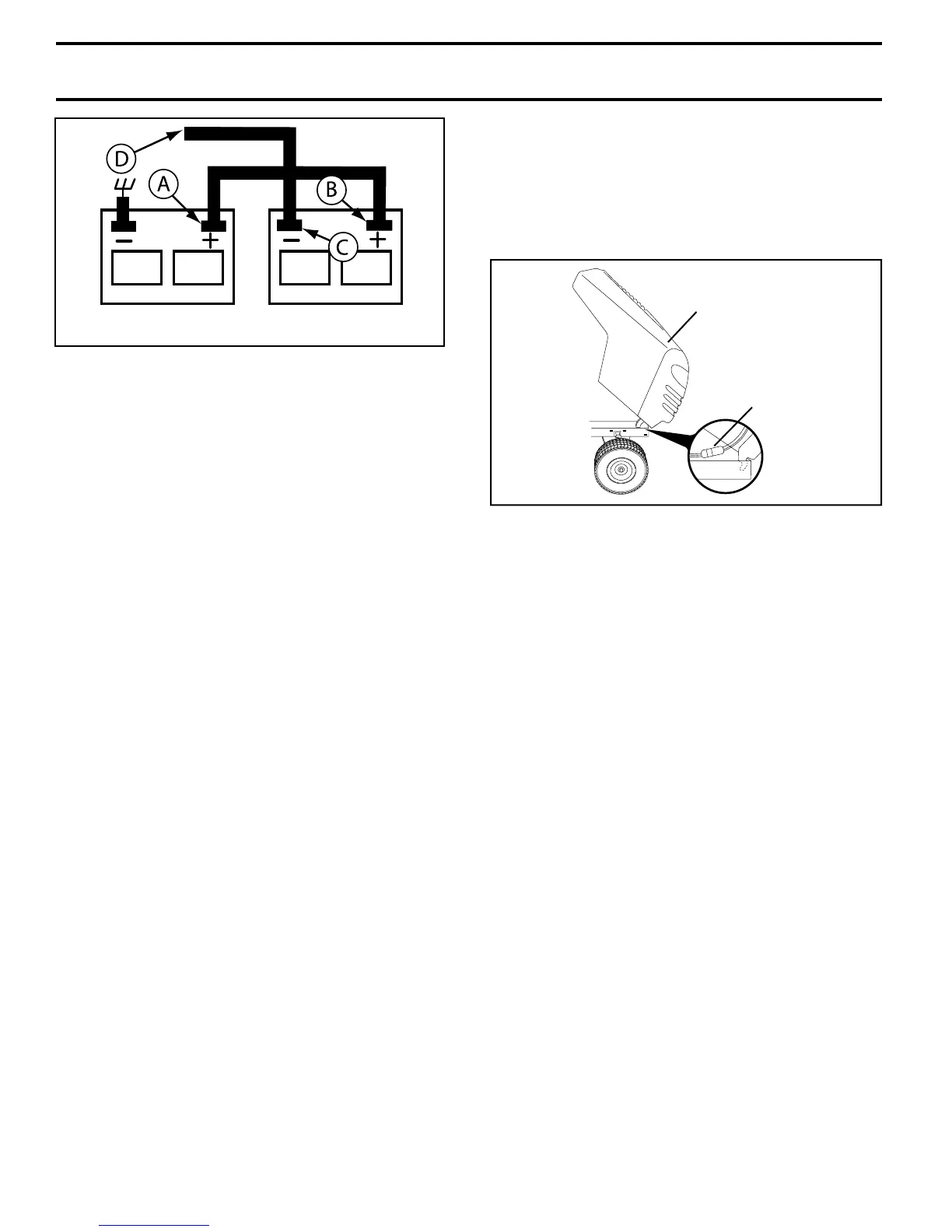

FIG. 35
HEADLIGHT WIRE
CONNECTOR
TO REPLACE HEADLIGHT BULB
• Raise hood.
• Pull bulb holder out of the hole in the backside of the
grill.
• Replace bulb in holder and push bulb holder securely
back into the hole in the backside of the grill.
• Close hood.
INTERLOCKS AND RELAYS
Loose or damaged wiring may cause your tractor to run
poorly, stop running, or prevent it from starting.
• Check wiring. See electrical wiring diagram in the
Repair Parts section.
TO REPLACE FUSE
Replace with 20 amp automotive-type plug-in fuse. The
fuse holder is located behind the dash.
