CONTROL SYSTEM

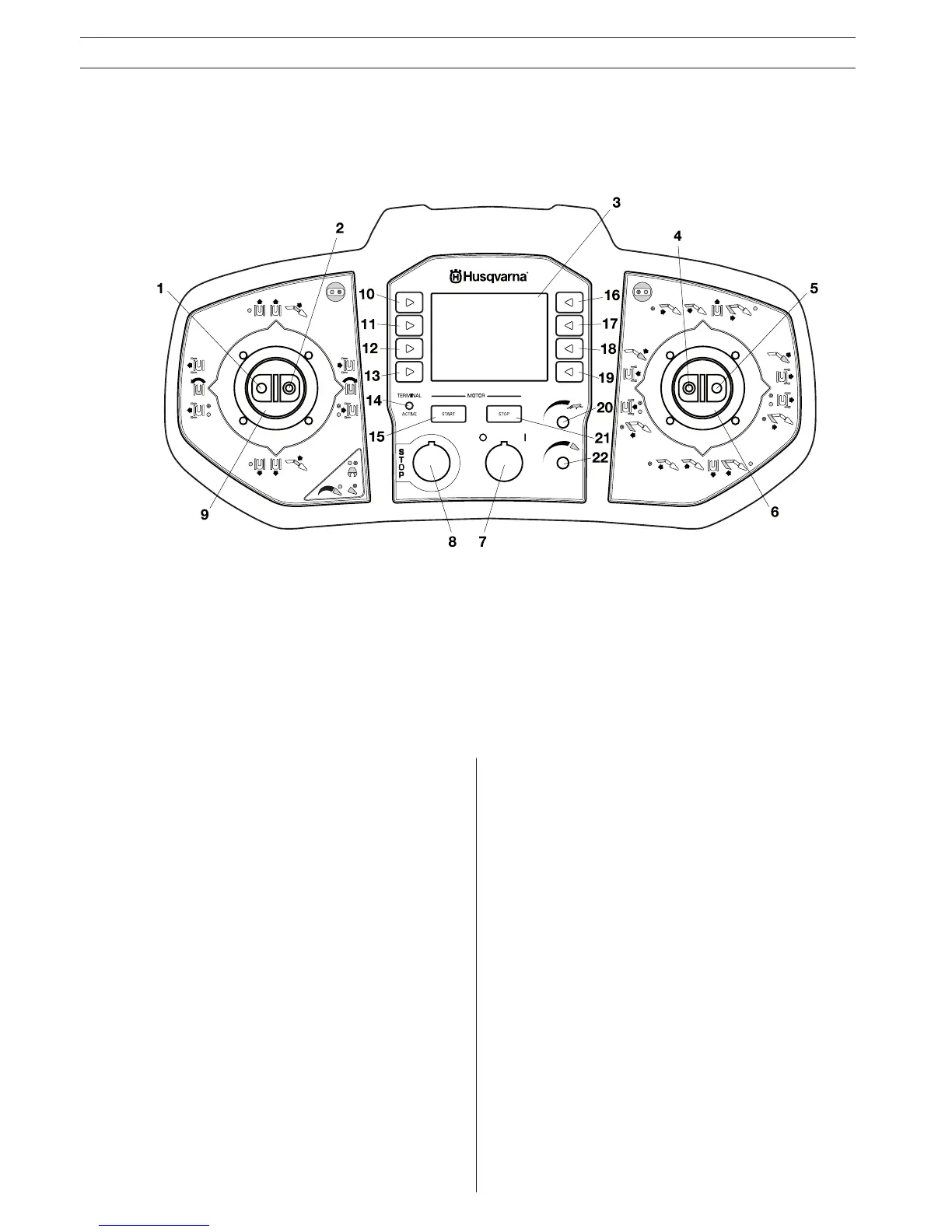

What is what on the remote
control
1. Left joystick - left button
2. Left joystick - right button
3. Display
4. Right joystick - left button
5. Right joystick - right button
6. Right joystick
7. Main switch
8. Machine stop
9. Left joystick
10-13. Menu buttons
14. Light emitting diode, joysticks active
15. Start button motor
16-19. Menu buttons
20. Flow to machine movement/speed
21. Stop button motor
22. Flow to hydraulic tool
English - 23
