Husqvarna GTH264T Illustrated Parts List

2
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7

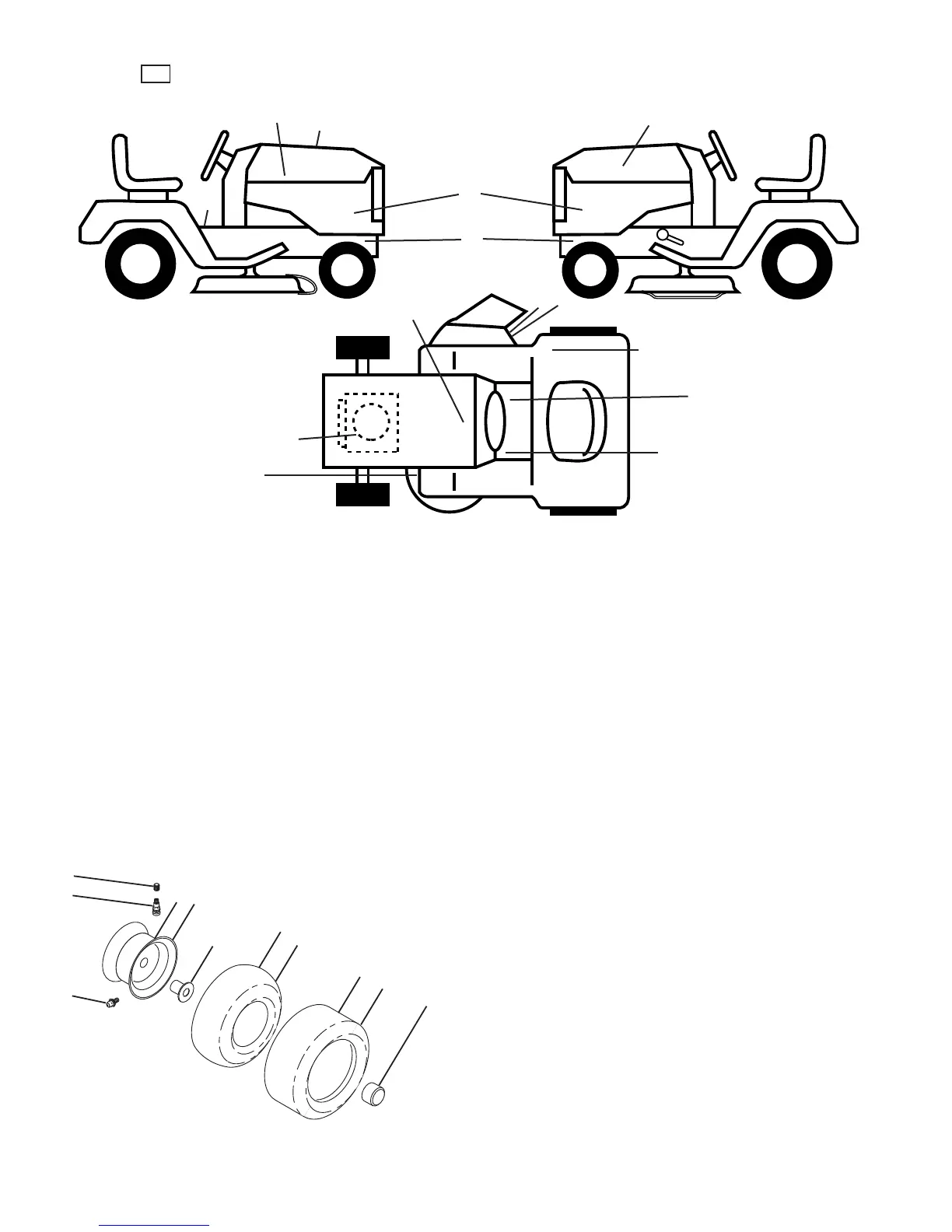

wheel_art_1-vgt
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
17
16
16
1 532 05 91-92 Cap, Valve, Tire
2 532 06 51-39 Stem, Valve
3 532 18 18-39 Rim Assembly, Front
4 532 00 81-34 Tube, Front (Ser vice Item Only)
5 532 10 62-30 Tire, Front
6 532 12 49-57 Fitting, Grease (Front Wheel Only)
7 532 12 49-59 Bearing, Flange (Front Wheel Only)
8 532 17 50-39 Cap, Axle
9 532 10 55-88 Tire, Rear
10 532 00 71-54 Tube, Rear (Service Item Only)
11 532 14 45-10 Rim Assembly, Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
3 581 57 92-01 Decal, Warning
4 581 57 97-01 Decal, Engine Warning Symbols
5 581 72 40-01 Decal, Brake Pedal
7 581 57 81-01 Decal, Warning Symbols
8 581 58 00-02 Decal, Mower Sch.
9 532 14 50-05 Decal, Battery Dan./Poi.
10 581 57 82-01 Decal, Fender DB/CE
11 581 57 91-01 Decal, Hand/Foot Sym.
14 532 44 65-46 Decal, Panel Side
15 581 56 37-01 Decal, Replacement Parts
16 581 62 73-01 Decal, Hood Logo
17 581 57 80-01 Decal, Park Brake
18 581 57 96-01 Decal, Chassis Hot Muffler
- - 581 72 46-01 Decal, Drawbar Load Limit
- - 581 72 48-01 Decal, Bypass
- - 532 43 98-82 Pad, Footrest, LH
- - 532 43 98-81 Pad, Footrest, RH
- - 115 53 33-20 Manual, Operator's (Euro)
- - 115 53 41-10 Manual, Operator's (Scan)
- - 115 53 42-50 Manual, Operator's (E-Bloc)
- - 115 53 43-40 Manual, Operator's (Baltic)
14
9
3
11
15
7
18
8
5
10
4
TRACTOR - - MODEL NO. GTH264T (96041031000), PRODUCT NO. 960 41 03-10
DECALS
27
27
