Assembly
Introduction
WARNING: The drive belt tension
spring can break and cause injury. Wear
protective glasses when you attach or
remove the cutting deck.
Read the assembly instructions in the owner's manual
carefully. A label on the inner side of the front cover on
the product, also shows how to attach and remove the
cutting deck.

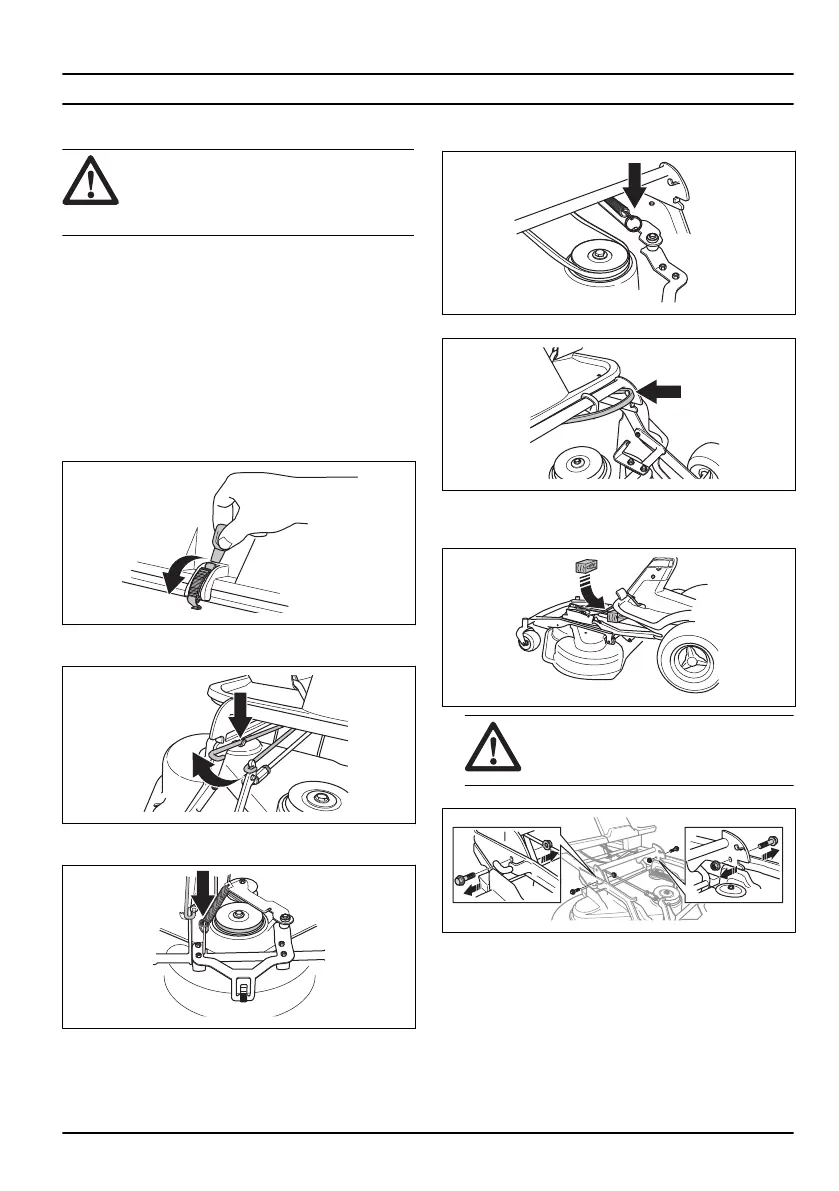

To remove and attach the cutting deck
1. Park the product on level ground.
2. Apply the parking brake.
3. Set the cutting height lever in the servicing position.
4. Release the clip on the front cover with the tool
attached to the ignition key, and remove the cover.
5. Lift the cutting height stay and put it in the holder for
the cutting height stay.
6. Pull the spring eye to loosen the spring for the drive
belt tension.
7. Put the spring eye in the holder on the tension arm
for the drive belt.
8. Remove the drive belt and put it in the belt holder.
9. Put a wooden block between the equipment frame
and the chassis. This makes sure that the cutting
deck does not spring back when removed.
WARNING: Be careful. Risk of
injury if your hand is caught between the
equipment frame and the chassis.
10. Remove the 2 screws on the equipment frame.
1686 - 001 - 03.11.2021
11
