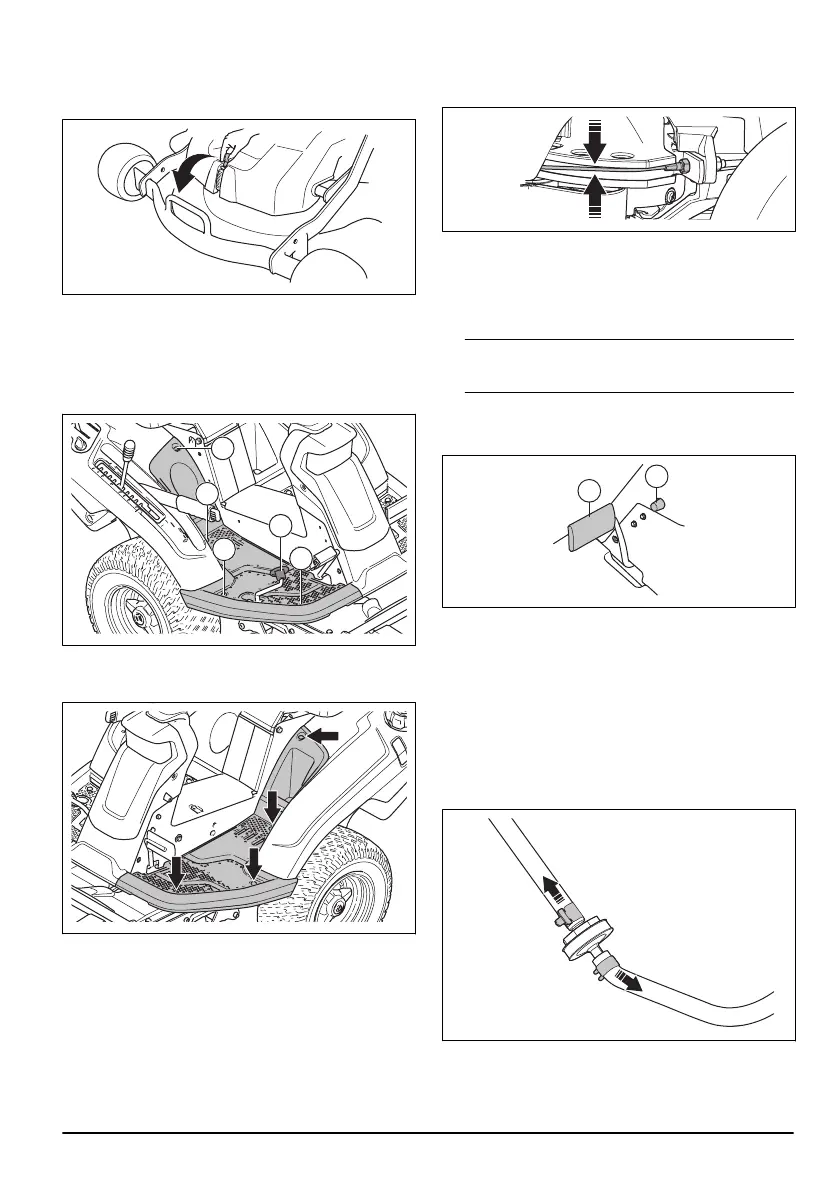

To remove the front cover
1. Release the clip on the front cover with the tool
attached to the ignition key.
2. Lift off the front cover.
To remove the right footrest plate
1. Turn the knob on the reverse pedal (A) to remove it.
2. Remove the 3 screws (B) and remove the footrest
plate.
To remove the left footrest plate
• Remove the 4 screws and remove the footrest plate.
To examine the steering wires
The tension of the steering wires can decrease after a
period of time. This causes the adjustment of the
steering to change.
Examine and adjust the steering as follows:
1. The steering wires are correctly tightened if you can
manually move them 5 mm up or down in the groove
on the steering collar.
2. If the wires are too loose, let an authorized service
agent adjust them.
To do a check of the parking brake
1. Park the product on a hard surface that slopes.
Note: Do not park the product on a grass slope
when you do a check of the parking brake.
2. Press the parking brake pedal down (1).
3. Press and hold the lock button (2) and release the
parking brake pedal while the button is pressed.
4. If the product starts to move, let an approved service
agent adjust the parking brake.
5. Press the parking brake pedal again to release the
parking brake.
To replace the fuel filter
1. Open the engine cover to get access to the fuel filter.
2. Compress the fuel tank hose to prevent leakage.
3. Move the hose clips away from the fuel filter with a
pair of flat pliers.
4. Pull off the fuel filter from the hose ends. A small
quantity of fuel can leak.
