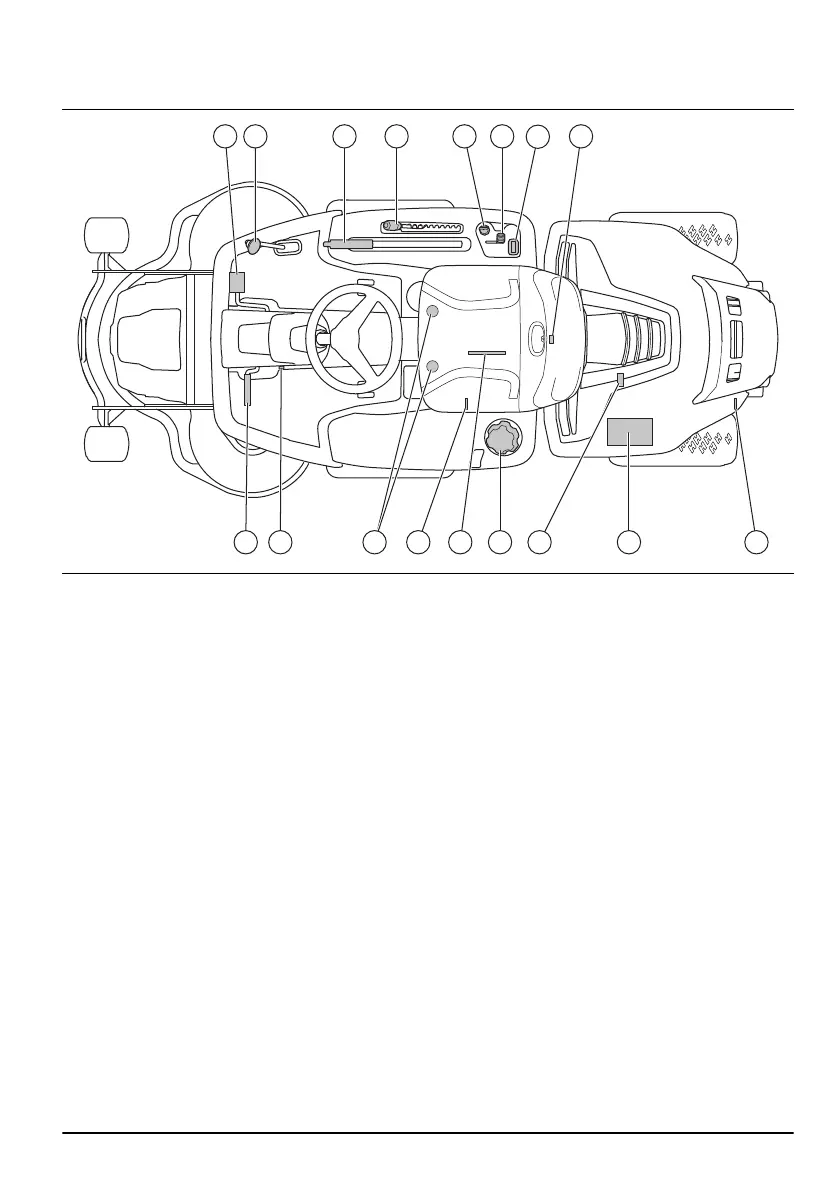

Product overview
9 10 11 14 16 1712
13 15
1 2 3 4 5 6 8
7
1. Forward pedal
2. Rearward pedal
3. Lift lever for the cutting deck
4. Cutting height lever
5. Ignition lock
6. Throttle control
7. Hour meter
8. Engine cover lock
9. Parking brake pedal
10. Lock button for parking brake
11. Seat adjustment
12. Lever to engage or disengage the drive on the front
axle, R 216T AWD
13. Type plate with scannable codes
14. Fuel tank cap
15. Oil drain plug
16. Battery
17. Lever to engage or disengage the drive, R 214T, R
214TC, R 214TC Comfort Edition. Lever to engage
or disengage the drive on the rear axle, R
216T AWD
1686 - 001 - 03.11.2021 3
