I.28
Part. N. 8000 H0368 (09-2008)
FRONT SUSPENSION
COMPONENTS OF THE FORK
The SHIVER 50 Factory Works fork is based on a multivalve damping system
that is exactly the same on both fork legs.
Each fork leg is therefore a complete suspension system
which you must refer to when adjusting any part of the fork.
3)Compression adjustment screw
11)Outer spider
12)Lower sliding bushing
13)Spring cup
14)Sealing ring
16)Dust seal
19)Spring
24)Inner rod
25)Rod
26/37)Washers recall spring
33)Rebound damping piston washers ’ stack
35)Body in the cartridge
39)Compression piston
41)Compression damping valve washers ’ stack
43)Compression valve
44)Stanchion tube
46)Upper sliding bushing
48)Foot nut
53)Spring preload adjustment set
70)Wheel axle clamp
71)Rebound adjustment screw
72)Rebound adjustment conic pin

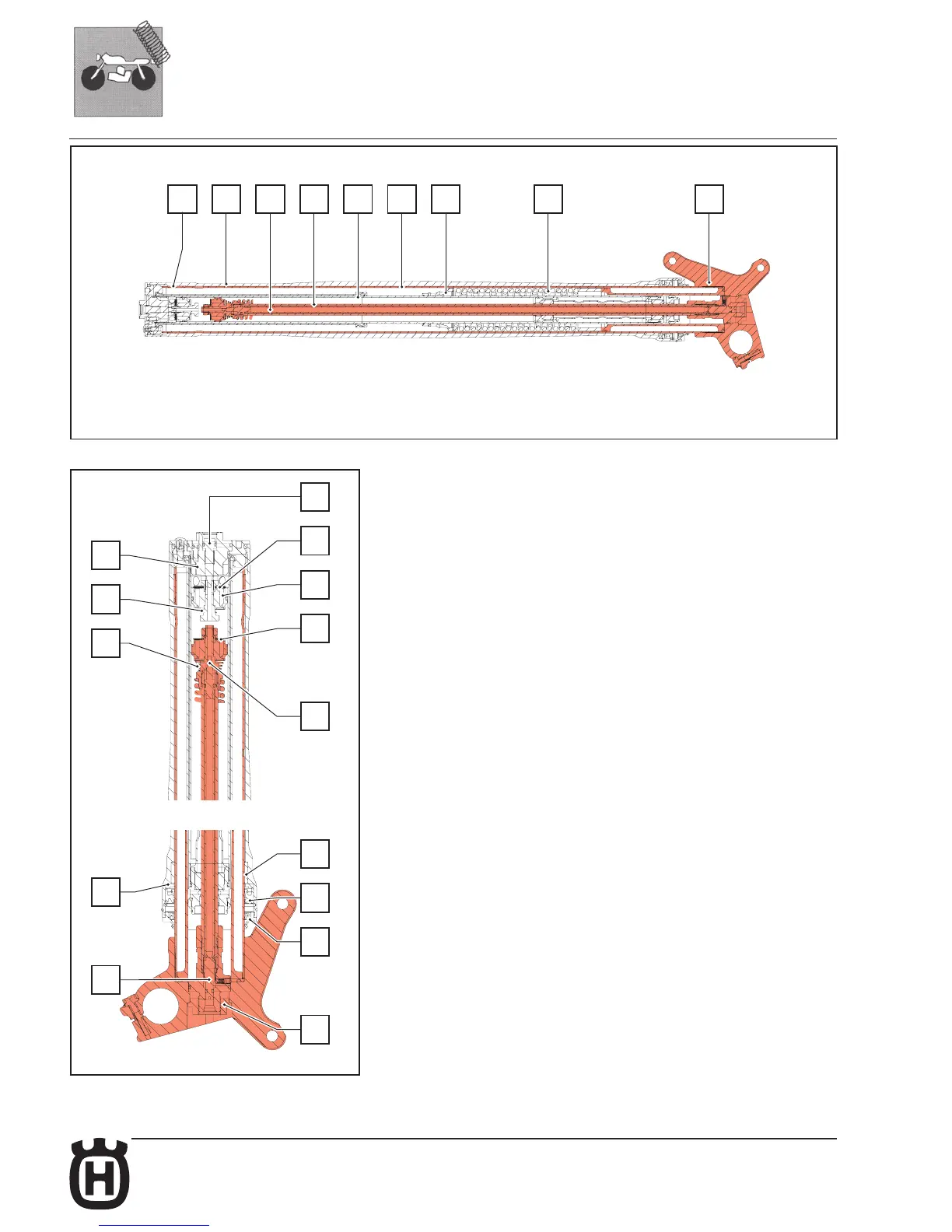

In the following • gure,the moving parts holding the wheel are indicated in
different colors (background highlighted)from those that remain • xed to the
motorcycle frame (light background).
11 24 25 1935 44 53 7046
3
14
16
48
12
39
33
72
41
37
26
43
71
13
