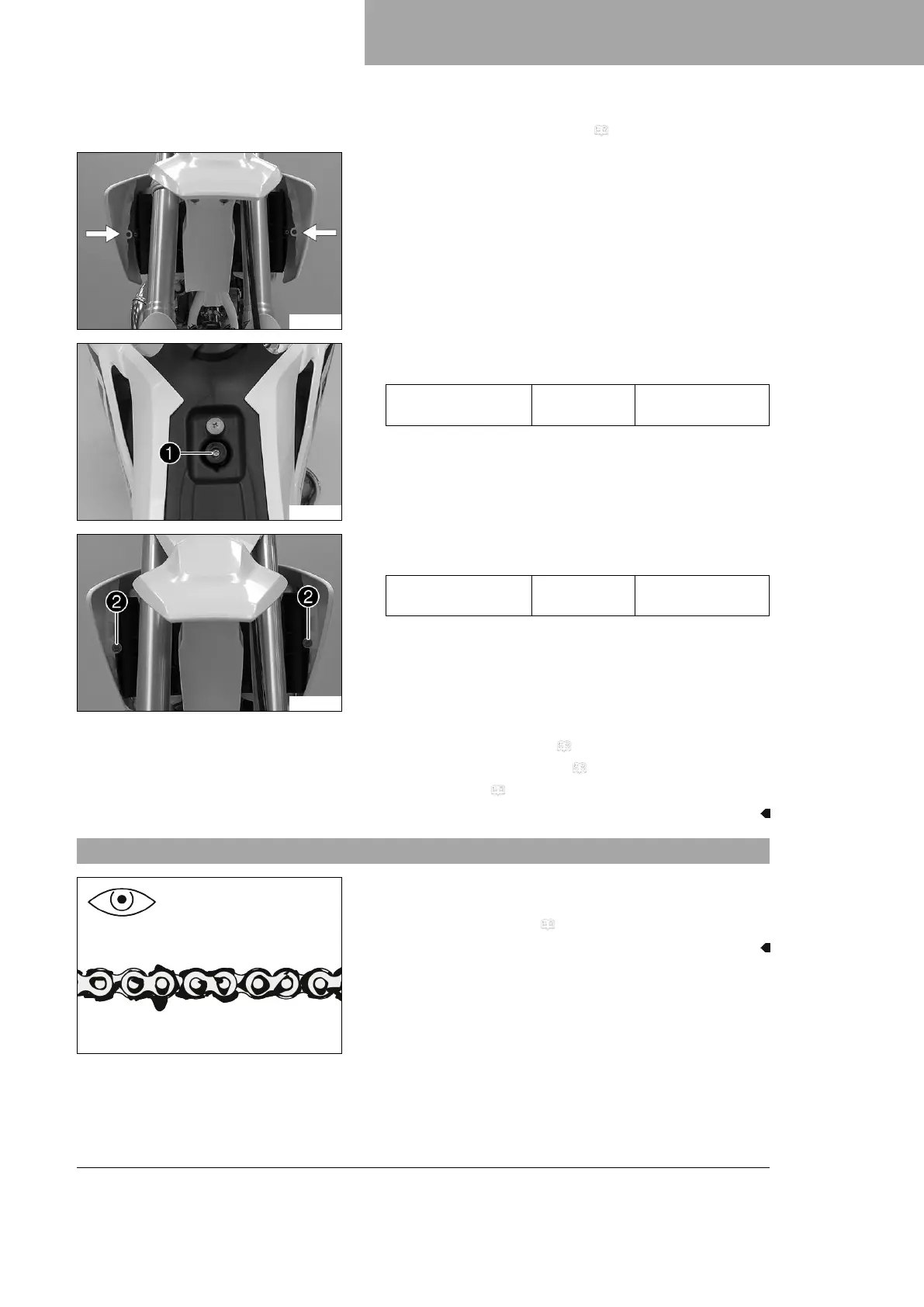

SERVICE WORK ON THE CHASSIS 11
65
Main work
– Check the throttle cable routing. ( p. 71)
K00971-10
– Position the fuel tank and fit the two spoilers to the sides of
the radiator bracket.
– Make sure that no cables or throttle cables are trapped or
damaged.
K00969-11
–
Mount and tighten screw
1
with the rubber bushing.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
K00968-11
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Mount fuel hose.
– Position the fuel tank breather in the steering stem.
Finishing work
– Install the right side cover. ( p. 63)
– Install the air filter box cover. ( p. 59)
– Mount the seat. ( p. 58)
11.34 Checking for chain dirt accumulation
400678-01
– Check the chain for coarse dirt accumulation.
» If the chain is very dirty:
– Clean the chain. ( p. 66)
