Husqvarna TE 449 - 511 2011 I.E. User Manual

F.3
TC 449 2011/2012 I.E.
TE 449 - 511 2011/2012 I.E.
TXC 449 - 511 2011/2012 I.E.
SMR 449 2011 I.E.
SMR 511 2011/2012 I.E.
H01716
H01715
Workshop Manual Ed. 03-2012

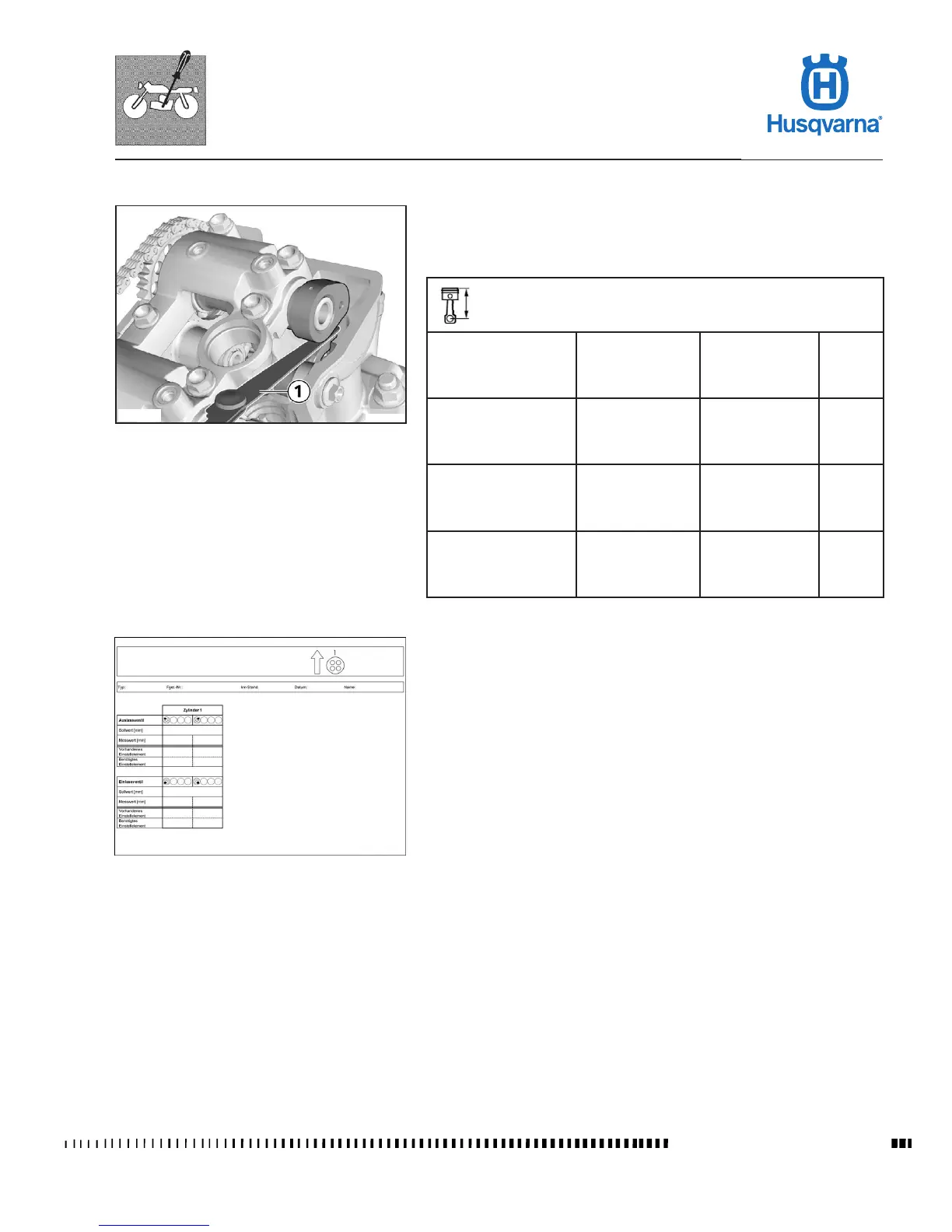

ADJUSTMENTS - ENGINE
Remove head cover as described in section F1
Check
• Check valve clearance using a feeler gauge (1).
Technical specications
Intake valve clearance with cold engine
Max. 35 °C
0,71...15,65 in
(0,05...0,10 mm)
TE - TXC
- SMR
Intake valve clearance with cold engine
Max. 35 °C
2,84...3,56 in
(0,20...0,25 mm)
TC
Exhaust valve clearan-
ce
with cold engine
Max. 35 °C
3,56...4,27 in
(0,25...0,30 mm)
TE - TXC
- SMR
Exhaust valve clearan-
ce
with cold engine
Max. 35 °C
4,27...4,98 in
(0,30...0,35 mm)
TC
Result: Valve clearance outside tolerance values.
Action:
• When assembling, use adjuster plates, and the correct half-balls.
Take note of readings.
• Take note of readings on a measurement card.
Valve clearance check
