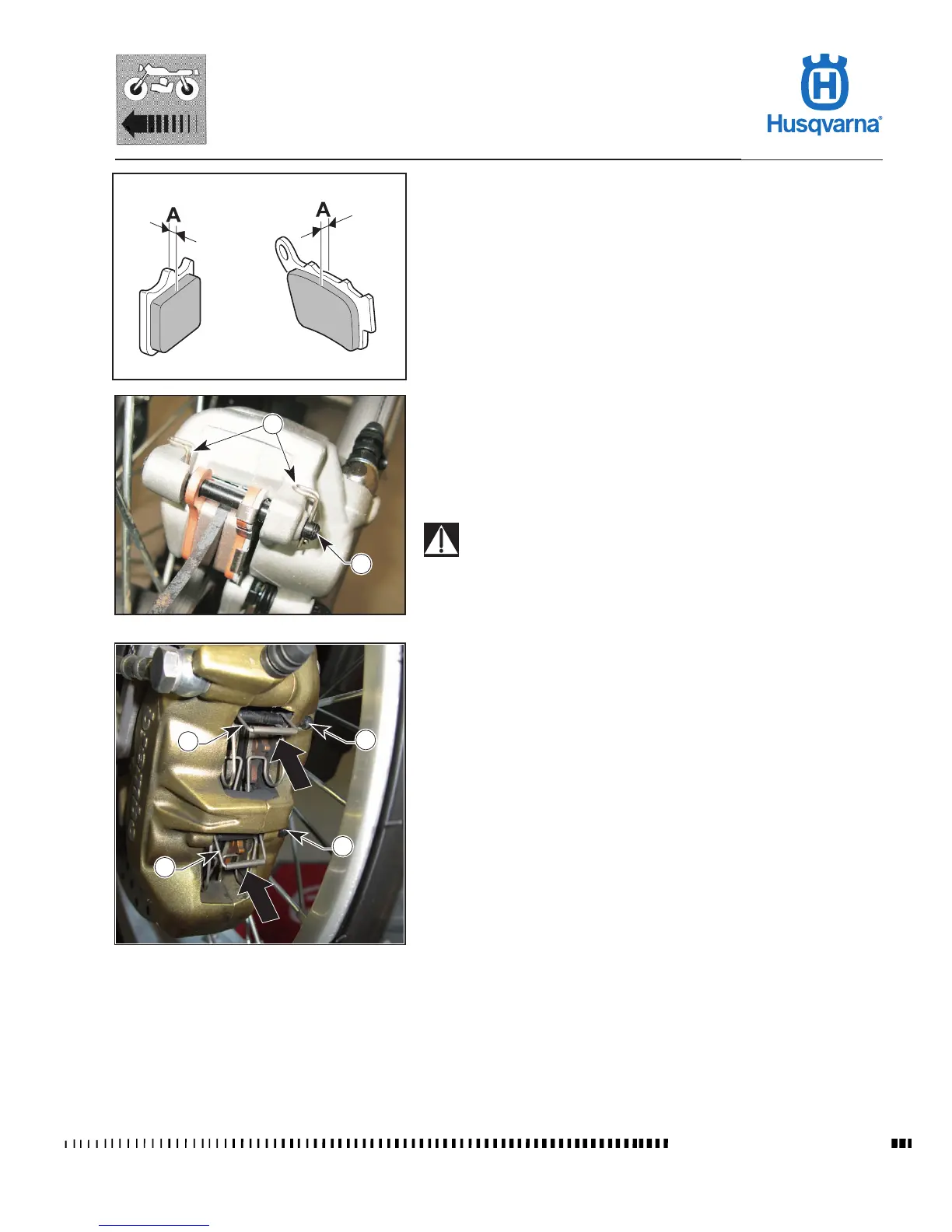

Checking brake pads for wear / replacing the pads (SMR)
Check brake pad wear.
Service limit ”A”
- 3.8 mm (0,15 in) (front and rear pads)
If service limit is exceeded, always replace the pads in pairs.
Be careful that no brake uid or any oil gets on brake pads or discs. Clean off
with alcohol any uid or oil that inadvertently gets on the pads or disc. Replace
the pads with new ones if they cannot be cleaned satisfactorily.
PADS REMOVAL
REAR
- Remove clips (1).
- Slide out pin (2).
- Remove pads.
FRONT
- Press on clips (3).
- Slide out pins (4).
- Remove clips (3).
- Remove pads.
Do not work the brake lever or pedal while removing the pads.
PADS INSTALLATION
REAR
- Install new brake pads.
- Reassemble the two pins (2) and the clips (1).
FRONT
- Install new brake pads.
- Install clips (3) by pushing them toward the calliper.
- Install the pins (4).
- Pull clips (3) out, to make sure they are engaged on pins (4)
