Husqvarna YTH20F42T - Wheels and Tires

37
TRACTOR - - MODEL NUMBER YTH20F42T (96043003900), PRODUCT NO. 960 43 00-39
DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex

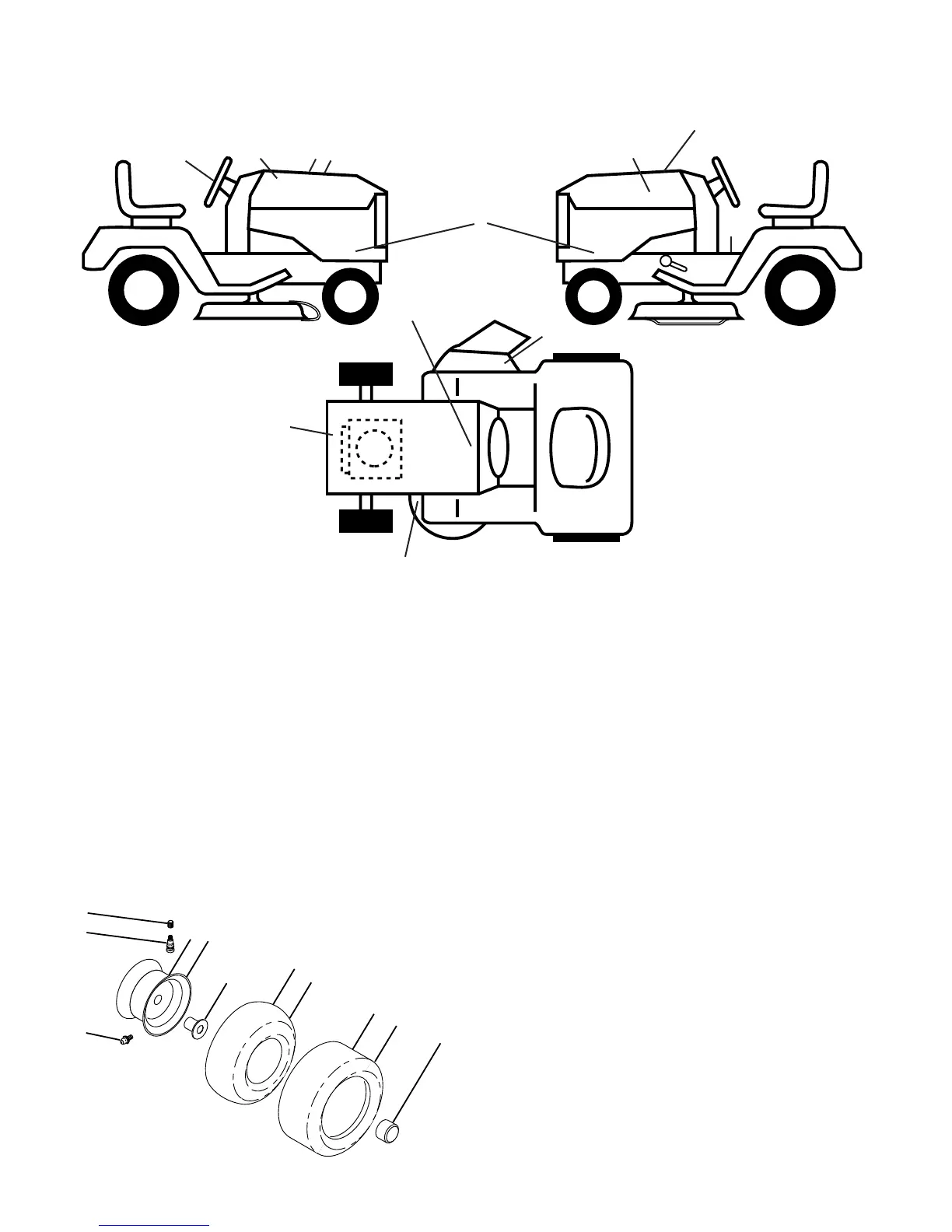

WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Front Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire Front 15 x 6.0-6 Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 13 84-68 Tire R T 20 x 8-8 Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 13 83-37 Rim Asm 8" Rear Service
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
1 532 41 16-58 Decal, Operators
2 532 41 68-38 Decal, Hood
3 532 40 83-56 Decal, Hood Panel SD
5 532 18 09-41 Decal, Customer Respons.
6 532 41 70-80 Decal, Replacement
7 532 40 44-84 Decal, Steering Wheel
8 532 17 05-63 Decal Mower Warn Keep Hand away
9 532 14 50-05 Decal, Battery Dnge/Poi
12 532 16 03-96 Decal, Mower V-Belt Schematic
- - 532 16 69-60 Decal, Bypass
- - 532 41 08-05 Pad, Footrest, LH
- - 532 41 08-06 Pad, Footrest, RH
