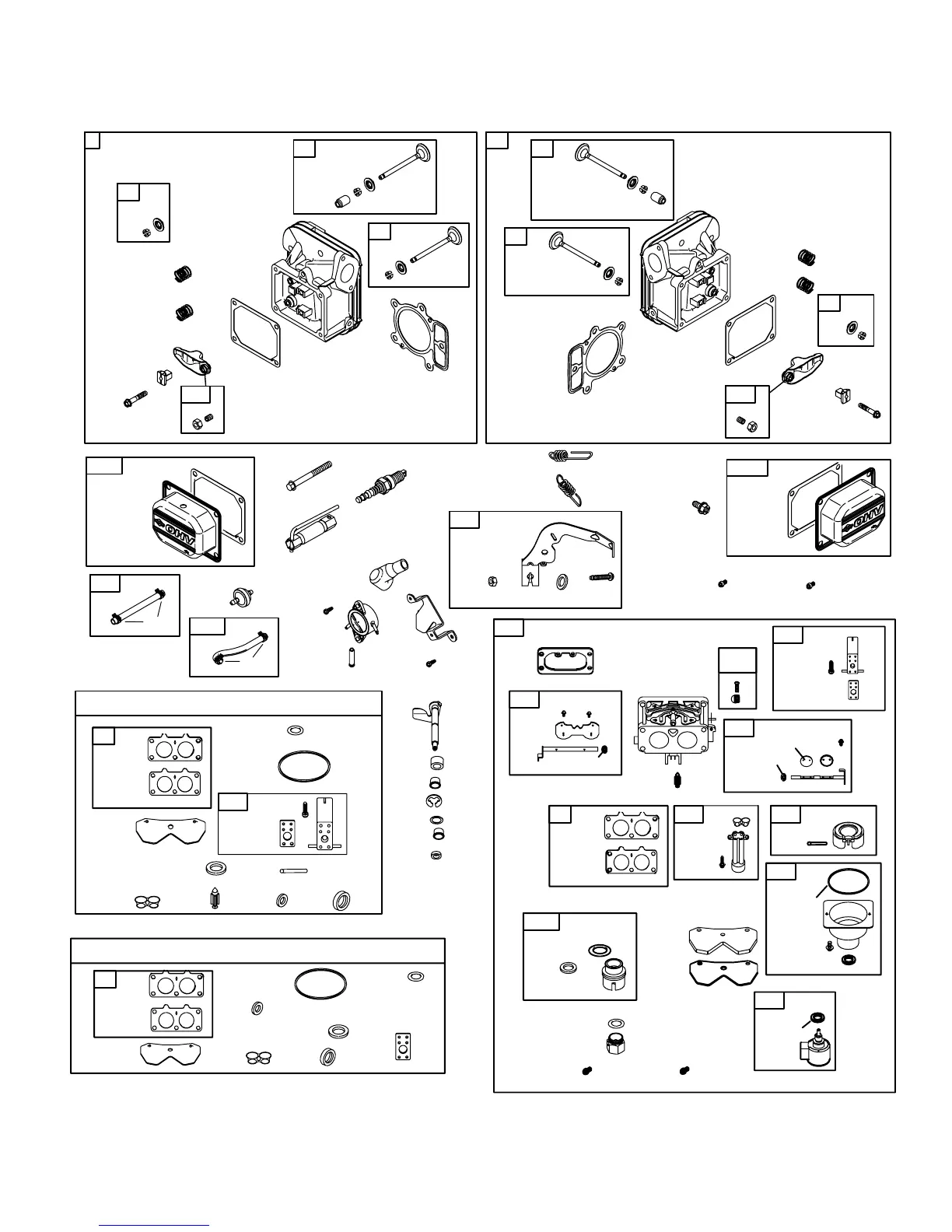

OR - - MODEL NUMBER 917.279180
BRIGGS ENGINE - MODEL NUMBER 441777,
TYPE NUMBER 0284-E1
5
42
192
34
33
35
36
868
1022
1029
1
100
798
5A
34
33
868
7
7
1022
35
36
42
1029
1
100
798
192
1023
1023A
13
1022
1022
21
1
209
227
505
562
337
383
635
240
187
601
601
187A
385
387
918
788
628
914
691
552A
404
742
552A
552
616
125
163
141
231
108
633
105
51
98
135
1
124
1
126
418
672
1342
1353
276
1
17
1
17A
1
123
160
142
1
128
150
131
987
130
95
104
276
276
1
127
137
947
975
133
1
18A
1
18
121
CARBURETOR
OVERHAUL
KIT
977
CARBURETOR
GASKET
SET
51
1
123
137
672
276
104
1
124
105
633
987
142
150
1
128
51
672
137
633
150
276
1
124
987
1
123
278
42
44
Table of Contents
Safery Rules
2
General Operation
2
Slope Operation
2
Towing
3
Safe Service
3
Safe Handling of Gasoline
3
Children
3
Table of Contents
4
Product Specifications
4
Customer Responsibilities
4
To Adjust Seat
5
To Roll Tractor off Skid
5
Unassembled Parts
5
Assembly
5
To Drive Tractor off Skid
6
Checklist
6
Symbols Meaning
7
Operation
7
Controls Overview
8
To Set Parking Brake
9
Stopping
9
To Use Throttle Control
9
To Move Forward and Backward
9
Reverse Operation System (ROS)
10
To Adjust Gauge Wheels
10
To Operate Mower
10
To Adjust Mower Cutting Height
10
To Operate on Hills
11
To Transport
11
Check Engine Oil Level
11
Add Gasoline
11
To Start Engine
12
Purge Transmission
12
Mowing Tips
13
Operation
13
Lubrication Chart
14
Maintenance Recommendations
14
Checks before each Use
14
Maintenance Schedule
14
Brake Operation
15
Tires Maintenance
15
Operator Presense System and Reverse Operation System (ROS)
15
Blade Care
15
Battery
15
Air Filter
16
Engine Oil Filter
16
Transaxle Pump Fluid
16
Clean Air Screen
16
Engine Lubrication
16
Transaxle Cooling
16
Muffler
17
Spark Plugs
17
In-Line Fuel Filter
17
Cleaning
17
To Remove Mower
18
To Install Mower
18
Service and Adjustments
18
To Level Mower
19
To Replace Mower Drive Belt
20
To Check Brake
21
To Replace Motion Drive Belt
21
Front Wheel Toe-In/Camber
21
To Remove Wheel for Repairs
21
To Start Engine with a Weak Battery
22
Replacing Battery
22
To Replace Headlight Bulb
22
To Replace Fuse
22
To Adjust Carburetor
23
To Adjust Choke Control
23
To Adjust Throttle Control Cable
23
To Remove Hood and Grill Assembly
23
Fuel System
24
Engine Oil
24
Storage
24
Trou Bleshoot Ing
25
Schematic Diagram
27
Electrical Parts Diagram
28
Chassis Diagram
30
Steering Assembly Diagram
31
Drive Diagram
32
Engine Diagram
34
Mower Lift Diagram
35
Seat Assembly Diagram
36
Decals
37
Weels and Tires Diagram
37
Mower Deck Diagram
38
Hydro Transaxle Exploded Diagram
40
Briggs Engine Diagrams
42
Repair Parts
42
Briggs Engine Parts List
45
Suggested Guide for Sighting Slopes for Safe Operation
47
5
Based on 1 rating
