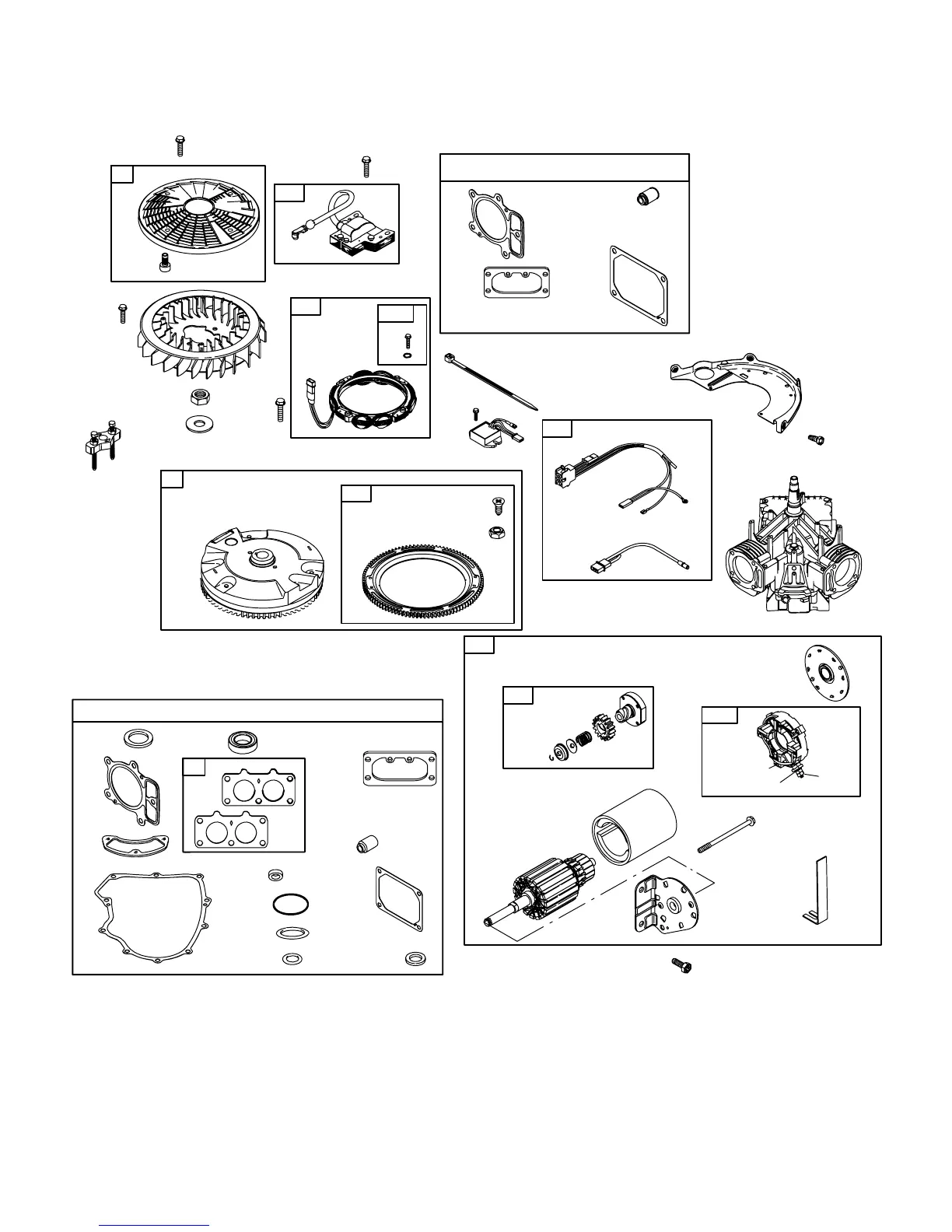

OR - - MODEL NUMBER 917.279180
BRIGGS ENGINE - MODEL NUMBER 441777,
TYPE NUMBER 0284-E1
333
668
73
851
334
474
74
1070
1005
332
7
5
111
9
726
165
695
573
405
48
23
363
309
510
1051
783
513
802
1090
31
1
797A
797
803
544
310
801
697
1059
503
789
501
526
1054
789A
877
1095
V
AL
VE
GASKET
SET
358
ENGINE
GASKET
SET
7
868
163
1022
1022
868
163
7
32
0
51
9
12
691
943
842
524
276
43
45
Table of Contents
Safery Rules
2
General Operation
2
Slope Operation
2
Towing
3
Safe Service
3
Safe Handling of Gasoline
3
Children
3
Table of Contents
4
Product Specifications
4
Customer Responsibilities
4
To Adjust Seat
5
To Roll Tractor off Skid
5
Unassembled Parts
5
Assembly
5
To Drive Tractor off Skid
6
Checklist
6
Symbols Meaning
7
Operation
7
Controls Overview
8
To Set Parking Brake
9
Stopping
9
To Use Throttle Control
9
To Move Forward and Backward
9
Reverse Operation System (ROS)
10
To Adjust Gauge Wheels
10
To Operate Mower
10
To Adjust Mower Cutting Height
10
To Operate on Hills
11
To Transport
11
Check Engine Oil Level
11
Add Gasoline
11
To Start Engine
12
Purge Transmission
12
Mowing Tips
13
Operation
13
Lubrication Chart
14
Maintenance Recommendations
14
Checks before each Use
14
Maintenance Schedule
14
Brake Operation
15
Tires Maintenance
15
Operator Presense System and Reverse Operation System (ROS)
15
Blade Care
15
Battery
15
Air Filter
16
Engine Oil Filter
16
Transaxle Pump Fluid
16
Clean Air Screen
16
Engine Lubrication
16
Transaxle Cooling
16
Muffler
17
Spark Plugs
17
In-Line Fuel Filter
17
Cleaning
17
To Remove Mower
18
To Install Mower
18
Service and Adjustments
18
To Level Mower
19
To Replace Mower Drive Belt
20
To Check Brake
21
To Replace Motion Drive Belt
21
Front Wheel Toe-In/Camber
21
To Remove Wheel for Repairs
21
To Start Engine with a Weak Battery
22
Replacing Battery
22
To Replace Headlight Bulb
22
To Replace Fuse
22
To Adjust Carburetor
23
To Adjust Choke Control
23
To Adjust Throttle Control Cable
23
To Remove Hood and Grill Assembly
23
Fuel System
24
Engine Oil
24
Storage
24
Trou Bleshoot Ing
25
Schematic Diagram
27
Electrical Parts Diagram
28
Chassis Diagram
30
Steering Assembly Diagram
31
Drive Diagram
32
Engine Diagram
34
Mower Lift Diagram
35
Seat Assembly Diagram
36
Decals
37
Weels and Tires Diagram
37
Mower Deck Diagram
38
Hydro Transaxle Exploded Diagram
40
Briggs Engine Diagrams
42
Repair Parts
42
Briggs Engine Parts List
45
Suggested Guide for Sighting Slopes for Safe Operation
47
