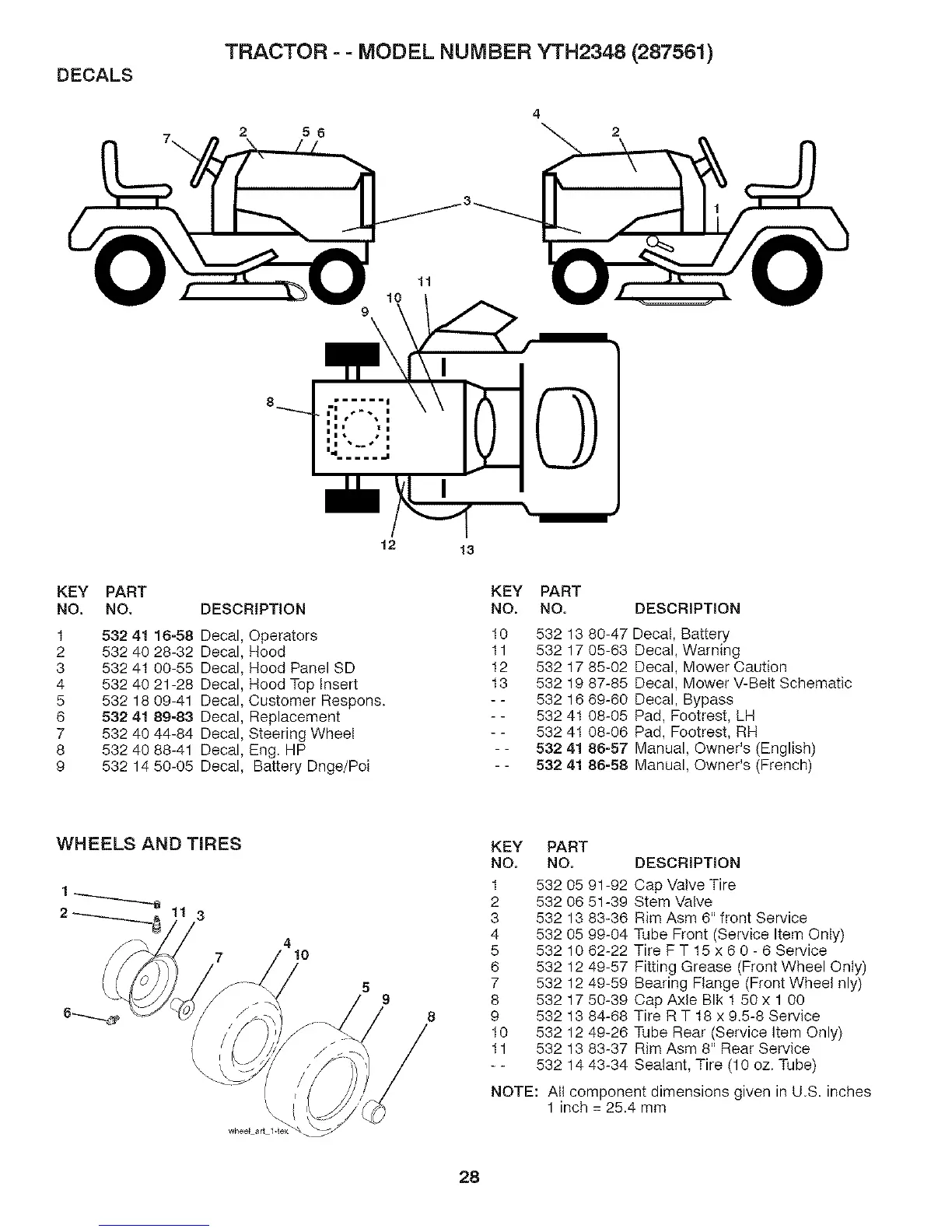

Husqvarna YTH2348 - Tractor (Model Number YTH2348 (287561) Decals; Tractor (Model Number YTH2348 (287561) Wheels and Tires

DECALS
TRACTOR - - MODEL NUMBER YTH2348 (287561)
56
4
\
11
9
12 13
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
5
6
7
8
9
532 41 16-58 Decal, Operators
532 40 28-32 Decal, Hood
532 4t 00-55 Decal, Hood Panel SD
532 40 21-28 Decal, Hood Top Insert
532 18 09-41 Decal, Customer Respons.
532 41 89-83 Decal, Replacement
532 40 44-84 Decal, Steering Wheel
532 40 88-41 Decal, Eng. HP
532 14 50-05 Decal, Battery Dnge/Poi
KEY PART
NO. NO. DESCRIPTION
10 532 13 80-47 Decal, Battery
11 532 17 05-63 Decal, Warning
12 532 17 85-02 Decal, Mower Caution
13 532 19 87-85 Decal, Mower V-Belt Schematic
- - 532 16 69-60 Decal, Bypass
- - 532 41 08-05 Pad, Footrest, LH
- - 532 41 08-06 Pad, Footrest, RH
- - 532 41 86-57 Manual, Owner's (English)
- - 532 41 86-58 Manual, Owner's (French)
WHEELS AND TIRES
2 3
\
\
whee_rt
4
10
5
9
8
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Asm 6" front Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire F T t5 x 6 0 - 6 Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel nly)
8 532 17 50-39 Cap Axie BIk 1 50 x 1 00
9 532 13 84-68 Tire R T 18 x 9.5-8 Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 13 83-37 Rim Asm 8" Rear Service
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
NOTE: AII component dimensions given in U.S. inches
1 inch = 25.4 mm
28
