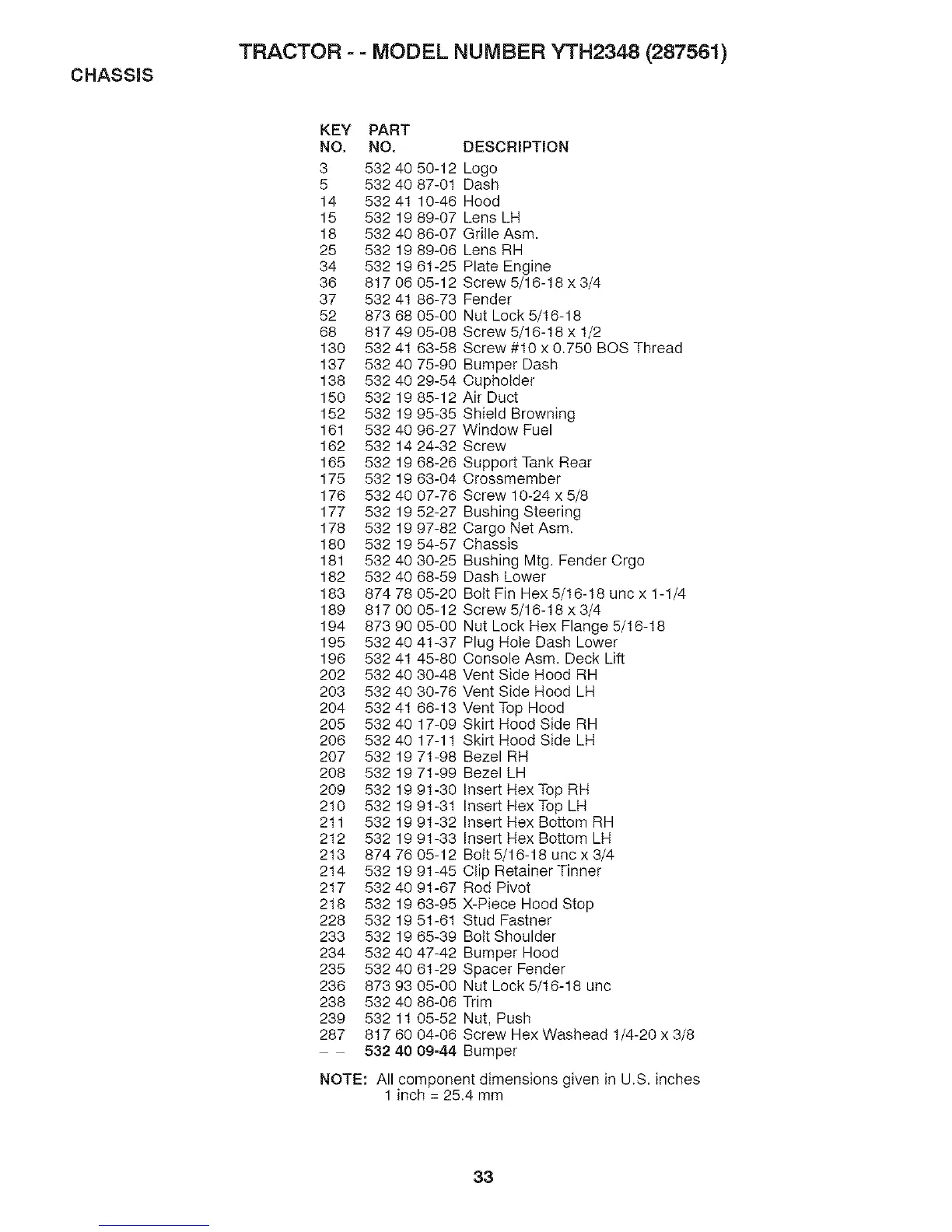

CHASSIS
TRACTOR - - MODEL NUMBER YTH2348 (287561)
KEY PART
NO. NO. DESCRIPTION
3 532 40 50-12 Logo
5 532 40 87-01 Dash
14 53241 10-46 Hood
15 532 19 89-07 Lens LH
18 532 40 86-07 Grille Asm,
25 532 19 89-06 Lens RH
34 532 19 81-25 Plate Engine
36 8170605-12 Screw 5/16-18 × 3/4
37 532 41 86-73 Fender
52 873 88 05-00 Nut Lock 5/18-18
88 8174905-08 Screw 5/16-18 × 1/2
130 53241 63-58 Screw#10×0,750 BOSThread
137 532 40 75-90 Bumper Dash
138 532 40 29-54 Cuphotder
150 532 19 85-12 Air Duct
152 532 19 95-35 Shield Browning
181 532 40 96-27 Window Fuel
162 532 14 24-32 Screw
165 532 19 68-26 Support Tank Rear
175 532 19 63-04 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8
177 532 19 52-27 Bushing Steering
178 532 19 97-82 Cargo Net Asm.
180 532 19 54-57 Chassis
181 532 40 30-25 Bushing Mtg. Fender Orgo
182 532 40 68-59 Dash Lower
183 8747805-20 Bolt Fin Hex 5/16-18 unc x1-1/4
189 8170005-12 Screw 5/16-18 x 3/4
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
195 532 40 41-37 Plug Hole Dash Lower
196 532 41 45-80 Console Asm. Deck Lift
202 532 40 30-48 Vent Side Hood RH
203 532 40 30-76 Vent Side Hood LH
204 532 41 66-13 Vent Top Hood
205 532 40 17-09 Skirt Hood Side RH
206 532 40 17-1t Skirt Hood Side LH
207 532 19 71-98 Bezel RH
208 532 19 71-99 Bezel LH
209 532 19 91-30 Insert HexTop RH
210 532 19 91-31 Insert HexTop LH
2t 1 532 19 91-32 Insert Hex Bottom RH
212 532 19 9t-33 Insert Hex Bottom LH
2t3 8747605-12 Bott5/16-18uncx3/4
214 532 19 91-45 Ctip RetainerTinner
217 532 40 91-67 Rod Pivot
2t8 532 19 63-95 X-Piece Hood Stop
228 532 19 51-61 Stud Fastner
233 532 19 65-39 Bolt Shoulder
234 532 40 47-42 Bumper Hood
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Lock 5/16-18 unc
238 532 40 86-06 Trim
239 532 11 05-52 Nut, Push
287 817 60 04-06 Screw Hex Washead 1/4-20 x 3/8
532 40 99-44 Bumper
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
33
