DRIVE

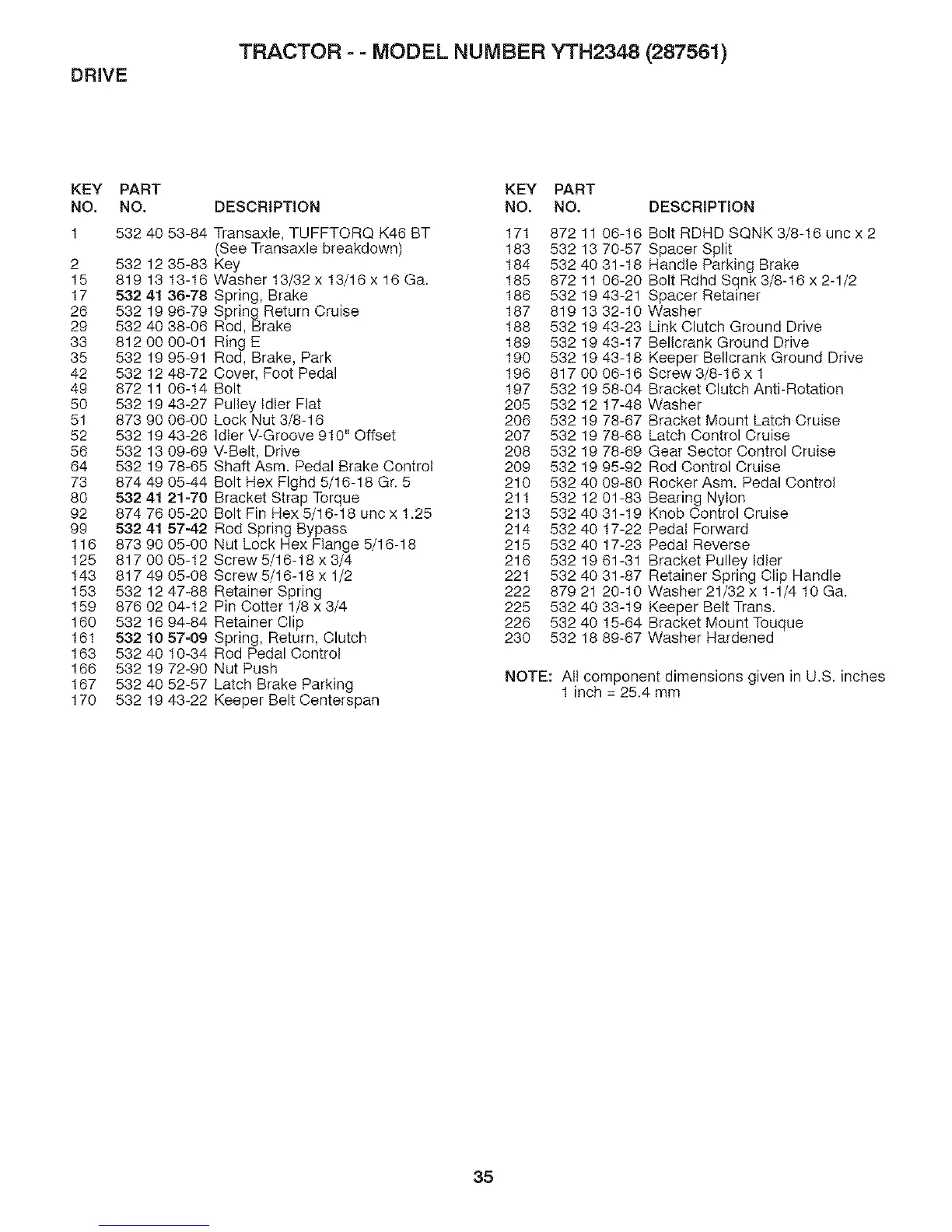

TRACTOR - - MODEL NUMBER YTH2348 (287561)
KEY PART
NO. NO. DESCRIPTION
1 532 40 53-84 TransaxIe, TUFFTORQ K46 BT
(See Transaxle breakdown)
2 532 12 35-83 Key
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 41 36-78 Spring, Brake
26 532 19 96-79 Spring Return Cruise
29 532 40 38-06 Rod, Brake
33 8120000-01 RingB
35 532 19 95-91 Rod, Brake, Park
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idter Fiat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idbr V-Groove 910" Offset
56 532 13 09-69 V-Belt, Drive
64 532 19 78-65 Shaft Asm. Pedal Brake Control
73 874 49 05-44 Bolt Hex Flghd 5/16-18 Gr. 5
80 532 41 21=79 Bracket Strap Torque
92 8747605-20 Bolt Fin Hex 5/16-18 unc x t.25
99 532 41 57-42 Rod Spring Bypass
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 8170005-12 Screw 5/16-18 x 3/4
143 817 49 05-08 Screw 5/16-18 x 1/2
153 532 12 47-88 Retainer Spring
159 8760204-12 PinOotterl/8x3/4
160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring, Return, Clutch
163 532 40 10-34 Rod Pedal Control
166 532 19 72-90 Nut Push
167 532 40 52-57 Latch Brake Parking
170 532 19 43-22 Keeper Belt Centerspan
KEY PART
NO. NO. DESCRIPTION
171 872 11 06-16
183 532 13 70-57
184 5324031-18
185 872 11 06-20
186 5321943-21
187 819 13 32-10
188 532 19 43-23
189 532 19 43-17
190 532 19 43-18
196 817 00 06-16
197 532 19 58-04
205 532 12 17-48
206 532 19 78-67
207 532 19 78-68
208 532 19 78-69
209 532 19 95-92
210 532 40 09-80
211 532 12 01-83
213 5324631-19
214 532 40 17-22
215 532 40 17-23
216 532 19 61-31
22t 532 40 31-87
222 879 21 20-10
225 532 40 33-19
226 532 40 15-64
230 532 18 89-67
Bolt RDHD SQNK 3/8-16 unc x 2
Spacer Split
Handle Parking Brake
Bolt Rdhd Sqnk 3/8-t6 x 2-1/2
Spacer Retainer
Washer
Link Clutch Ground Drive
Bellcrank Ground Drive
Keeper Bellcrank Ground Drive
Screw 3/8-16 x 1
Bracket Clutch Anti-Rotation
Washer
Bracket Mount Latch Cruise
Latch Control Cruise
Gear Sector Control Cruise
Rod Control Cruise
Rocker Asm. Pedal Control
Bearing Nylon
Knob Control Cruise
Pedal Forward
Pedal Reverse
Bracket Pulley idler
Retainer Spring Clip Handle
Washer 21/32 x 1-1/4 10 Ga.
Keeper Belt Trans.
Bracket Mount Touque
Washer Hardened
NOTE: Ait component dimensions given in U.S. inches
1 inch = 25.4 mm
