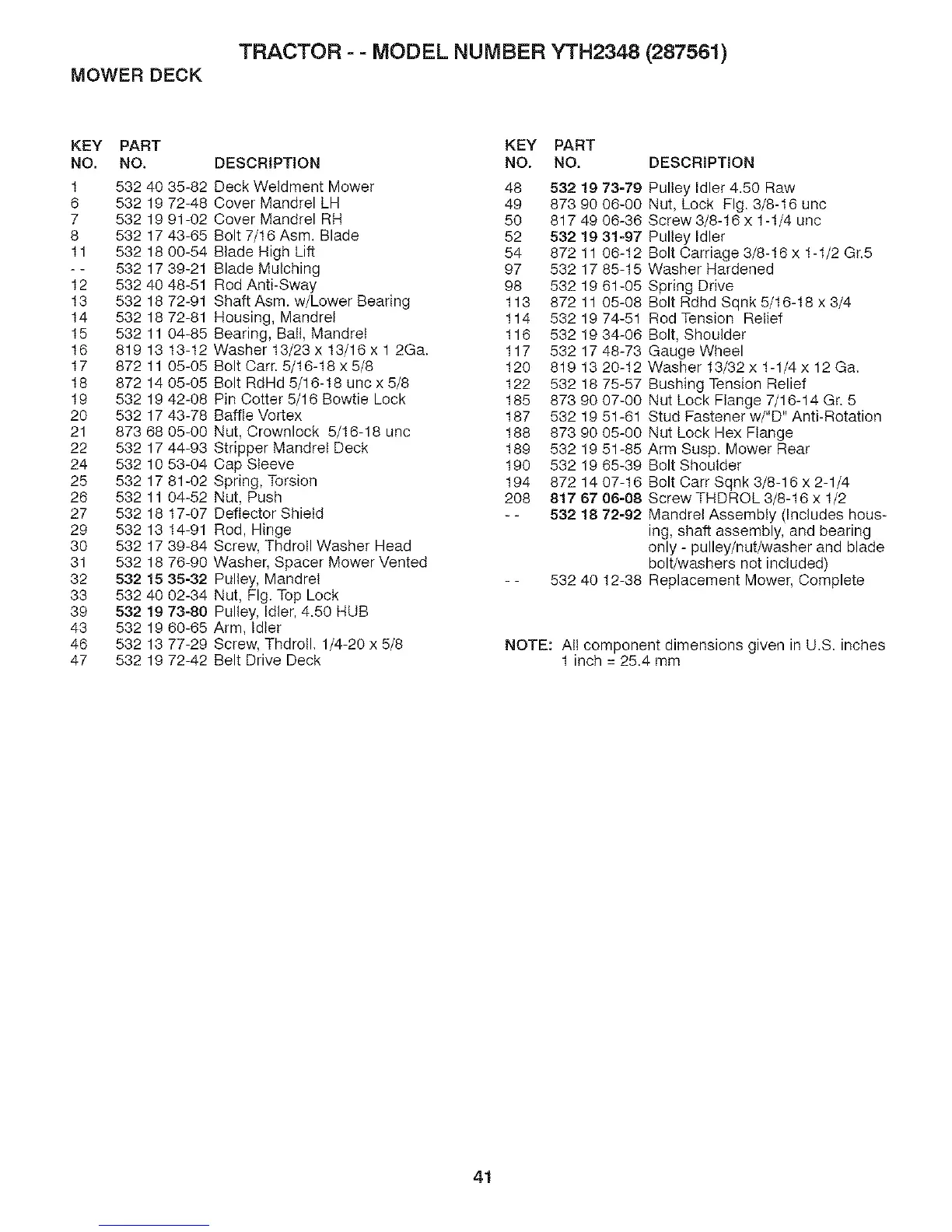

MOWER DECK
TRACTOR - - MODEL NUMBER YTH2348 (287561)
KEY PART
NO. NO. DESCRIPTION
1 532 40 35-82 Deck Weldment Mower
6 532 19 72-48 Cover Mandrel LH
7 532 19 91-02 Cover Mandrel RH
8 532 1743-65 Bolt 7/16 Asm. Blade
11 532 18 00-54 Blade High Lift
- - 532 17 39-21 Blade Mulching
12 532 40 48-51 Rod Anti-Sway
13 532 18 72-91 Shaft Asm. w/Lower Bearing
14 532 18 72-81 Housing, Mandrel
15 532 11 04-85 Bearing, Bait, Mandrel
16 819 13 13-12 Washer 13/23 x 13/16 x 1 2Ga.
17 872 11 05-05 Bolt Cart. 5/16-18 x 5/8
18 872 1405-05 Bolt RdHd 5/16-18 unc x 5/8
19 532 19 42-08 Pin Cotter 5/16 Bowtie Lock
20 532 17 43-78 Baffle Vortex
21 873 68 05-00 Nut, Crownlock 5/16-18 unc
22 532 17 44-93 Stripper Mandrel Deck
24 532 10 53-04 Cap Sleeve
25 532 17 81-02 Spring, Torsion
26 532 11 04-52 Nut, Push
27 532 18 17-07 Deflector Shield
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw, ThdroII Washer Head
31 532 18 76-90 Washer, Spacer Mower Vented
32 532 15 35-32 Pulley, Mandrel
33 532 46 02-34 Nut, Fig. Top Lock
39 532 19 73-80 Pulley, Idler, 4.50 HUB
43 532 19 60-65 Arm, Idler
46 532 13 77-29 Screw, Thdrotl. 1/4-20 x 5/8
47 532 19 72-42 Belt Drive Deck
KEY PART
NO. NO, DESCRIPTION
48 532 19 73-79
49 873 90 06-00
50 817 49 06-36
52 532 19 31-97
54 872 11 06-12
97 532 17 85-15
98 532 19 61-05
113 87211 05-08
114 532 19 74-51
116 532 19 34-06
117 5321748-73
120 819 13 20-12
122 532 18 75-57
185 873 90 07-00
187 532 19 51-61
188 873 90 05-00
189 5321951-85
190 532 19 65-39
194 872 14 07-16
208 817 67 06-08
- - 532 18 72=92
532 40 I2-38
Pulley Idler 4.50 Raw
Nut, Lock Fig. 3/8-16 unc
Screw 3/8-t6 x t-1/4 unc
Pulley Idler
Bolt Carriage 3/8-16 x 1-1/2 Gr.5
Washer Hardened
Spring Drive
Bolt Rdhd Sqnk 5/16-18 x 3/4
Rod Tension Relief
Bolt, Shoulder
Gauge Wheel
Washer 13/32 x 1-1/4 x 12 Ga.
Bushing Tension Relief
Nut Lock Flange 7/16-14 Gr. 5
Stud Fastener w/"D" Anti-Rotation
Nut Lock Hex Flange
Arm Susp. Mower Rear
Bolt Shoulder
Bolt Cart Sqnk 3/8-16 x 2-1/4
Screw THDROL 3/8-16 x 1/2
Mandrel Assembly (Includes hous-
ing, shaft assembly, and bearing
only - pulley/nut/washer and blade
bolt/washers not included)
Replacement Mower, Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
