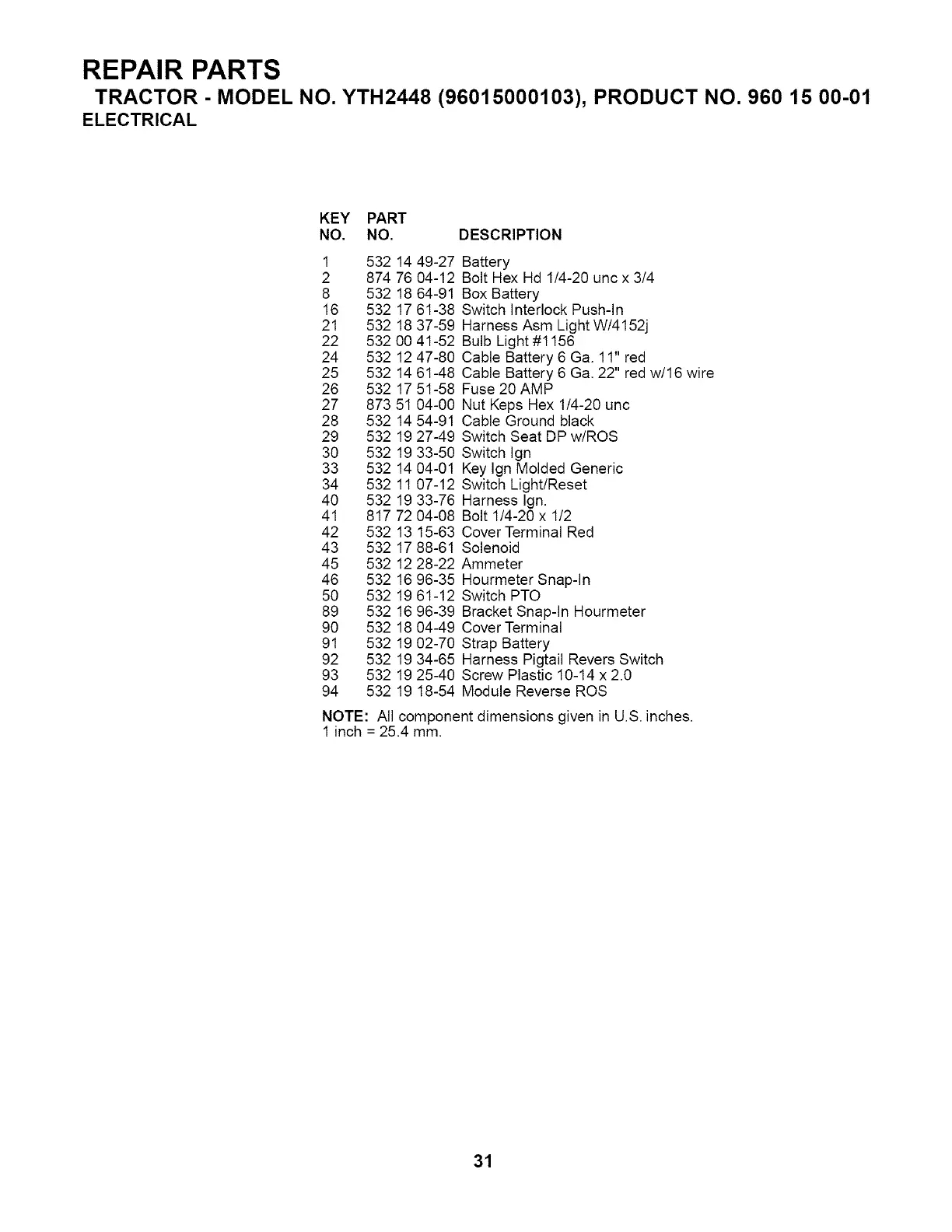

REPAIR PARTS
TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 14 49-27
2 874 76 04-12
8 532 18 64-91
16 532 17 6t-38
2t 532 18 37-59
22 532 O041-52
24 532 12 47-80
25 532 14 61-48
26 532 17 51-58
27 873 51 04-00
28 532 14 54-91
29 532 19 27-49
30 532 19 33-50
33 532 14 04-0t
34 532 11 07-12
40 532 19 33-76
41 817 72 04-08
42 532 13 15-63
43 532 17 88-6t
45 532 12 28-22
46 532 16 96-35
50 532 19 61-12
89 532 16 96-39
90 532 18 04-49
9t 532 19 02-70
92 532 19 34-65
93 532 19 25-40
94 532 19 18-54
Battery
Bolt Hex Hd 1/4-20 unc x 3/4
Box Battery
Switch Interlock Push-In
Harness Asm Light W/4152j
Bulb Light #1156
Cable Battery 6 Ga. 11" red
Cable Battery 6 Ga. 22" red w/16 wire
Fuse 20 AMP
Nut Keps Hex 1/4-20 unc
Cable Ground black
Switch Seat DP w/ROS
Switch Ign
Key Ign Molded Generic
Switch Light/Reset
Harness Ign.
Bolt 1/4-20 x 1/2
Cover Terminal Red
Solenoid
Ammeter
Hourmeter Snap-In
Switch PTO
Bracket Snap-In Hourmeter
Cover Terminal
Strap Battery
Harness Pigtail Revers Switch
Screw Plastic 10-14 x 2.0
Module Reverse ROS
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
