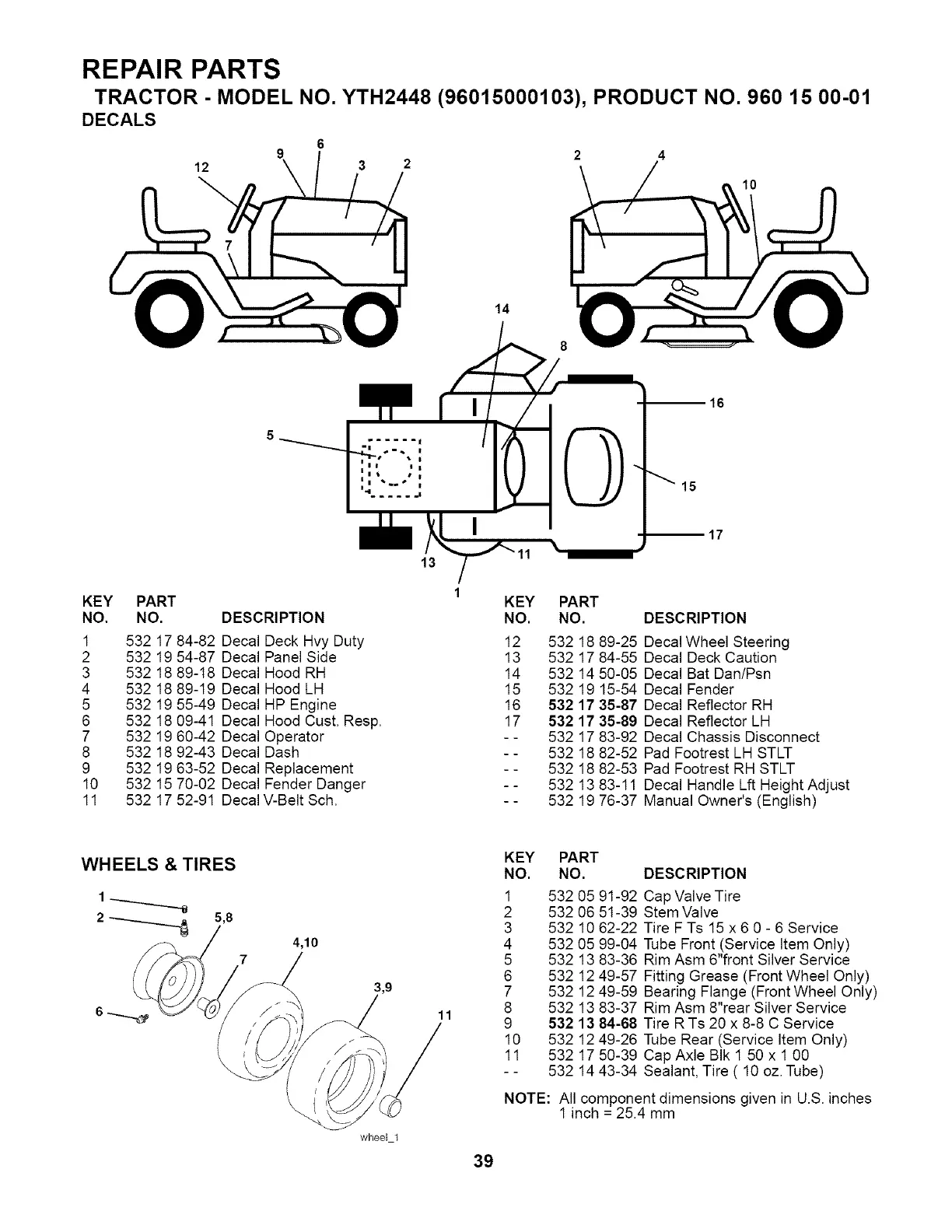

REPAIR PARTS
TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01
13
12
\
DECALS
14
10
8
16
15
17
KEY PART
NO. NO. DESCRIPTION
1 532 17 84-82 Decal Deck Hvy Duty
2 532 19 54-87 Decal Panel Side
3 532 18 89-18 Decal Hood RH
4 532 18 89-19 Decal Hood LH
5 532 19 55-49 Decal HP Engine
6 532 18 09-41 Decal Hood Cust. Resp.
7 532 19 60-42 Decal Operator
8 532 18 92-43 Decal Dash
9 532 19 63-52 Decal Replacement
10 532 15 70-02 Decal Fender Danger
11 532 17 52-91 Decal V-Belt Sch.
KEY PART
NO. NO.
12 532 18 89-25
13 532 17 84-55
14 532 14 50-05
15 532 19 15-54
16 532 17 35-87
17 532 17 35-89
- - 532 17 83-92
- - 532 18 82-52
- - 532 18 82-53
- - 532 13 83-11
- - 532 19 76-37
DESCRIPTION
Decal Wheel Steering
Decal Deck Caution
Decal Bat Dan/Psn
Decal Fender
Decal Reflector RH
Decal Reflector LH
Decal Chassis Disconnect
Pad Footrest LH STLT
Pad Footrest RH STLT
Decal Handle Lft Height Adjust
Manual Owner's (English)
WHEELS & TIRES
5,8
4,10
7
\\\
3,9
whee_ 1
11
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92
2 532 06 5t-39
3 532 10 62-22
4 532 05 99-04
5 532 13 83-36
6 532 12 49-57
7 532 12 49-59
8 532 13 83-37
9 532 13 84-68
10 532 12 49-26
11 532 17 50-39
- - 532 14 43-34
Cap Valve Tire
Stem Valve
Tire F Ts 15 x 6 0 - 6 Service
Tube Front (Service Item Only)
Rim Asm 6"front Silver Service
Fitting Grease (Front Wheel Only)
Bearing Flange (Front Wheel Only)
Rim Asm 8"rear Silver Service
Tire R Ts 20 x 8-8 C Service
Tube Rear (Service Item Only)
Cap Axle BIk 1 50 x 1 00
Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39
