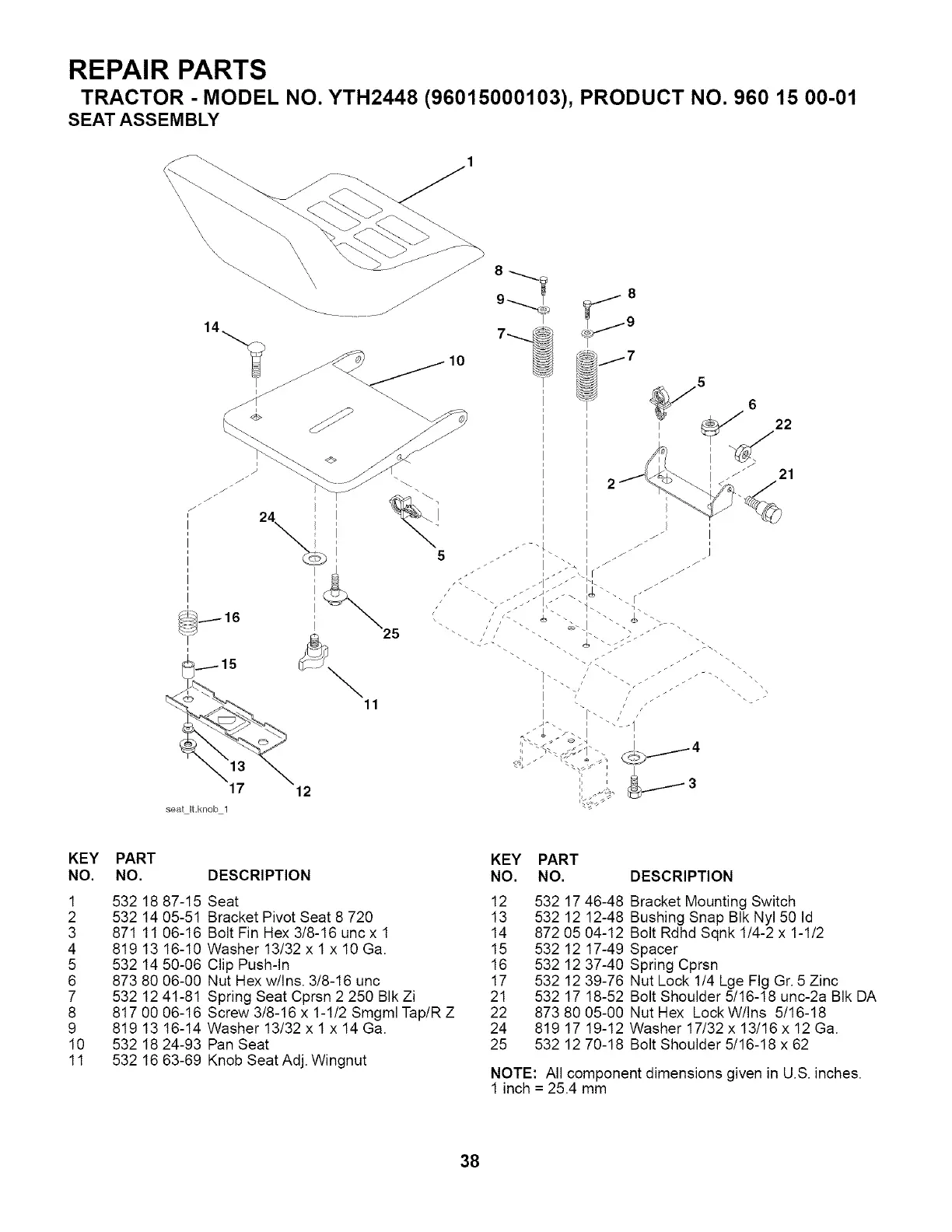

REPAIR PARTS
TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01
SEAT ASSEMBLY
\
\
\\\\
21
KEY
NO.
1
2
3
4
5
6
7
8
9
10
11
PART
NO.
532 18 87-15
532 14 05-5t
871 11 06-16
819 13 16-10
532 14 50-06
873 80 06-00
532 12 41-8t
817 00 06-16
819 13 16-14
532 18 24-93
532 16 63-69
KEY PART
DESCRIPTION NO. NO. DESCRIPTION
Seat 12 532 17
Bracket Pivot Seat 8 720 13 532 12
Bolt Fin Hex 3/8-16 unc x 1 14 872 05
Washer 13/32 x 1 x 10 Ga. 15 532 12
Clip Push-In 16 532 12
Nut Hex w/Ins. 3/8-16 unc 17 532 12
Spring Seat Cprsn 2 250 BIk Zi 21 532 17
Screw 3/8-16 x 1-1/2 Smgml TapiR Z 22 873 80
Washer 13/32 x 1 x 14 Ga. 24 819 17
Pan Seat 25 532 12
Knob Seat Adj. Wingnut
46-48 Bracket Mounting Switch
12-48 Bushing Snap BIk Nyl 50 Id
04-12 Bolt Rdhd Sqnk 1/4-2 x 1-1/2
17-49 Spacer
37-40 Spring Cprsn
39-76 Nut Lock 1/4 Lge Fig Gr. 5 Zinc
18-52 Bolt Shoulder 5/16-18 unc-2a BIk DA
05-00 Nut Hex LockW/Ins 5/16-18
19-12 Washer 17/32 x 13/16 x 12 Ga.
70-18 Bolt Shoulder 5/16-18 x 62
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
