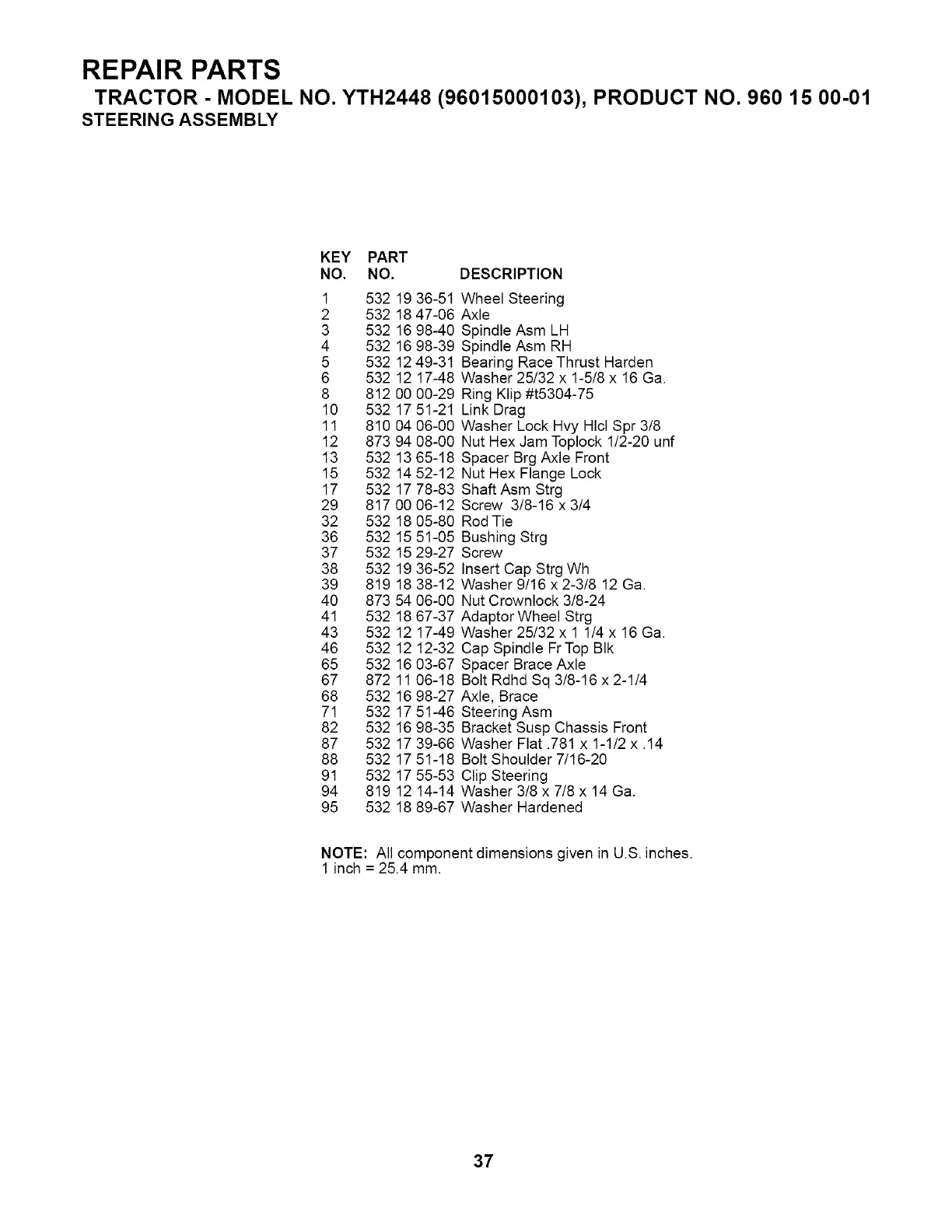

REPAIR PARTS
TRACTOR - MODEL NO. YTH2448 (96015000103), PRODUCT NO. 960 15 00-01
STEERING ASSEMBLY
KEY PART
NO. NO.
1 532 19 36-51
2 532 18 47-06
3 532 16 98-40
4 532 16 98-39
5 532 12 49-31
6 532 12 t7-48
8 812 00 00-29
10 532 17 5t-21
11 810 04 06-00
12 873 94 08-00
13 532 13 65-18
15 532 14 52-12
17 532 17 78-83
29 817 00 06-12
32 532 18 05-80
36 532 15 51-05
37 532 15 29-27
38 532 t9 36-52
39 819 18 38-12
40 873 54 06-00
41 532 18 67-37
43 532 12 17-49
46 532 12 12-32
65 532 16 03-67
67 872 11 06-18
68 532 16 98-27
71 532 17 51-46
82 532 16 98-35
87 532 17 39-66
88 532 17 51-18
91 532 17 55-53
94 819 12 14-14
95 532 18 89-67
DESCRIPTION
Wheel Steering
Axle
Spindle Asm LH
Spindle Asm RH
Bearing Race Thrust Harden
Washer 25/32 x 1-5/8 x 16 Ga.
Ring Klip #t5304-75
Link Drag
Washer Lock Hvy Hlcl Spr 3/8
Nut Hex Jam Toplock 1/2-20 unf
Spacer Brg Axle Front
Nut Hex Flange Lock
Shaft Asm Strg
Screw 3/8-16 x 3/4
Rod Tie
Bushing Strg
Screw
Insert Cap Strg Wh
Washer 9/16 x 2-3/8 12 Ga.
Nut Crownlock 3/8-24
Adaptor Wheel Strg
Washer 25/32 x 1 1/4 x 16 Ga.
Cap Spindle Fr Top BIk
Spacer Brace Axle
Bolt Rdhd Sq 3/8-16 x 2-1/4
Axle, Brace
Steering Asm
Bracket Susp Chassis Front
Washer Flat .781 x 1-1/2 x .14
Bolt Shoulder 7/16-20
Clip Steering
Washer 3/8 x 7/8 x 14 Ga.
Washer Hardened
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
