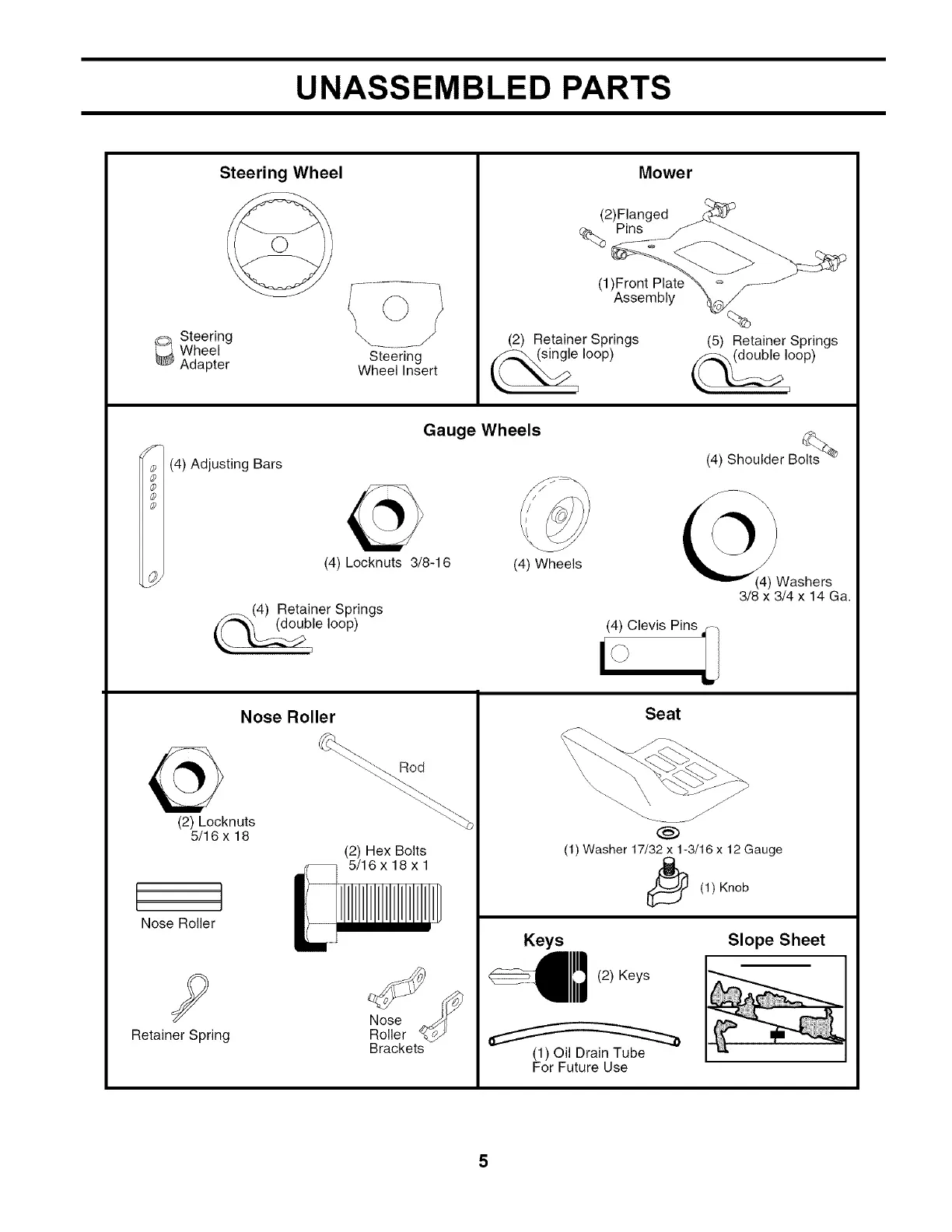

UNASSEMBLED PARTS
Steering Wheel Mower
_ teering
Wheel
Adapter
O
Steering
Wheel Insert
(2)Flanged
Pins j,
(1)Front Plate
Assembly
(2) Retainer Springs
(5) Retainer Springs
o (4) Adjusting Bars
O
O
O
O
Gauge Wheels
(4) Locknuts 3/8-16
4) etainer Springs
(double loop)
(4) Shoulder Bolt's_
(4) Wheels
(4) Washers
3/8 x 3/4 x 14 Ga.
(4) Clevis Pins
(2) Locknuts
5/16 x 18
Nose Roller
(2) Hex Bolts
5/16x18x1
I I
Nose Roller
Retainer Spring
Nose
Roller
Brackets
Seat
\ /
@
(1) Washer 17/32 x 1-3/16 x 12 Gauge
_ (1) Knob
Keys Slope Sheet
(2) Keys
(1) Oil Drain Tube
For Future Use
