Husqvarna YTH24V48LS - Tractor Component Diagrams and Parts Lists; Decals, Wheels & Tires Identification

28
TRACTOR - MODEL NO. YTH24V48LS (96043009800), PRODUCT NO. 960 43 00-98

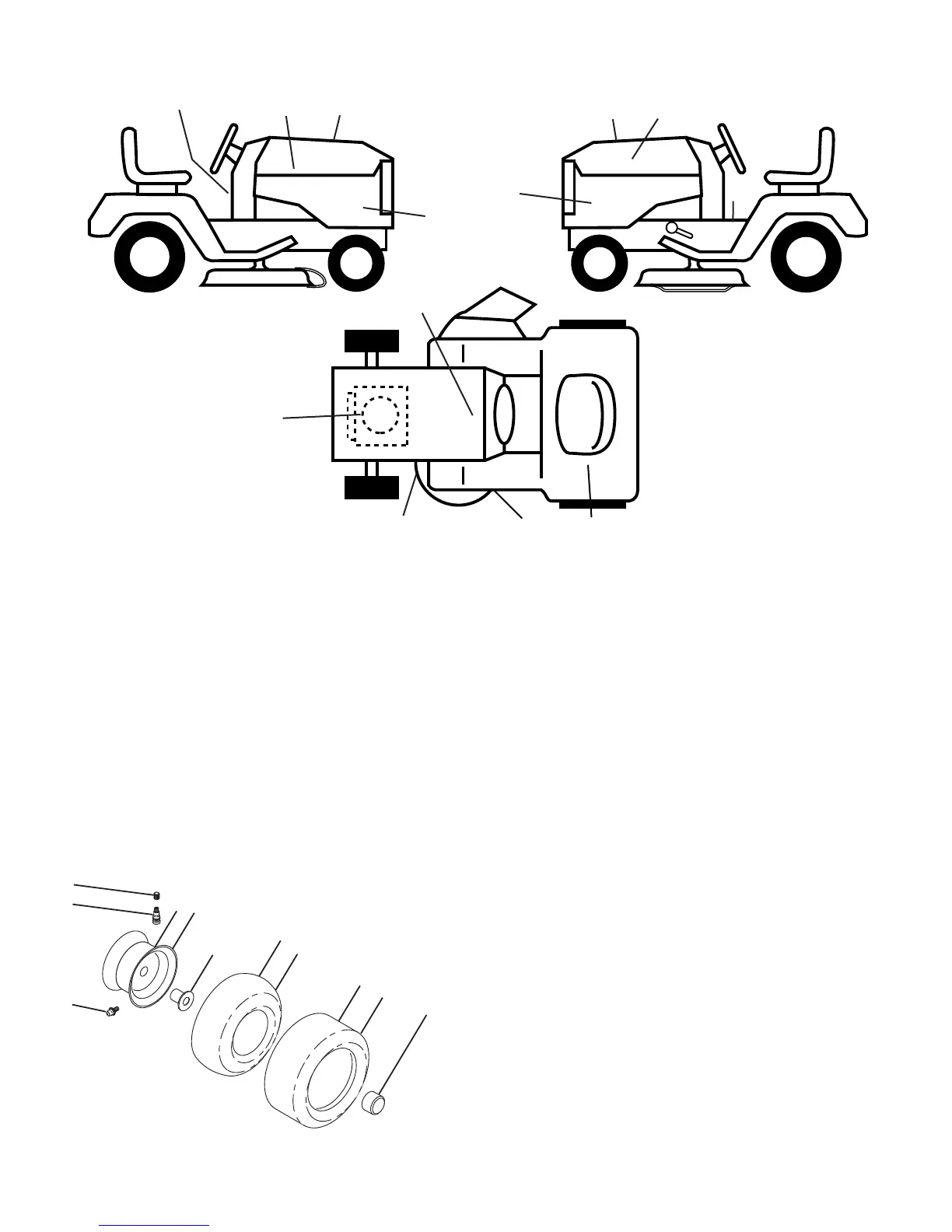

DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-vgt
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap, Valve, Tire
2 532 06 51-39 Stem, Valve
3 532 13 83-36 Rim Assembly, Front
4 532 05 99-04 Tube, Front (Ser vice Item Only)
5 532 17 04-55 Tire, Front
6 532 12 49-57 Fitting, Grease (Front Wheel Only)
7 532 12 49-59 Bearing, Flange (Front Wheel Only)
8 532 17 50-39 Cap, Axle (Front Wheel Only)
9 532 17 04-56 Tire, Rear
10 532 12 49-26 Tube, Rear (Service Item Only)
11 532 13 83-37 Rim Assembly, Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
1 532 41 16-58 Decal, Warning
2 532 42 62-09 Decal, Warn Reserve Fuel
4 532 42 41-02 Decal Warning Spark Arrestor
5 532 17 84-55 Decal, Caution
6 532 43 29-16 Decal, Eng.
8 532 19 87-85 Decal, Mower Sch.
9 532 14 50-05 Decal, Battery Dnge/Poi
14 532 43 27-39 Decal, Panel Side
15 532 42 38-29 Decal, Cust. Resp.
16 532 42 91-96 Decal, Hood Logo
17 532 43 27-22 Decal, Replacement
- - 532 16 69-60 Decal, Bypass
- - 532 40 17-71 Pad, Footrest, LH
- - 532 40 37-73 Pad, Footrest, RH
17
16
16
14
8
2
1
14
9
6
4
5
15
