Hussmann RL - Gasket Application for RLNI; Apply Donut Gasket to Left End

6
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Reach-in Joining Instructions
P/N 0387177_K
5
Apply Donut Gasket– 1 in recess around both
left end as shown in Figure 5A, Part 1; 5B or
5C, Part 1, and right end frames as shown in
Figure 5A, Part 2; 5B or 5C, Part 2.
Apply the wider Foam Tape Gasket — 2
around the right end frame as shown in Figure
5A, Part 2, 5B or 5C, Part 2.

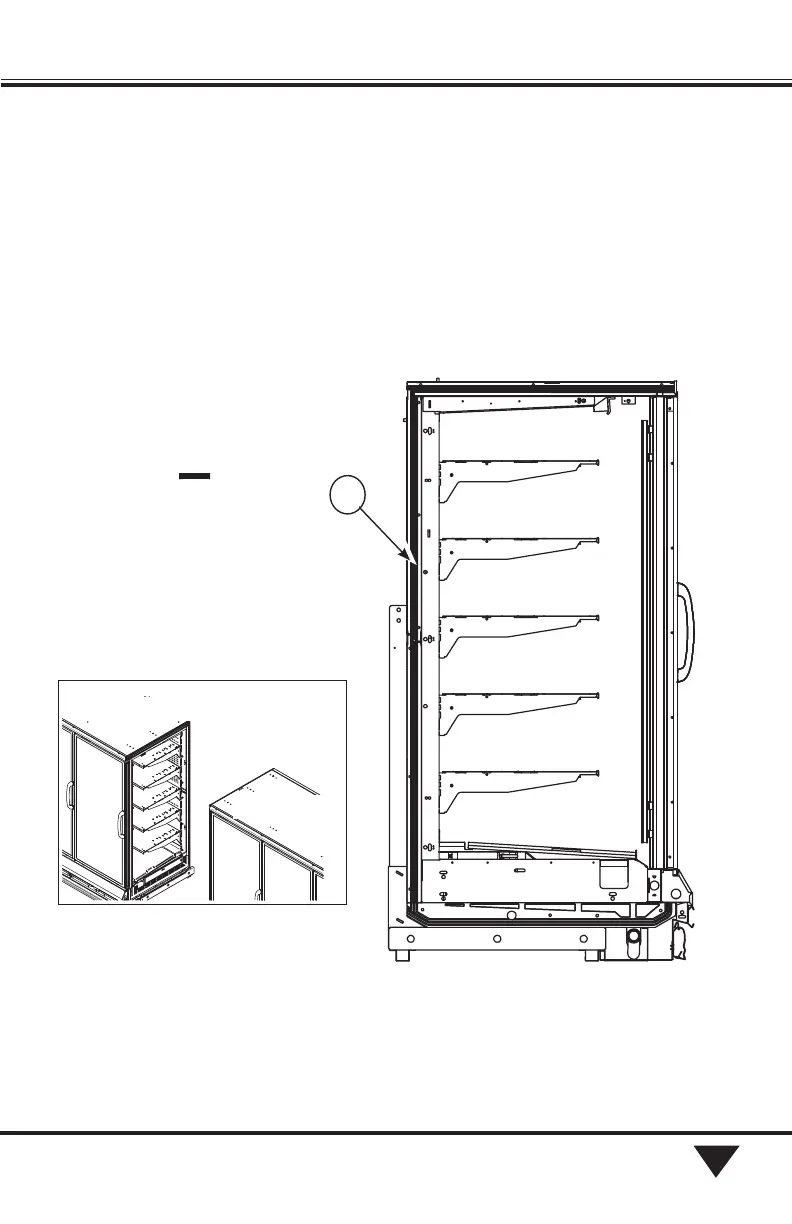

Figure 5A, Part 1. Apply Gasket to Left End of
RL/RM/RMF and RLN/RMN
RL / RM / RMF
and
RLN / RMN
F
R
O
N
T
Right End
Left End
F
R
O
N
T
PadShoeSealer
1- Donut
2- 1 in x
in
3- in x in
Use all three gaskets
When applying an end
assembly.
Left End Case
F
R
O
N
T
Right End
Left End
F
R
O
N
T
PadShoeSealer
1- Donut
2- 1 in x
in
3-
in x in
Use all three gaskets
When applying an end
assembly.
Left End Case
Right End Case
F
R
O
N
T
Right End
Left End
F
R
O
N
T
PadShoeSealer
1- Donut
2- 1 in x
in
3-
in x in
Use all three gaskets
When applying an end
assembly.
1
