Hussmann RL - Page 5

Reach-in Rectangular Solid
and Contour Glass Ends
P/N 0387152_H
5
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

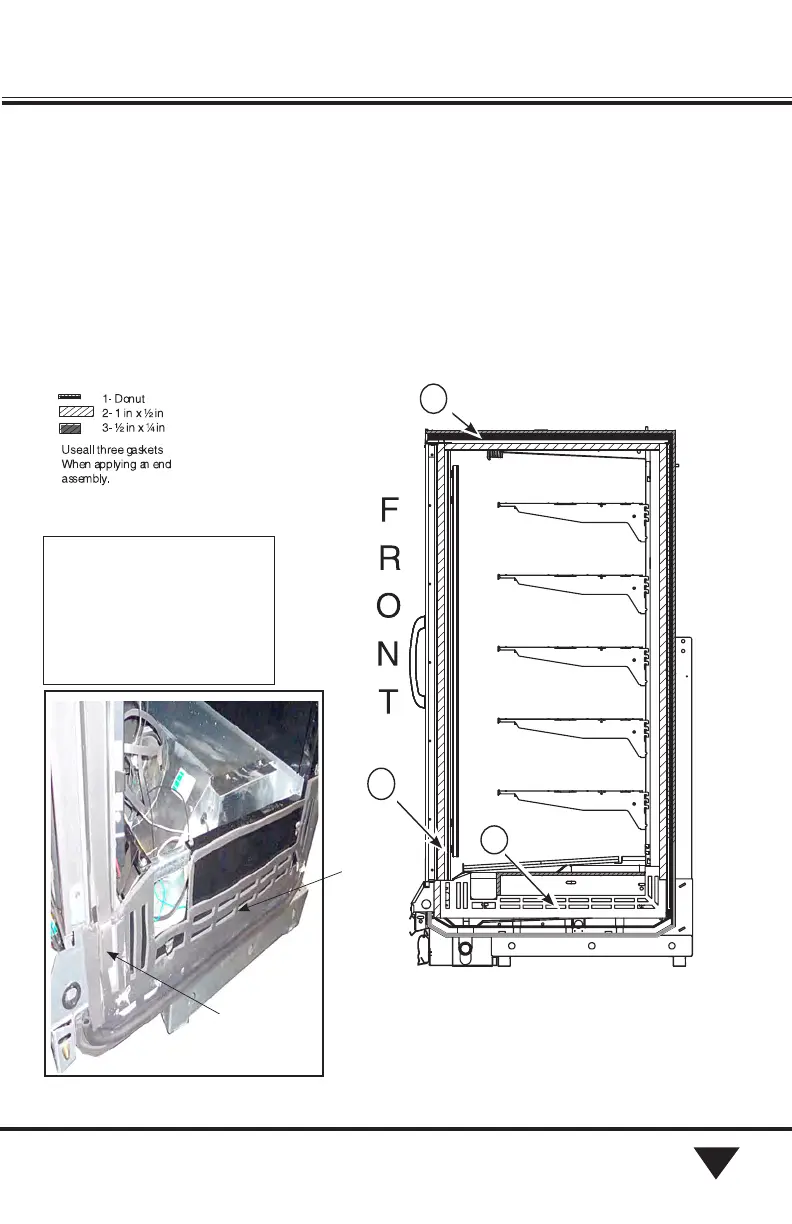

Figure 5B, Part 2. Apply Gaskets to Right End of RL/RM/RMF and RLN/RMN
Notes:
1. The perimeter gasket,
Item 3, is required byNSF.
2. Butyl is NOT an acceptable
substitute for donut or foam
gasket.
2
3
Overlap
Gasket
Apply Pad Shoe Sealer first,
then apply the narrower Foam
Tape Gasket — 3 around the
perimeter of the right end frame
outside of the donut gasket as
shown in Figure 5A, Part 2, 5B
or 5C, Part 2.
• Lap gaskets at lower corners.
• Check that there are no gaps
between gasket and case.
• Do not stretch gasket,
especially around corners. To
make sharp corners, paper
backing can be torn without
removing from gasket.
• Do not butt gaskets; always lap
joints.
• Remove paper backing after
gasket is applied to keep gasket
free of debris.
• Gasket has high tack
adhesive and must be properly
placed the first time.
Right End Case
1
Pad Shoe
Sealer
RL / RM /
RMF
and
RLN / RMN
ALL MODELS: Apply
gasket between wipes.
