Hussmann RL - Apply Gaskets to Right End

Reach-in Rectangular Solid
and Contour Glass Ends
P/N 0387152_H
9
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Figure 5C, Part 1. Apply Gasket to Left End of RLT
Move the second merchandiser
against first, mating alignment
pins with corresponding holes.
Use care when pushing the cases
together.
RL / RM / RLN / RMN /
RLNI: Do not to cut wires
routed along the front bumper
retainer. See detail in Figure 6.
The RLT has no alignment pin
and the wireway is at the top
front.

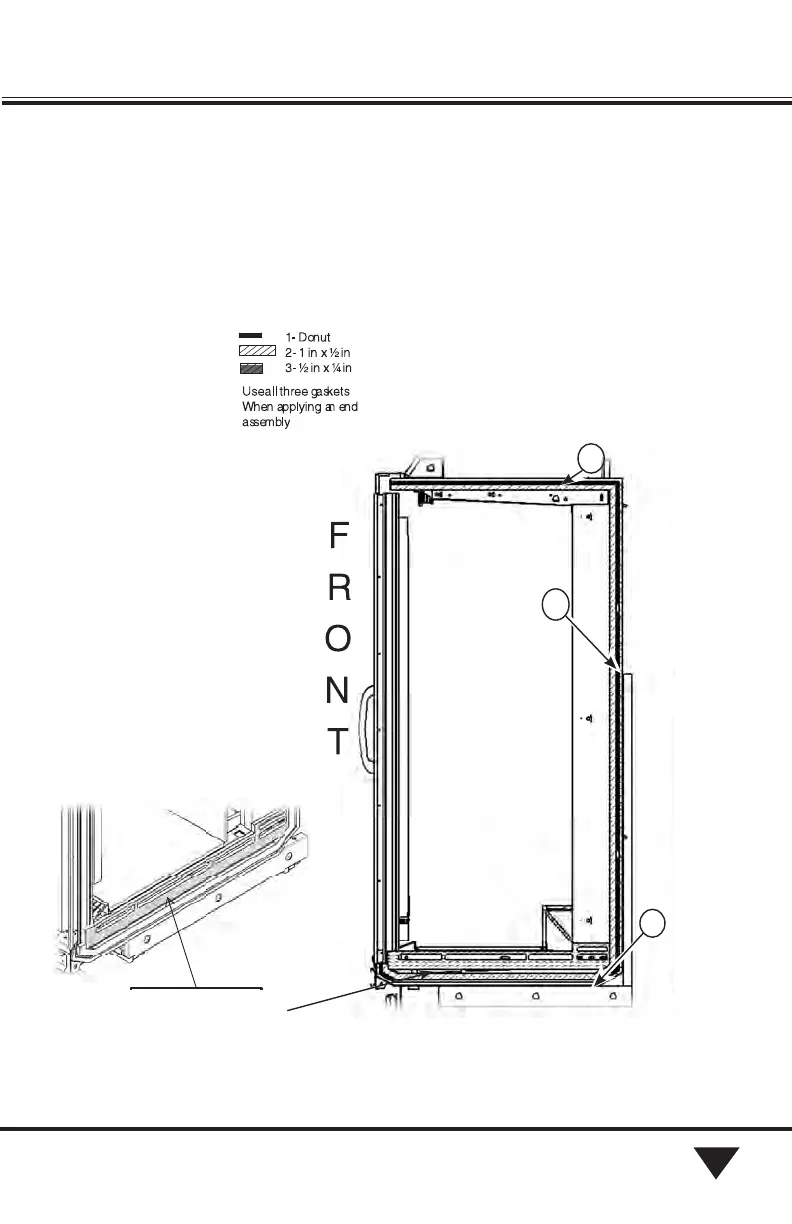

Figure 5C, Part 2. Apply Gasket to Right End of RLT
Right End Case
RLT
1
2
3
Apply Pad Shoe
Sealer
