P/N 0387152_H
10
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

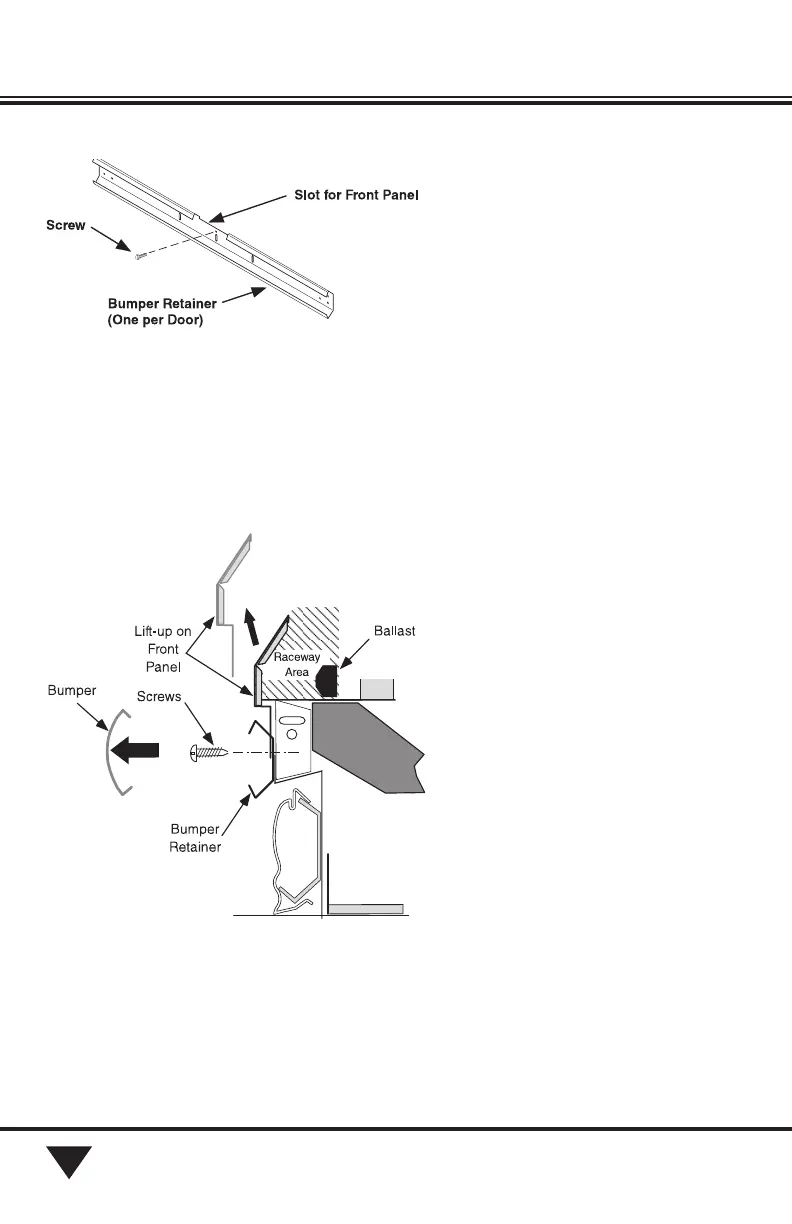

Bumper Retainer Detail
Figure 5. Exposing the Raceway
SOLID ENDS,
go to Step 11.
RLT Glass Ends,
go to Step 8.
3
Glass Ends Only
Glass end assemblies have anti-sweat
heaters. The heater wiring must be
connected to the terminal block in
the wireway. Gain access to the wireway
as follows:
A. Remove bumper if installed.
B. Remove screws from the center of each
bumper retainer and set aside: 2-door,
two screws,
3-door, three screws,
4-door, four screws, or
5-door, five screws. The retainers stay
on the merchandiser. Refer to detail in
Figure 5.
C. Lift the front panel up and out. Tabs on
the front panel must clear slots in bumper
retainers. See Figure 5. Terminal block is
now visible in the wireway.
Once end is installed and all wiring con-
nected, re install front panel and screws.
Refer to Section 1 of the Reach-In
Installation and Service Manual to
install bumpers.
To Next Page
