Reach-in Rectangular Solid
and Contour Glass Ends
P/N 0387152_H
11
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Install RLNI Glass End , go to
Step 5.
4
Fasten
Glass End Assembly — 5
to merchandiser using
Cap Screw — 6 as shown in
Figure 6.
As the end is being positioned,
route the wiring through the
opening into the wireway as
shown in the Detail.
After end assembly has been
tightened, insert Plug — 7
and Button — 8 as shown in
Figure 6.
Go to Step 7.
DETAIL:
Route Wiring into Raceway

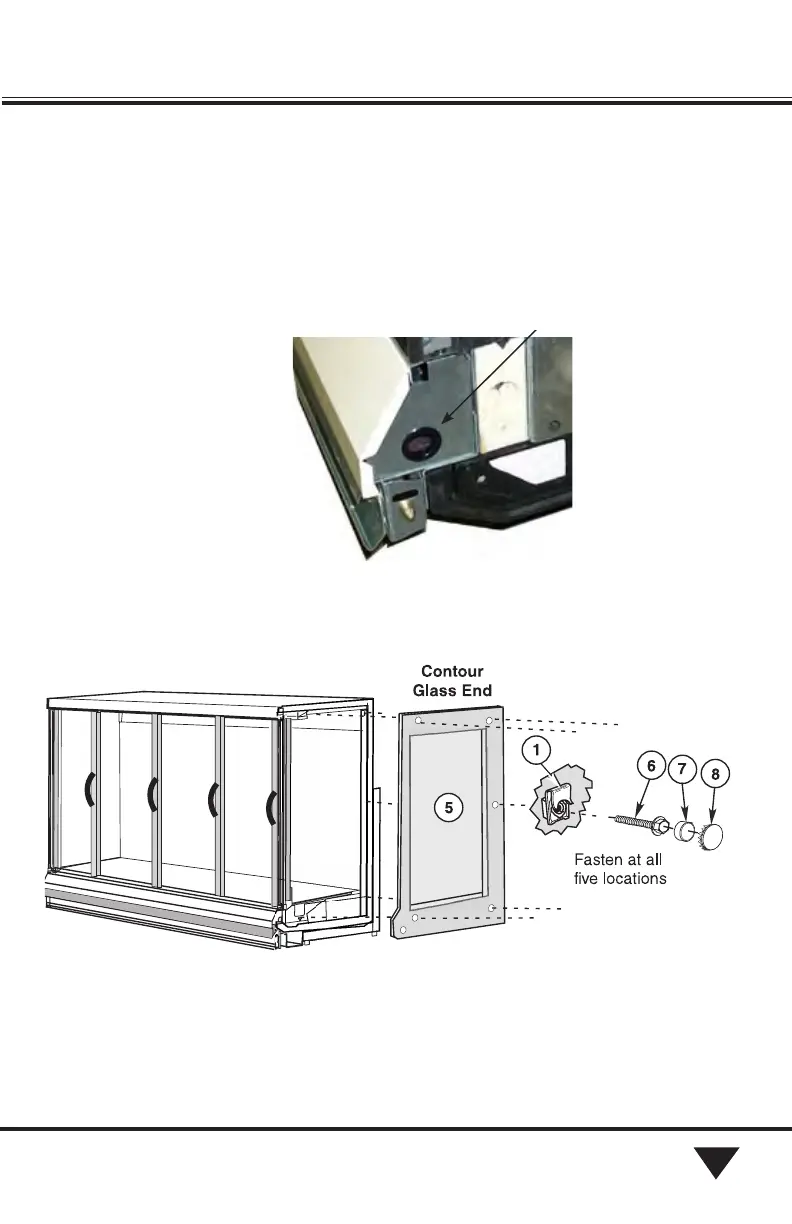

Figure 6. Install Glass End Assembly
Route anti-sweat heater
wiring from each end panel
through grommet into race-
way.
For RLNI, route each side
separately, DO NOT damage
wiring
