Hussmann RL - Install RLNI Left Side Glass End; Attach Left Side Assembly

P/N 0387152_H
12
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
RLNI ONLY
5
The end panel for the Reach-
in Island ships in two pieces.
Attach the Left Side of Glass
End Assembly — 5 to the
merchandiser using
Cap Screw — 6.
As the end is being positioned,
route the wiring through the
opening into the left-hand
wireway as shown in the
detail.
After end assembly has been
tightened, insert Plug — 7
and Button — 8 as shown
in Figure 7.

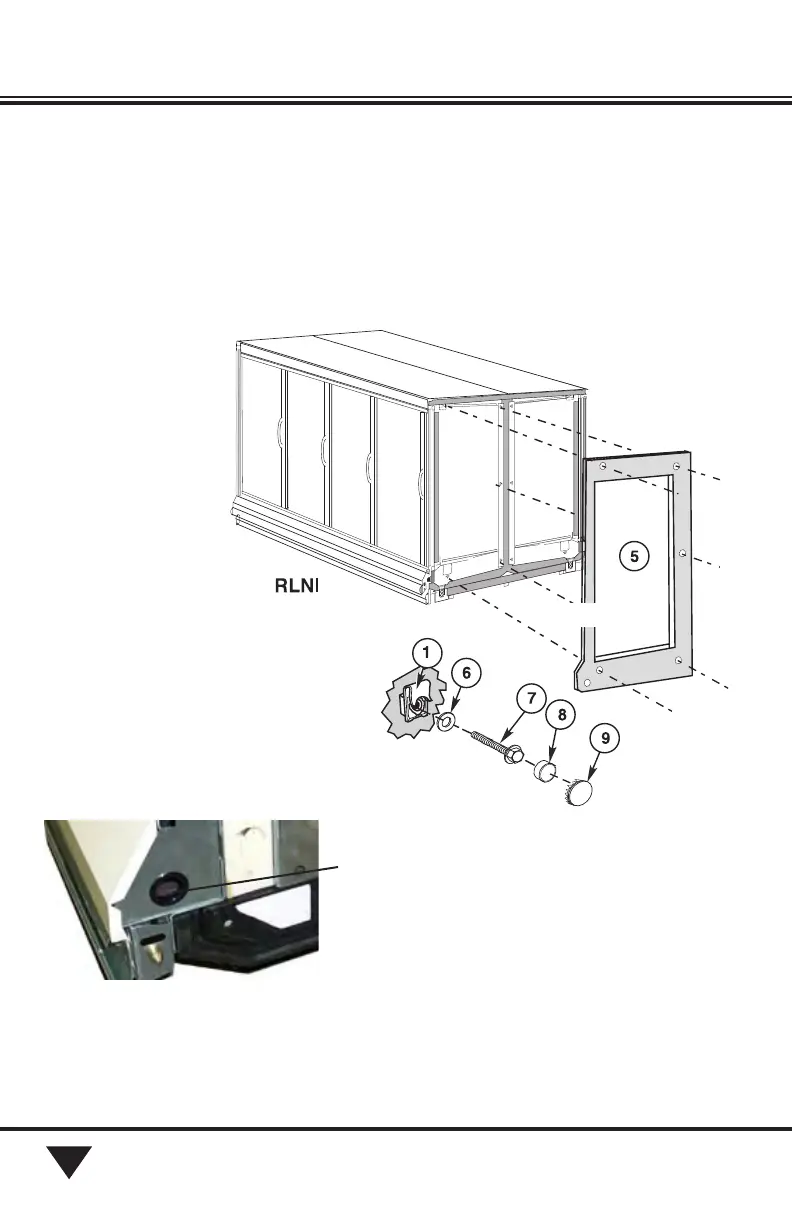

Figure 7. Install Left Side of Glass End Assembly on Island
Left Side
Route each side anti-sweat
heater wiring separately
from each panel through
grommet into raceway.
DO NOT damage wiring.
